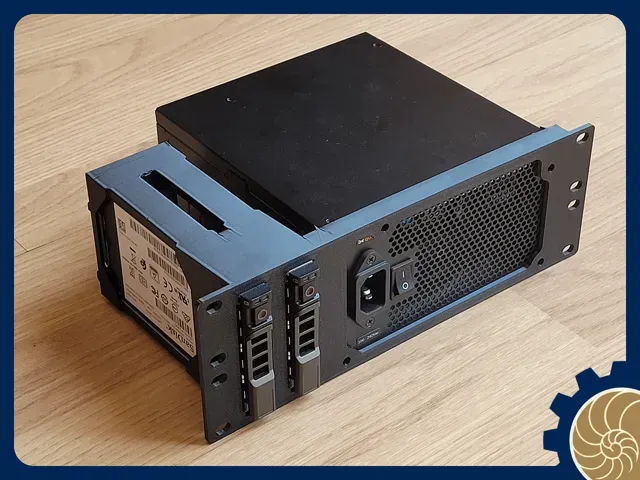

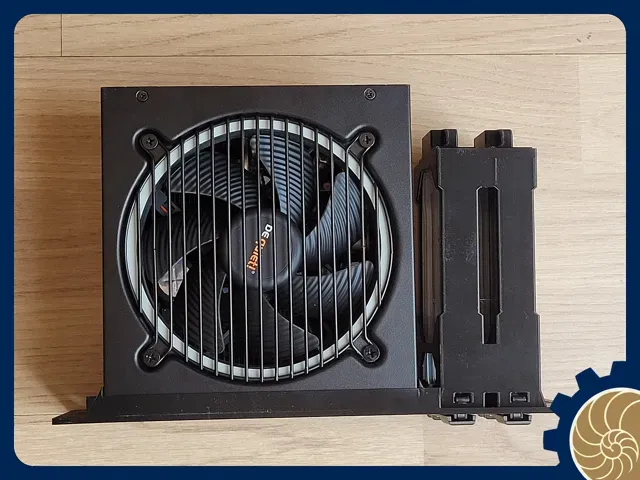

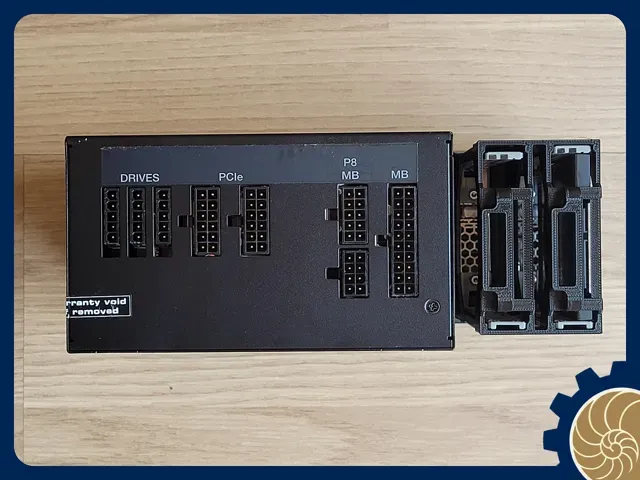

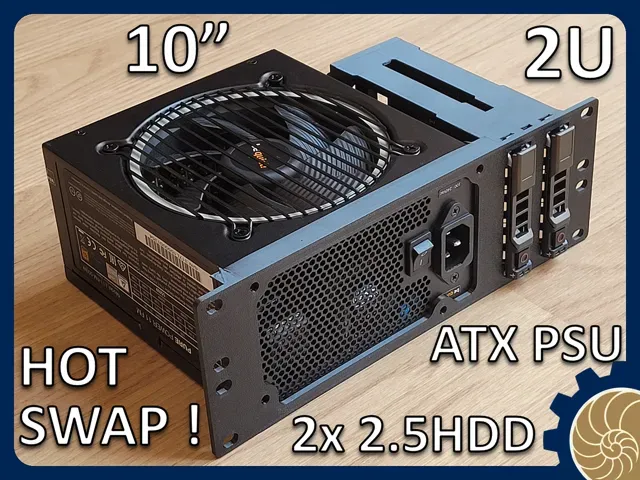

10 inch Rack 2U: ATX PSU + 2x 2.5" HDD

Design:

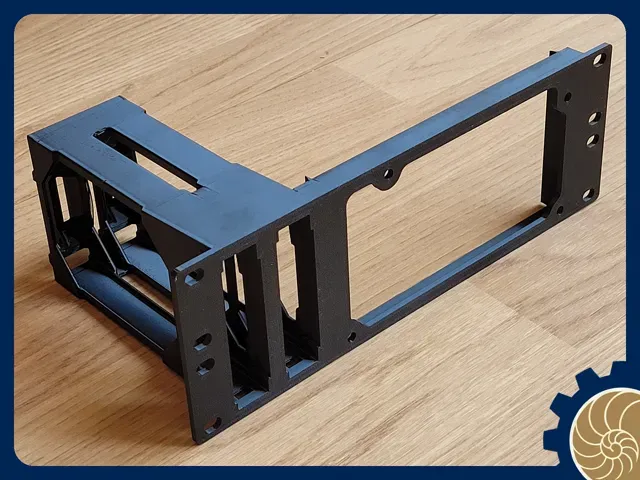

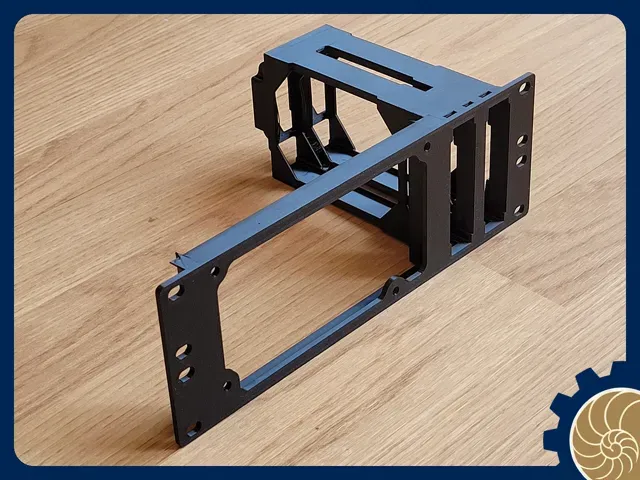

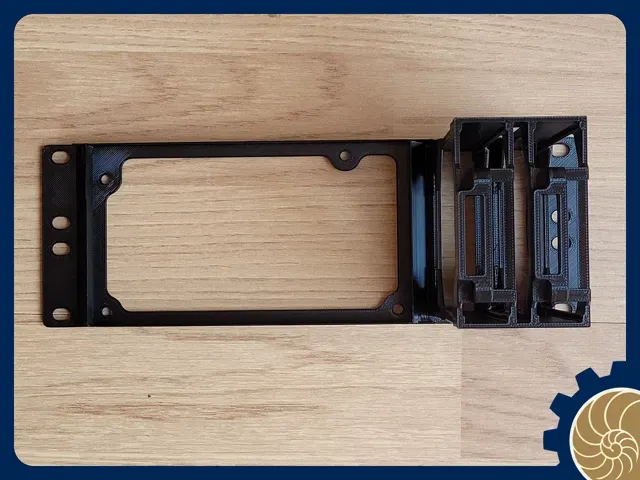

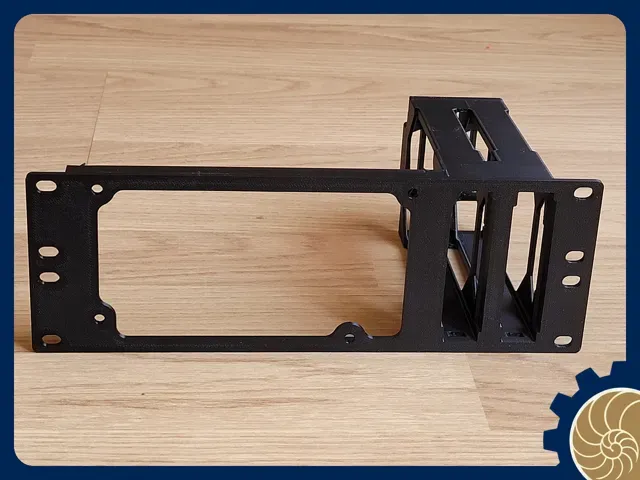

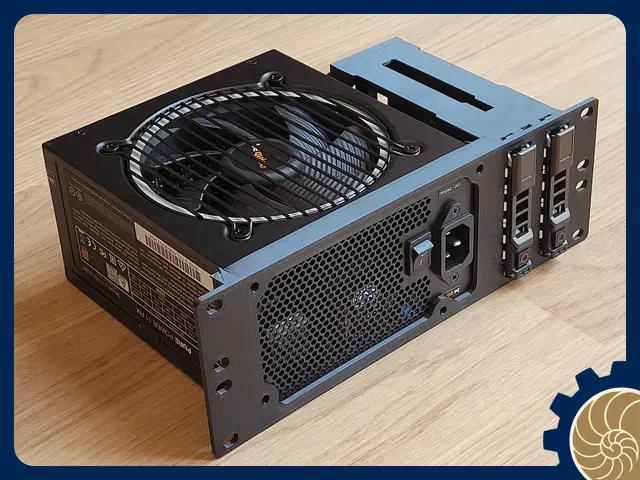

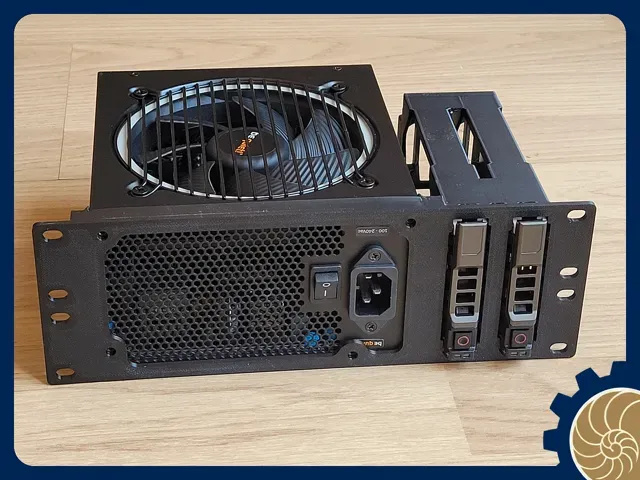

- 10" rack, 2U element for ATX PSU & 2x 2.5 HDD - ATX opening: 150mm x 86mm with 0.4mm additional tolerances - All 4 variations available, choose the one you want - HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld - maximum airflow - Following feedback the mounting of the SATA connector as been redesigned. I also added 2 Keystones on the side following a comment about it. Print:

- No support ! Print face down - Print profil optimised Other Material:

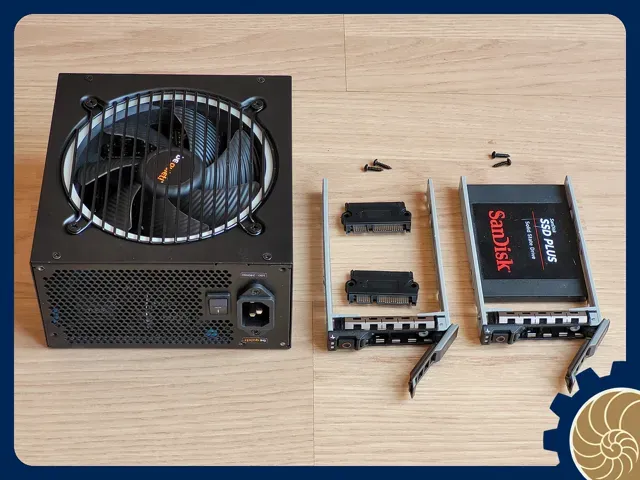

I use those dell-copy caddies from Aliexpress:

keywords:

- “NEW 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HARD DRIVE Bracket 8FKXC” - "2 PCS NEW 2Pcs/Lot 08FKXC 2.5'' SAS SATA Server Tray Caddy for Dell PowerEdge R730 R630 T640 T630 HDD Bracket Drawer 8FKXC G176J"

2pack tray sells for about 9eur:

- here in Aliexpress or - here in Aliexpress too  For the Hot swappable connection:

I used those:

keywords:  SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter

Currently 6eur for 5:

- Here on aliexpress Screws are listed in the BOM: - Self tapping HEX M3x12m button head, also easily available on aliexpress For the ATX, you know what to do! 150mm x 84mm with 0.4mm additional tolerances

Hope it helps !
