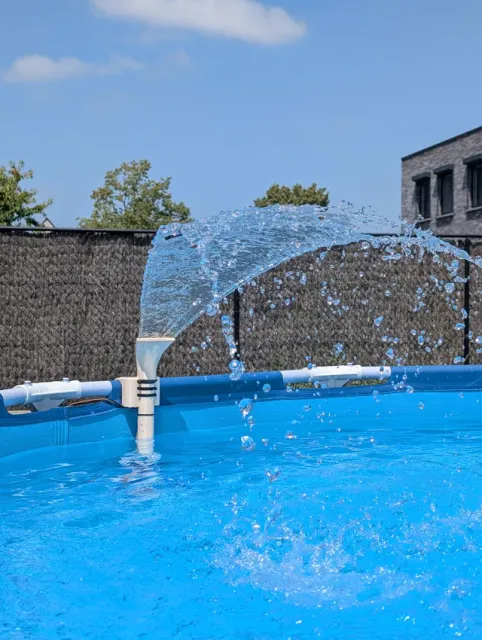

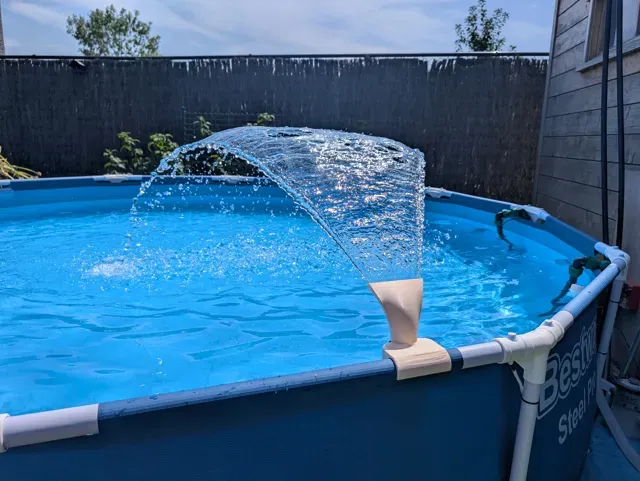

🌊 Clip-On Pool Fountain for Frame Pools

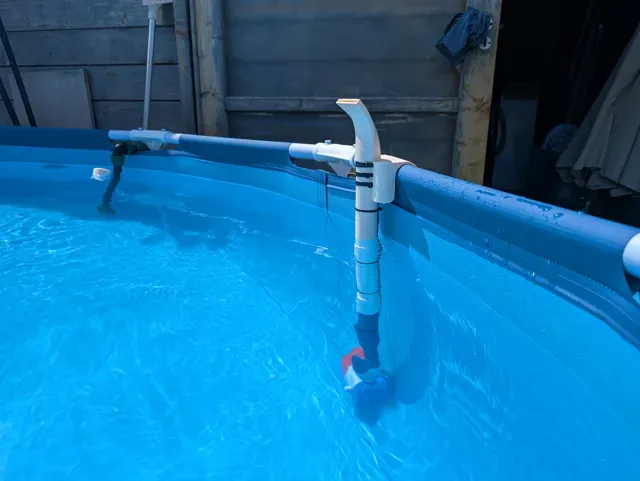

Upgrade your above-ground pool with this easy-to-print clip-on fountain! It attaches to a 32 mm frame tube , originally designed for Bestway pools. It should also fit many Intex Metal Frame pools, but please measure your top rail first, as Intex uses different tube sizes across models.

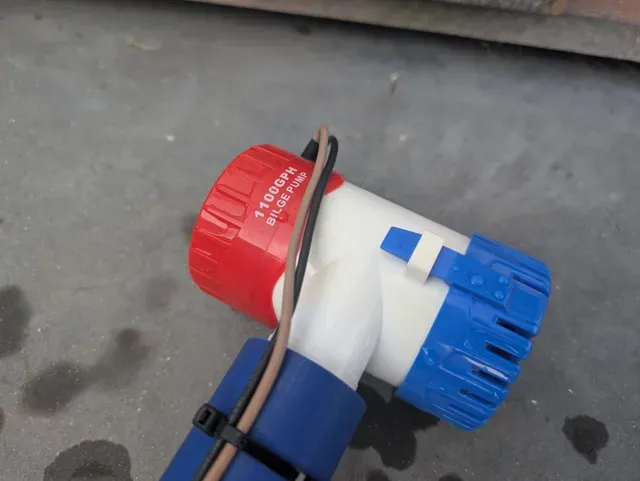

The fountain is powered by a 1100 GPH bilge pump (mine is from AliExpress ) and can be connected to a suitable DC power supply with a simple inline switch. I use a 24V setup , but be sure to match the power supply to your pump's voltage.

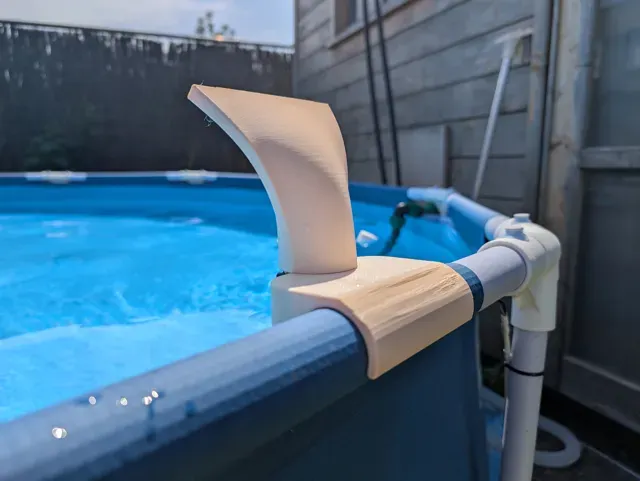

The nozzle is removable, making it easy to fit a pool cover or swap in your own custom nozzle designs.

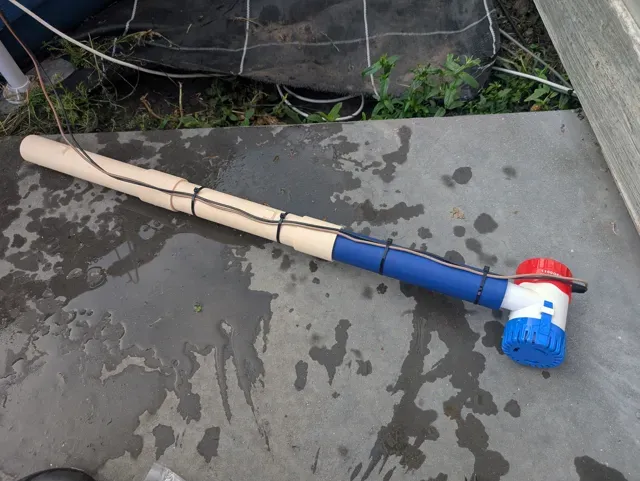

Also included in the 3MF file is an optional intake extension that lowers the pump further into the water. This helps reducing the chance of long hair being drawn into the pump. The pipe is connected with zip ties to the mount.

Parts Needed

- 1100 GPH Bilge Pump (AliExpress, Amazon, etc.) - Matching DC power supply - Inline on/off switch - Some wire and waterproof connectors Printing

For the best durability outdoors, print in PETG, ASA, or ABS .

⚠️ Safety: Always match the power supply to your pump, keep electrical connections dry, and never run the pump out of the water. The intake extension helps reduce the risk of hair being caught but does not eliminate it.

If you print one, I'd love to see your setup or any custom nozzle designs you create. Happy printing! 💦
