Ultimate Air Conditioner Flared Air Deflector

Ultimate Air Conditioner Flared Air Deflector

Control Your Room's Airflow !

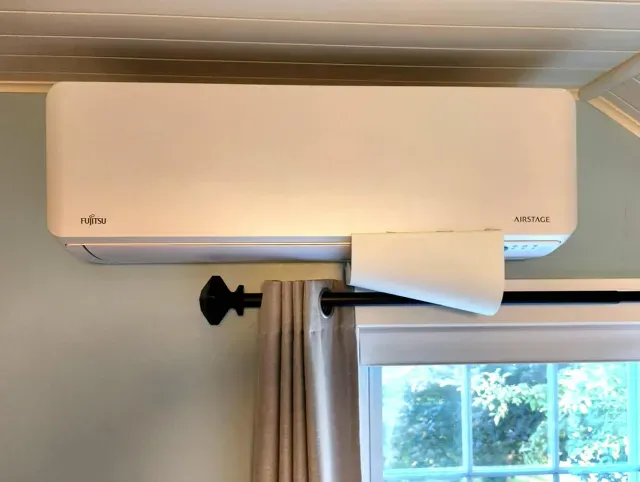

This modular deflecting system redirects HVAC airflow laterally, preventing direct thermal drafting on specific room areas or occupants.

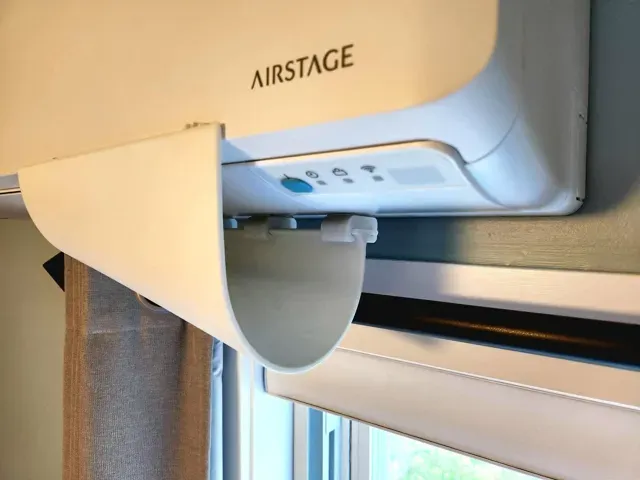

The design incorporates a mounting bracket system that permits the rapid detachment of the deflector when airflow redirection is not required.

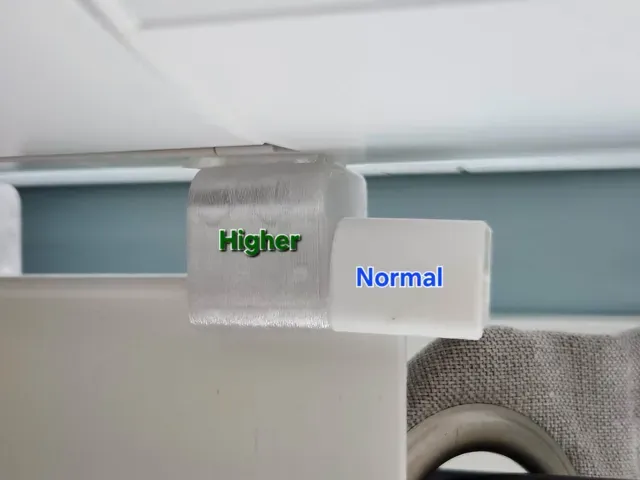

2026-07-23 : Added a higher bracket model (+10 mm) to give more adaptablility.

🌬️ Key Features

- Targeted Air Routing - Modular Architecture - Directional Options - Quick-Release Mechanism - Prints without support - End Cap to direct airflow - Test Template (look at the end of the description) Boost Me If this functional design improves your life, please consider giving the profile a boost! ⭐

🎯 Scaling

- Length Adjustment: Alter the Z-axis height within slicing software (such as Bambu Studio) to match the desired span for your AC unit. 🛠️ Installation Notes

- Mounting Strategy: Secure a minimum of two brackets to the underside of the unit utilizing high-quality double-sided tape. The total number of brackets required is directly dependent on the shear strength of the chosen adhesive. - Brackets Installation: Lightly sand the surfaces of the brackets, apply a double-sided tape to them and slide them onto the deflector. Test-fit the deflector under the AC to check your desired placement. Mark the exact placement on the AC unit (with Post-it or painter tape), peel off the tape's protective backing and stick the assembly firmly into place. - CRITICAL WARNING: DO NOT USE Alien Tape style of double-sided tape . Using it to hang objects upside down subjects the tape to constant gravity, creating a continuous peeling force. This steady weight slowly stretches the viscoelastic gel—replicating the exact parallel pulling motion used to safely remove the tape—causing it to inevitably lose its grip and fail over time. 🧩 Optional End Cap Module:

- Airflow Maximization: Designed to seal the narrow end of the deflector as tightly as possible. This forces a maximum volume of air through the flared opening, rising efficiency. - Customizable Clearance: Designed with an optimized wall thickness that is sturdy enough and permits physical modification. Users can manually trim or notch the cap to create custom relief profiles, ensuring it does not obstruct the specific sweep of the AC unit's moving mechanical louvers. - Assembly Protocol: After trimming the cap to the required operational dimensions, permanently bond it to the narrow terminal of the main deflector utilizing Cyanoacrylate (CA / super glue) adhesive. 💡 Material Recommendations

- PLA: Strictly recommended for cooling-only applications. - PETG: Mandatory if the HVAC unit will be utilized for thermal heating (winter mode), as it possesses the necessary thermal resistance to prevent structural warping. - Double-sided tape: NO Alien Tape!!! 📦 Pro Tips

- Have the AC running and check if it has horizontal louvers to help redirect the air to the left or right. - Execute a test fit with the template before committing filament to the full-scale deflector. - Distribute the brackets evenly across the span of the unit to balance the load on the adhesive. 🧠 Design Rationale

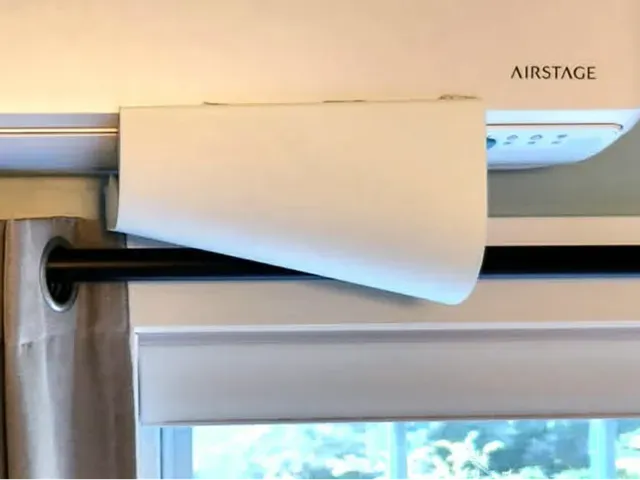

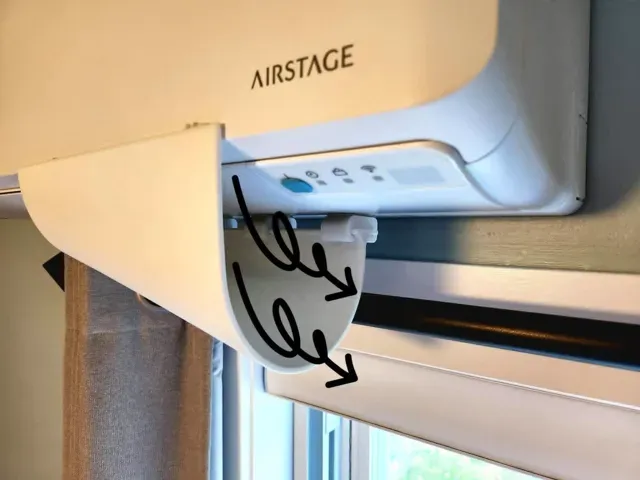

- Aerodynamic Efficiency - Why does a curved geometry outperform a conventional flat plane? A standard straight angle acts as an abrupt mechanical barrier, whereas a flared profile provides a streamlined transitional ramp for the conditioned air mass. - Mitigation of Turbulent Flow - Flat Deflectors: High-velocity air colliding with a rigid, flat angle induces severe flow separation and chaotic turbulence. This collision generates acoustic disruption (wind noise) and drastically limits overall air output speed. - Flared Deflectors: The continuous curvature allows the air to glide cleanly along the surface. Maintaining this streamlined flow translates to significantly quieter operation and preserves output velocity. - Reduction of Mechanical Strain (Backpressure): - Flat Deflectors: Impacting a flat surface generates significant aerodynamic backpressure. This resistance forces the HVAC blower motor to work harder, increasing energy consumption and mechanical wear just to clear the exhaust port. - Flared Deflectors: A curved path offers minimal aerodynamic resistance. By providing a highly efficient exhaust route, the internal fan operates without artificial strain, preserving the mechanical integrity of the air conditioning unit. 📐 Test Template & Calibration Protocol:

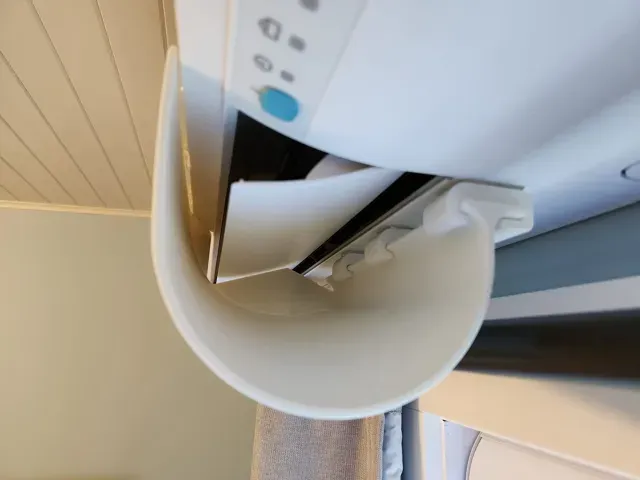

- Uncheck the “uniform scale” before scaling anyting in the slicer. - Profile Test Template: It is heavily recommended to print the test template first to execute a test fit and verify clearance for the unit's moving mechanical louvers (flaps). - X/Y Axis Tuning: If the standard profile interferes with AC operation or fitment, uncheck the “uniform scale” and change scaling on the X and Y axes of the template until optimal clearance is achieved. Record the final scaling percentages and apply them to the primary deflector and bracket models before the final print.
