ANCIENT GREEK PARAMETRIC PHOTO FRAME

Boost Me Enjoying the customizable Greek frame? 🏛️ A Boost would really help support more parametric models like this one. Thank you! 🙌 Parametric Greek Meander Photo Frame - Custom Name

Fully parametric ancient-Greek photo frame with a meander (Greek key) border and YOUR name in a Greek-style font on the plate. Any photo size, one- or two-color printing, no supports. Includes wall keyhole + table stand cradle.

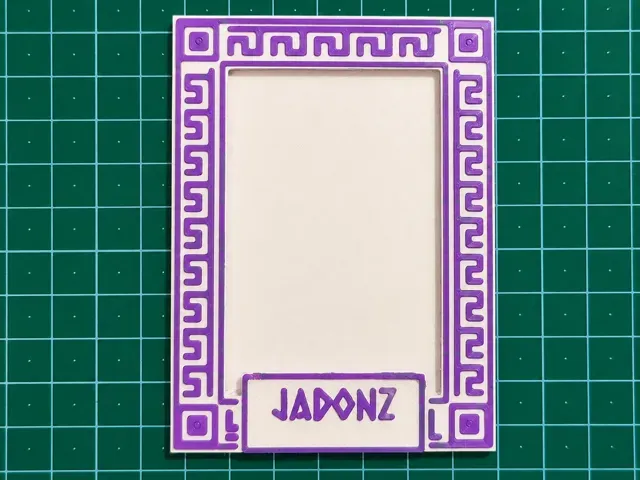

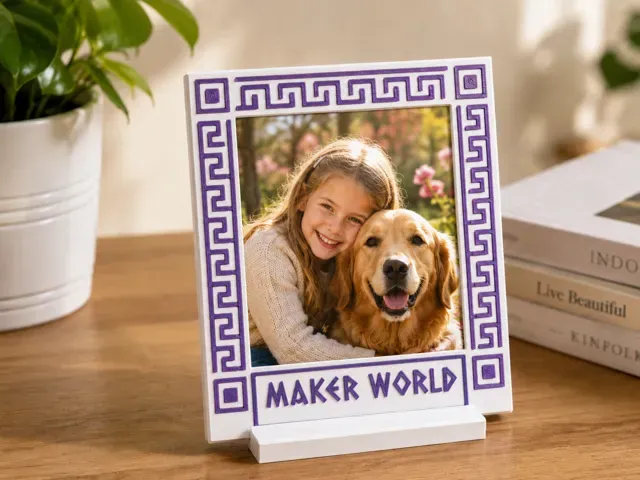

Personalize a classic! This frame wraps your photo in an authentic Greek meander (key) border with corner motifs, and puts a name of your choice on the plate in the Greek-style "Caesar Dressing" font. The plate automatically resizes to fit any name.

Click CUSTOMIZE to set:

- Name (plate auto-sizes; leave empty for no plate) - Photo size — any size, default 10×15 cm (4×6"); swap width/height for landscape - Border width — the meander pattern scales with it - Raised (embossed) or engraved decoration - One color or two colors, frame & decoration color pickers - Table stand cradle, lean-back angle Printing (no bridges!):

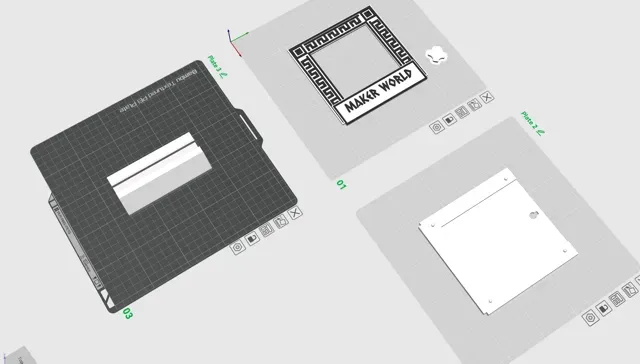

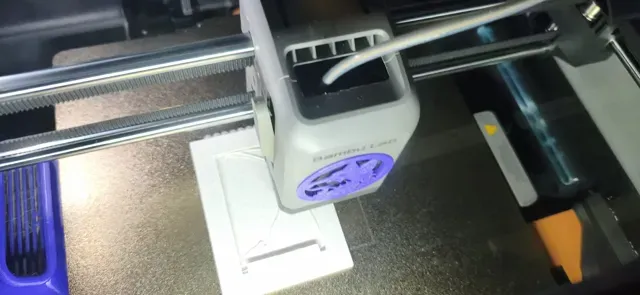

- The frame comes as TWO parts that snap together with corner pins — no bridges at all. The front is a fully flat decorated plate (only shallow pin holes underneath); the back carries the photo channel, keyhole and pins. Everything generates already laid out in print orientation. - 2 colors on a single extruder: add a filament change where the decoration layers start (default 2.8 mm). AMS users: use the front + deco parts, they are pre-aligned. - Recommended: 0.20 mm High Quality, Wall generator = Arachne , sparse infill 10 % , print sequence By Object on shared plates. For the 4 pin holes on the front's underside: Auto Tree (Slim) supports, top Z distance 0.265, top interface layers 3 — or none, small holes bridge fine. Features:

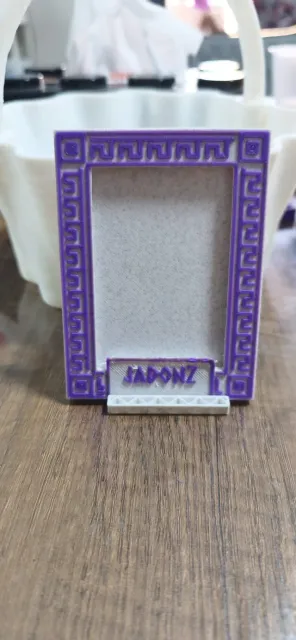

- Photo slides in from the top, held behind a lip — no glass, no tape - Flat teardrop keyhole on the back: hangs on a nail, head hides inside, frame sits flush on the wall - Drop the frame into the wedge cradle for desk/table display; the name plate bottom is level with the body so it sits solid or can be adjustable. - "Bottom padding" parameter keeps the name visible above the cradle wall Font: Caesar Dressing © Open Window (SIL Open Font License) — built into MakerWorld, nothing to install.
