CIRCULAR LEATHER CUTTER ALL SIZES

CIRCULAR LEATHER CUTTER ALL SIZES - 3D PRINTABLE FILES

THIS TOOL IS DESIGN TO CUT CIRCLES OUT OF LEATHER. IT IS EASY TO PUT TOGETHER BUT I´M LEAVING A STEP BY STEP SO EVERYONE GETS IT RIGHT.

BESIDES THE PRINTED PARTS YOU WILL NEED:

A CUTTER BLADE (PICTURE FOR REFFERENCE)

1 M3 SCREW 5mm.

1  M3 SCREW 10mm.

STEPS:

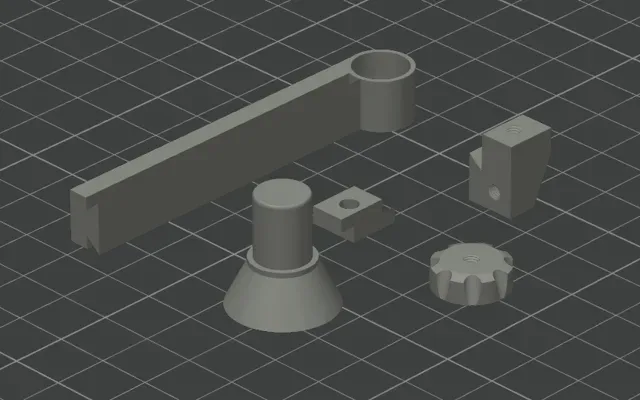

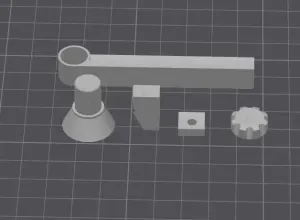

ONCE YOU HAVE EVERYTHING PRINTED, THE 2 M3 SCREWS AND THE PIECE OF BLADE, THIS IS WHAT IT WILL LOOK LIKE. ADD THE CC-NUT TO THE LONGER M3 SCREW.

ADD THE PIECE OF BLADE IN THE SLOT AT THE BOTTOM OF CC-SLIDER2 AND ADJUST IT WITH THE SHORT M3 SCREW.

ADD THE SMALL CC-SLIDER1 TO THE LONG SCREW WITH AND SCREW UNTIL IT STOPS SCREWING TO CC-SLIDER1. NOW YOU WILL HAVE THE SLIDER COMPLETE.

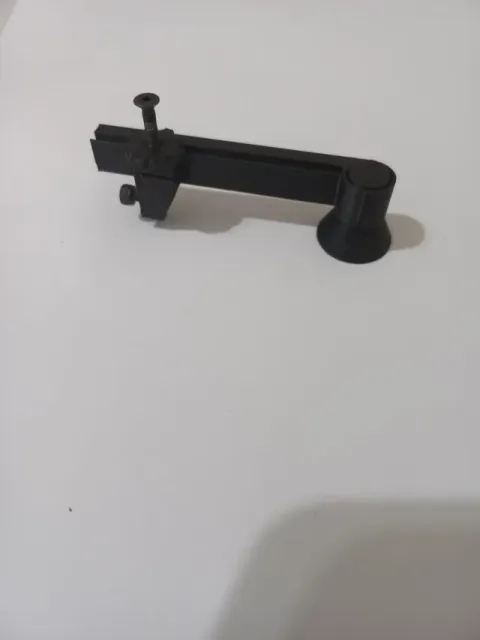

SLIDE THE SLIDER ON TO THE GUIDE. WITH THE NUT YOU CAN LOCK IT AT THE SIZE WANTED.

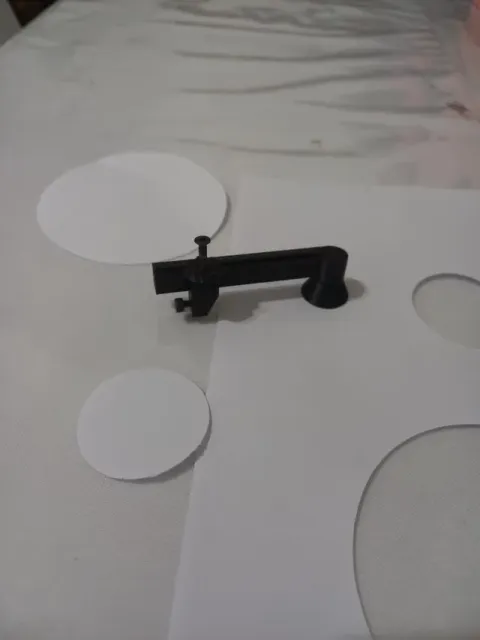

YOU NOW HAVE A CIRCULAR CUTTER COMPLETED. REMEMBER IF YOU ARE CUTTING HARD SURFACES TO CHANGE THE BLADE EVERY NOW AND THEN
