Carlinkit Mini 3.0 Vented Air Vent Mount

Title: Carlinkit AeroCradle - Hyper-Vented Air Vent Mount

Description:

Keep your wireless CarPlay/Android Auto dongle cool and secure!

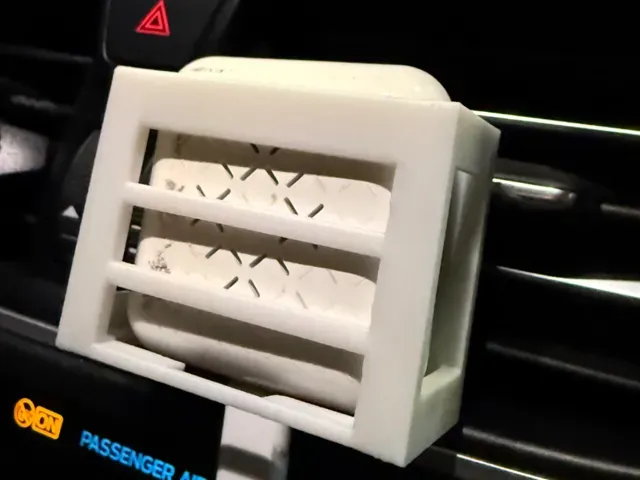

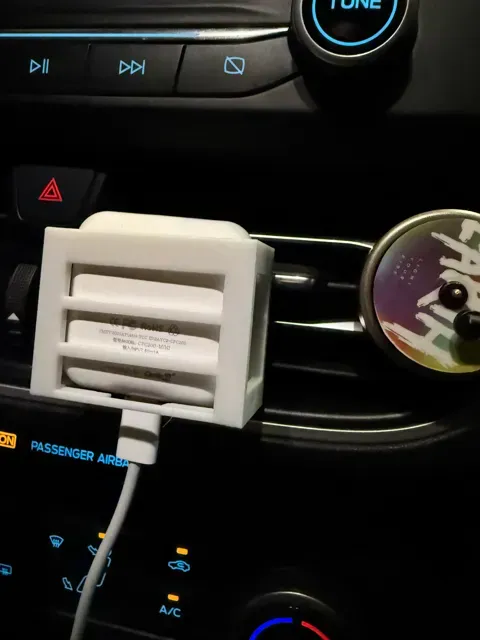

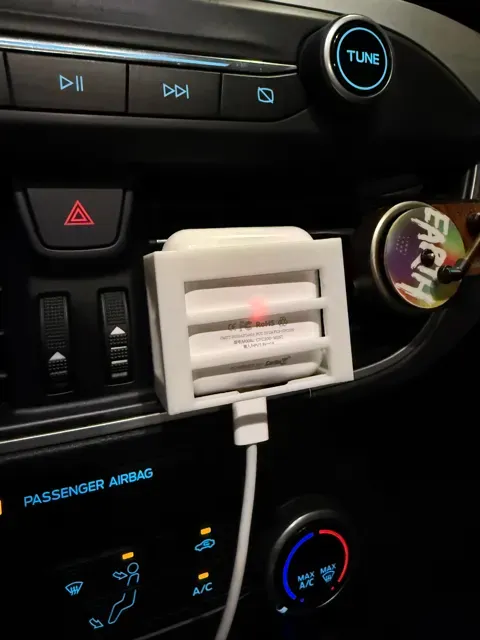

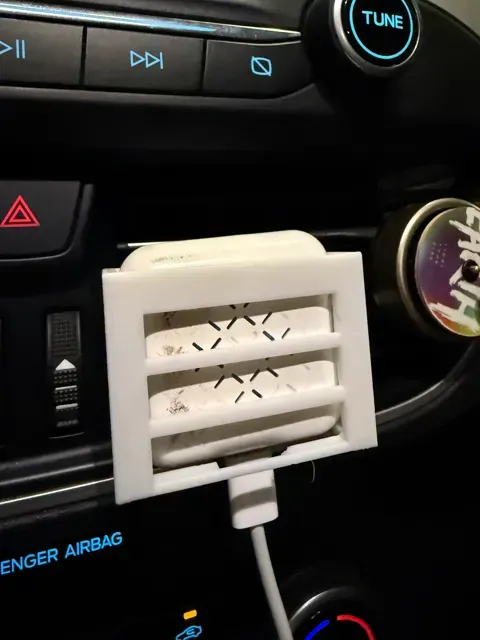

Wireless dongles like the Carlinkit are notoriously prone to overheating, especially during long drives or summer days, which can lead to connection drops. The Carlinkit AeroCradle is designed to solve this problem. It features a hyper-ventilated "cage" design that exposes the device directly to the AC airflow from your car's vents, maximizing cooling while holding it firmly in place.

📏 Compatibility & Dimensions Custom-designed to fit the most popular square Carlinkit modules.

- Maximum Device Size: 46 x 45 x 16 mm (Width x Height x Thickness). - Note: The cradle is 40mm tall, meaning a 45mm device will perfectly protrude by 5mm at the top, making it super easy to grab and remove if needed. ✨ Key Features

- 🌬️ Maximum Airflow: The front, back, and sides feature large mesh windows. The back is completely open to let the cold AC air hit the dongle directly. - 🧩 Modular Dovetail Joint: Designed in two separate pieces (Cradle + Clip) that slide together with a precise dovetail joint. No glue required! - 🔌 Cable Management: The bottom frame is completely open in the center to easily accommodate even thick USB-C cables. - 💪 Structural Strength: By splitting the model into two pieces, you can print the air vent clip laying flat on its side. This makes the clip's prongs extremely flexible and almost impossible to snap along the layer lines. 🖨️ Recommended Print Settings (CRITICAL FOR CAR ACCESSORIES) Since car interiors can easily exceed 65°C/150°F during the summer, DO NOT USE PLA . It will melt and warp in a matter of days.

- Material: ASA or ABS (Highly recommended for UV and heat resistance). PETG is an acceptable alternative for milder climates.

Happy printing and enjoy your stable, cool, wireless connection!
