Universal SUP Can / Bottle Holder

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
STEP
  • 12 Лайки
  • 21 Загрузки
  • 15 Напечатали
  • 41 В подборках
  • 0 Бусты
  • 5 Комментарии
  • 0 Просмотры

Автор:mKn

Опубликована

Описание

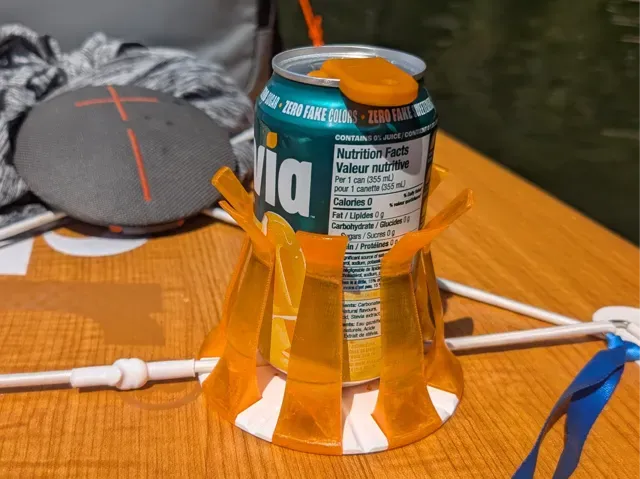

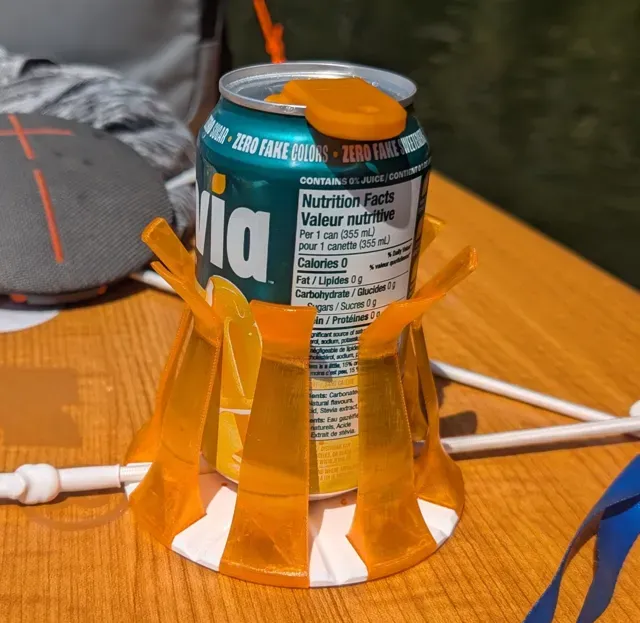

Universal SUP Cup Holder!

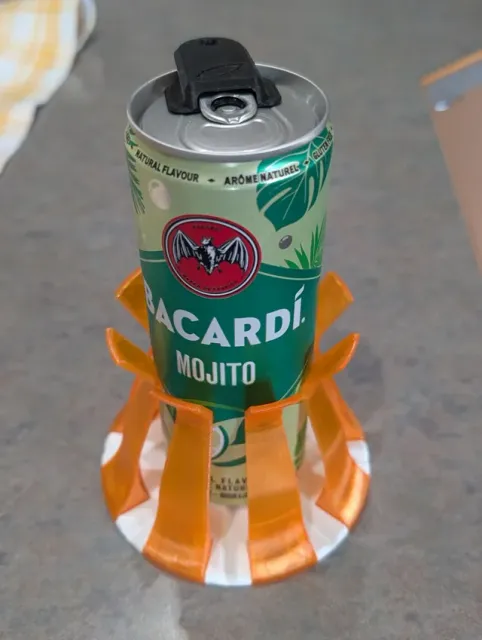

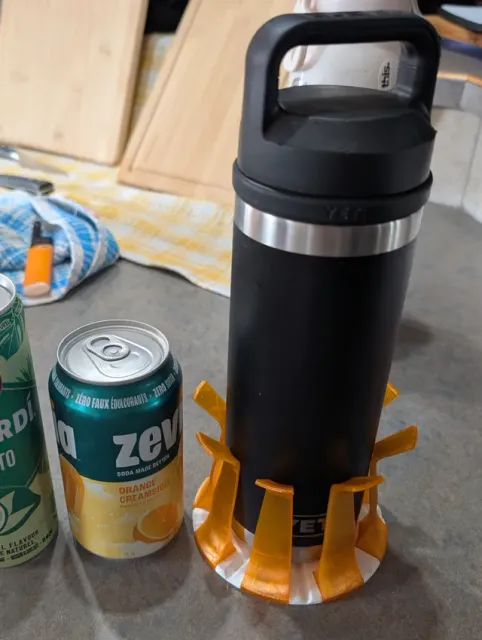

It can hold cans as slim as 55mm, normal sized cans, and water bottles up to 76mm in diameter.

Printed in parts, can be multicolour - no AMS required. PETG recommended for both flexibility and outdoor use.

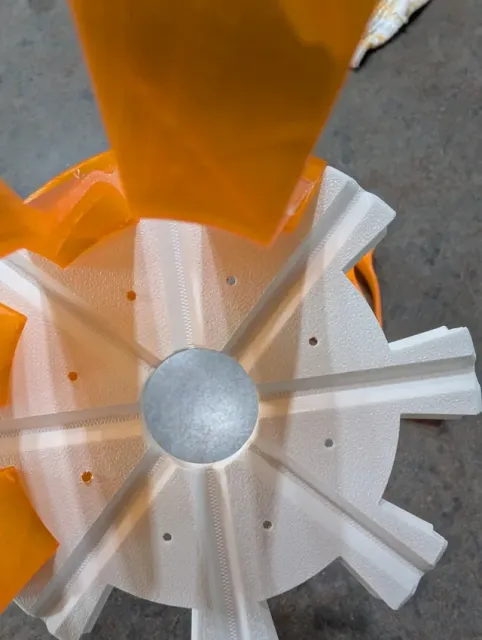

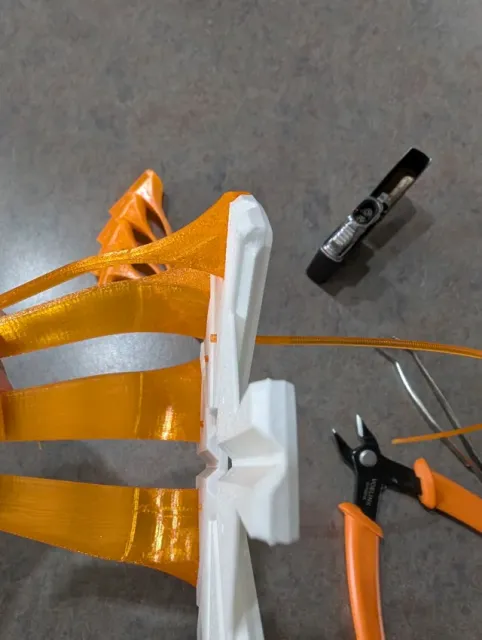

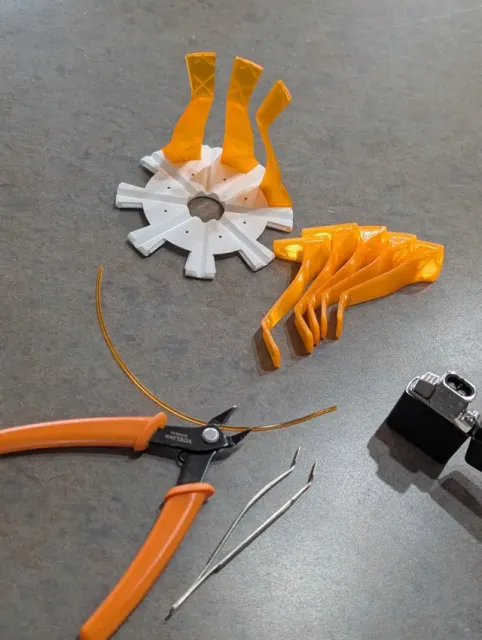

The arms are printed on their side for layer strength, making them extremely robust. They are fixed into place with a small cut of filament. Recommended to use a brim for the arms.

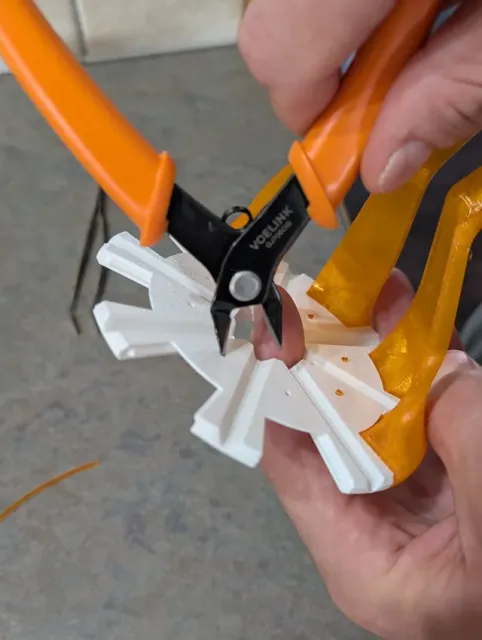

NOTE : You may need to ream out the holes a bit with the tip of your cutting tool. It should be a tight fit, but they can be mushroomed out to rivet them in place.

If you break one, you can change it, and you can be as creative as you want with the colour of arms.

Inspired by this one by jakpoy, but it broke on my first use :(

2.5hrs print ~60g filament

I've included a test plate with chopped down parts for testing with various filaments.

Pairs quite well with my Multifuction Nail Saver Can Opener and Cover

Руководства и профили печати

Профили печати и шаги

PETG - Base and Arms only

PETG - All Plates Plate 4 and 5 for Final Use

Plate 3 for testing

Plate 1 and 2 for reference purposes.
