WINWING Orion 2 / F-16 Stick – Castle HAT

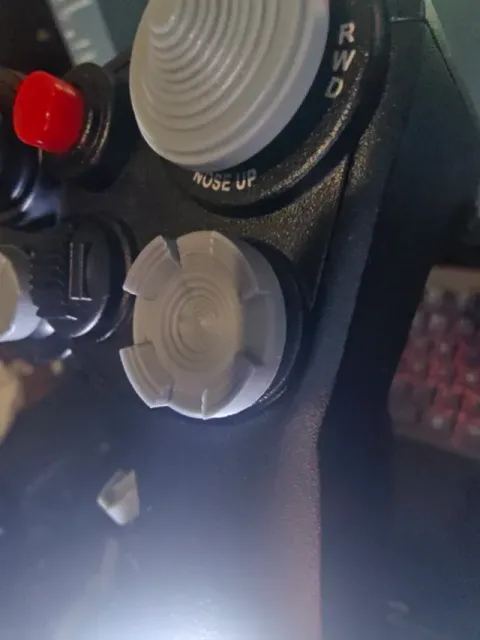

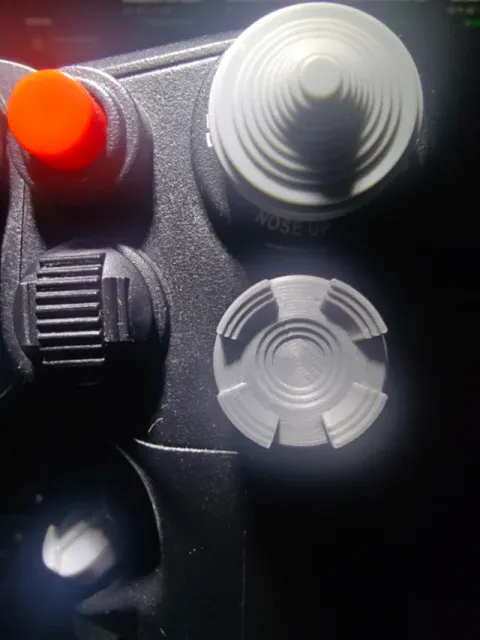

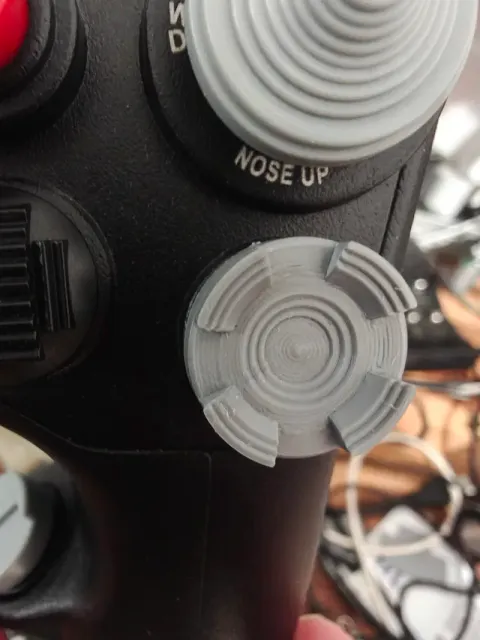

WINWING / F-16 Stick – High-Grip Ergonomic Castle HAT Switch Cap

An advanced ergonomic replacement cap for the Castle HAT switch (TMS / DMS / Management Switch) on F-16 / A-10 style flight sticks and HOTAS setups (including Winwing Viper/Orion systems).

After extensive prototyping and iteration, this custom design fixes the flat, slippery feel of the stock castle cap by introducing an aggressive tactile grip and an integrated thumb pocket.

Key Features & Improvements

• Integrated Thumb Concavity : The center profile features a subtle concave indentation that perfectly cradles your thumb tip for immediate centering and zero slip.

• Enhanced Tactile Walls : The outer "castle" crenellations are redesigned with ribbed texture and optimized angles for positive, non-slip lateral engagement.

• No-Look Position Tracking : Designed for high-stress dogfights and VR pilots—you can instantly confirm thumb placement without visual check.

• Extensive Prototyping : Hours of R&D went into refining the exact heights and radii for effortless directional actuation without thumb fatigue.

High-Precision Engineering & Tolerances

• 0.1mm Precision Fit : Designed with tight, zero-wobble tolerances for a firm, factory-grade press fit on the switch stem. • Calibration Required: Requires a well-calibrated printer and a tuned filament profile (k-factor/flow rate) to achieve the exact internal socket dimensions.

Print Profile Highlights

• Click & Print Ready : Pre-configured 3MF profile ready to print on Bambu Studio / Bambu Handy.

• High Detail & Strength : Fine layer heights to render crisp gripping ridges and smooth inner concave curves.

If this upgraded Castle HAT improves your Sensor/Target management in DCS, please drop a Boost 🚀, a like, and share a photo of your stick setup!
