Infinite Corner Filament Tower

This project was designed with one main goal: to create an infinitely expandable corner filament tower while keeping each module as lightweight as possible.

Each level weighs just over 70 g , allowing you to build a tall storage tower while minimizing both material usage and printing time. Simply print the required modules and expand the tower whenever your filament collection grows.

3MF File Layout

The project is provided as a single 3MF file containing 3 print plates , making it easier to manage and print every required part from one organized file.

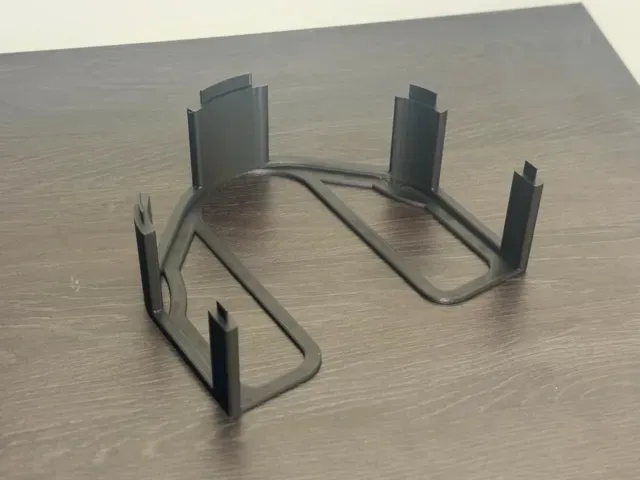

• Plate 1 – Base (Print 1×) The bottom module featuring a closed bottom that provides a stable foundation for the tower.

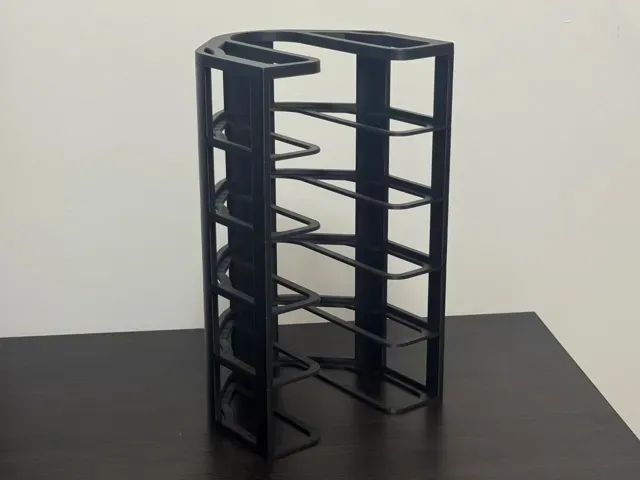

• Plate 2 – Middle Module (Print as many as needed) The stackable module used to increase the height of the tower.

• Plate 3 – Top Cover (Print 1×) The finishing module that closes the top of the tower.

Features

• Lightweight Design – Each level weighs just over 70 g , reducing both material usage and printing time.

• Infinite Modular Design – Expand the tower by printing additional middle modules whenever you need more storage.

• Corner Optimized – Designed to maximize storage while making efficient use of corner space.

• Space Saving – Organize multiple filament spools while using minimal floor space.

• Easy Assembly – Modules connect quickly and securely.

• Stable Structure – Designed to safely support multiple stacked spools.

• Bambu Lab Spool Compatible – Designed for standard Bambu Lab filament spools.

• Support-Free Printing – Every part prints without supports.

If you print this project, please leave a review and share a photo. Thank you for your support.

Designed by Megix Lab

Boost Me

Руководства и профили печати

Профили печати и шаги

PLA 0.24 mm | No Supports • No supports required

• Lightweight design

• Fully modular

• Easy assembly

UPGRADED – Reinforced Tabs – 0.24 mm – No Supports IMPORTANT: This upgraded version is NOT compatible with the previous version due to the redesigned and reinforced connection points.

- Reinforced tabs for increased strength and durability - Thicker connection points for a stronger and more reliable fit - No supports required - Lightweight and material-efficient design - Modular compatibility within this upgraded version - Easy assembly

0.28mm layer, 2 walls, 15% infill

A1 Mini optimized

PETG - 0.24mm, 2 walls, 10% gyroid Tuned for PETG on the A1 with a 0.4 nozzle. The stock profile is built around PLA — PETG oozes far more, so this one targets what actually causes stringing and blobs on this model: travel moves and retraction behaviour, not print speed.

Changes vs. the stock 0.24mm Draft profile:

- Avoid crossing walls ON — travels detour around open perimeters instead of dragging across them. Single biggest visible fix. - Retraction 1.2 mm @ 40 mm/s, with 70% retract-before-wipe - Z-hop set to Normal Lift 0.4 mm — the nozzle always clears the part on travel, so it stops catching on blobs - Retraction inside infill no longer skipped - Gap fill under 0.4 mm filtered out (classic PETG blob source) - Gyroid infill — one continuous path, far fewer travels inside the part - 240 °C nozzle / 70 °C textured PEI, flow capped at 11 mm³/s - Fan 30-70% — enough for strings to snap, not enough to hurt layers - Outer wall 120 mm/s @ 3000 mm/s² for a cleaner surface - Plates nudged 8 mm forward so the brim clears the A1's head-wrap detection zone

All retraction and Z-hop values are also set at filament level, so they survive even if printer settings get reset (e.g. printing from Handy).

Printed with Creality CR-PETG, dried. Should work with any standard PETG — if your walls look starved, drop max volumetric speed to 9 mm³/s.

Double middle piece for A2/H2 - 0.24mm layer, 2 walls Two of the middle piece in one print, for H2 sized beds

一盘快速打印，优化参数，提高打印效率
