Minimalist wooden Shoe Rack

Boost Me If you like this model, I’d really appreciate a boost — thank you for your support!

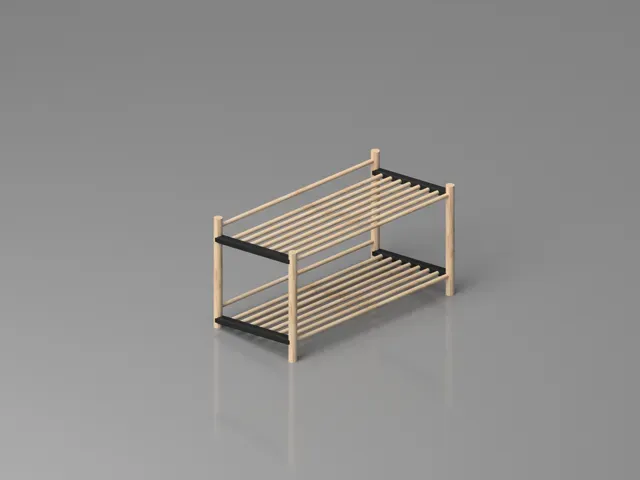

A simple and minimalistic wooden shoe rack.

You will need:

- 4 × wooden dowels, 20 mm diameter × 270 mm long - 18 × wooden dowels, 10 mm diameter × 480 mm long - 8 × 3.5 × 15 mm countersunk wood screws - Super glue (optional, to secure the printed parts) - Wood glue (for the dowel joints)

Assembly:

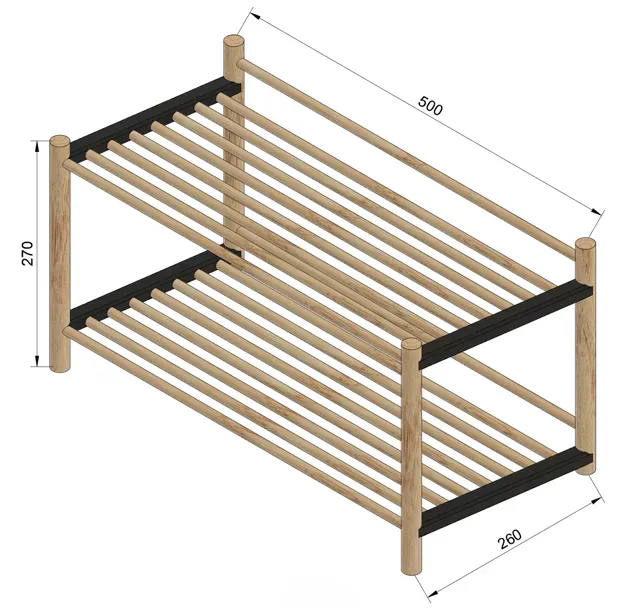

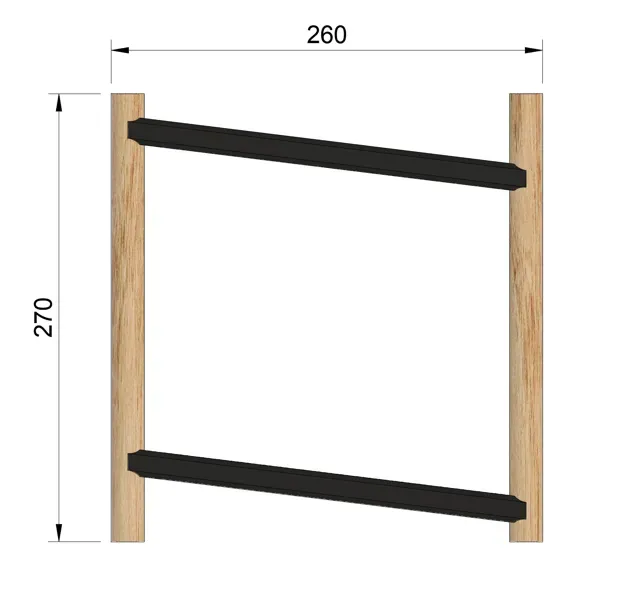

1. Cut the 20 mm wooden dowels to a length of 270 mm .

2. Use the supplied drilling guides to drill the holes in the dowels. Align the top of each dowel flush with the guide so that the flat end sits perfectly against it. Place the guide on the flat end and drill halfway through the dowel using a 10 mm drill bit .

Important: Make sure both ends of every dowel are cut flat and are properly aligned before drilling.

3. Position the small printed brackets using the drilling guide and secure each one with a 3.5 × 15 mm wood screw .

Use brackets "A" for the front dowels and brackets "B" for the rear dowels. The letters must face upwards .

4. Press the printed outer parts onto the brackets. If desired, apply a small amount of super glue to secure them permanently.

5. Insert the 10 mm wooden dowels into all holes. Apply a small amount of wood glue inside the larger 20 mm dowels to create a strong, durable connection.

6. Finally, attach the opposite side of the rack and complete the assembly.

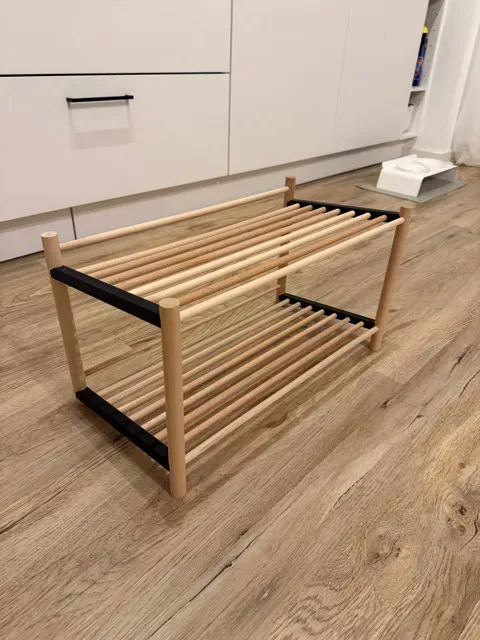

Enjoy your new shoe rack! :)
