Hollow Knight Magnetic Pencil Case

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 5 Лайки
  • 3 Загрузки
  • 3 Напечатали
  • 11 В подборках
  • 0 Бусты
  • 3 Комментарии
  • 0 Просмотры

Автор:Pangolin

Опубликована

Описание

Hollow Knight Dual-Sided Magnetic Pencil Case

A slim, phone-sized pencil case featuring custom dual-sided artwork and a Pure Nail magnetic sliding latch .

✨ Features

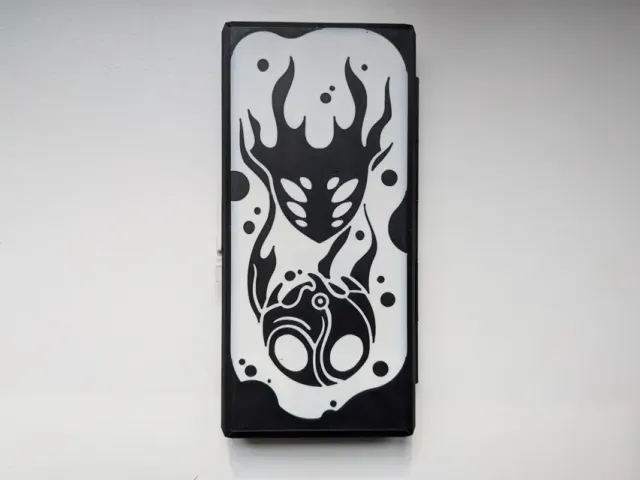

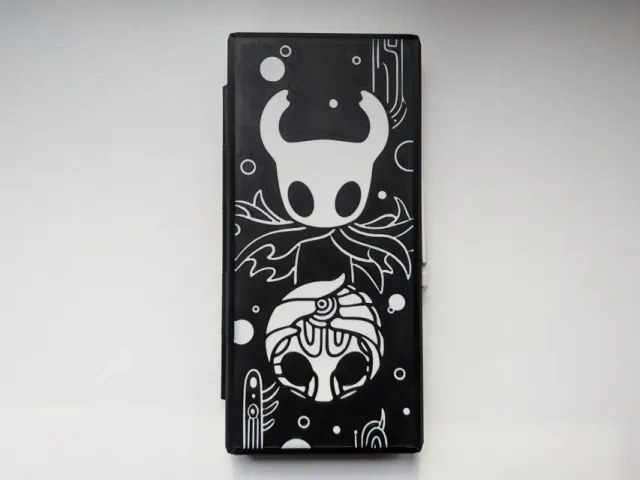

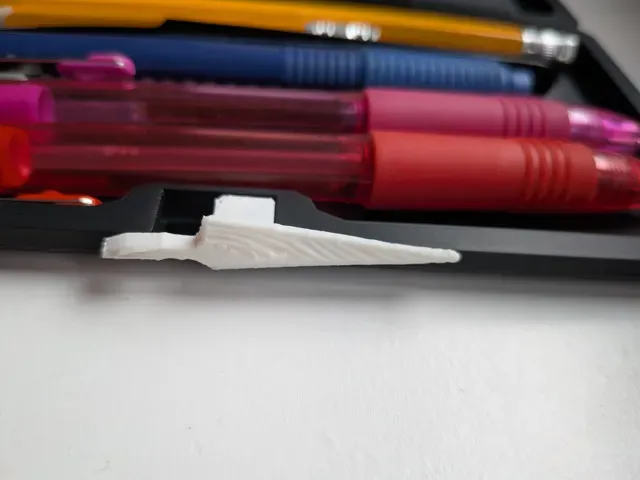

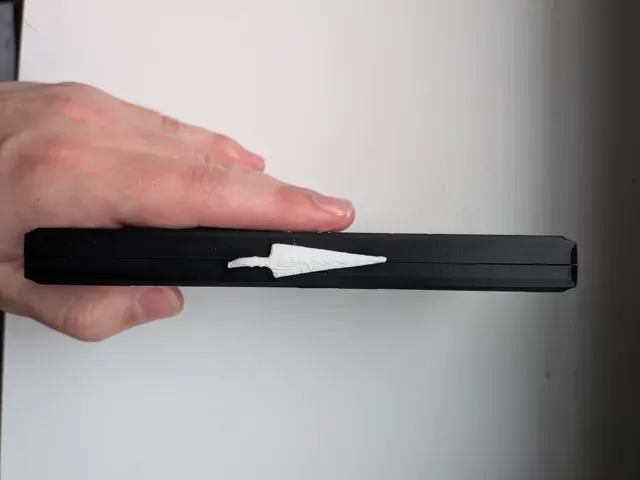

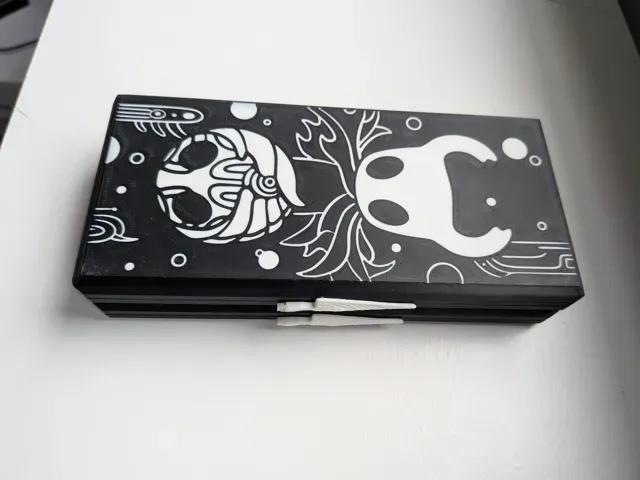

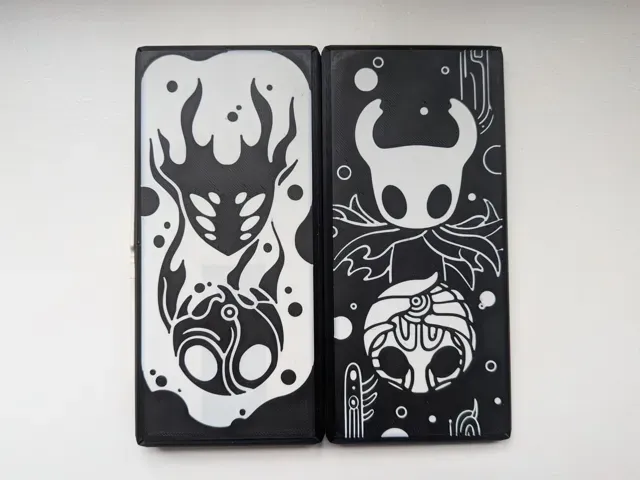

- Pure Nail Latch:   Slide the Pure Nail to break the magnetic seal and pop the case open. - Dual Artwork:   The Knight with  Kingsoul (front) and Shade Lord with  Void Heart (back). - Compact & Slim:    160 x 75 x 16 mm (6.3 x 3 x 0.63 in) — roughly phone-sized. - Secure Lock:   Strong magnets keep the case shut during transport.

📐 Interior Options

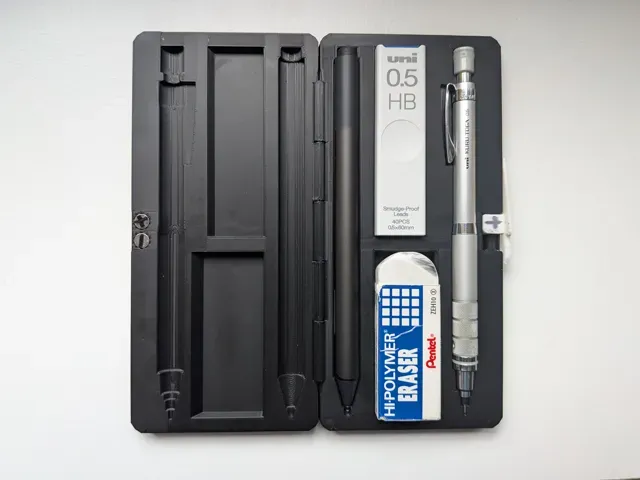

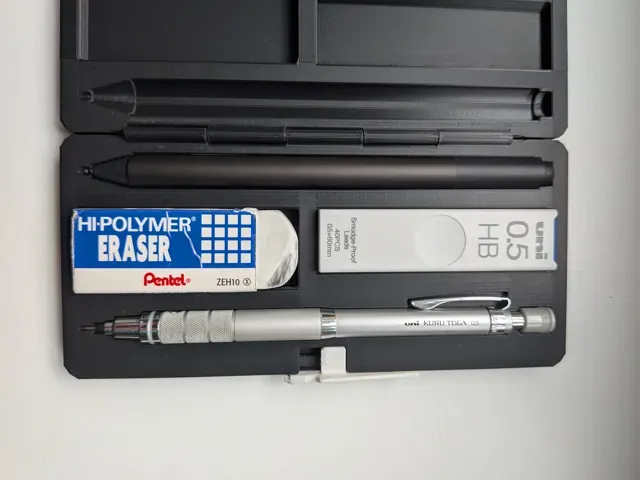

Fitted Organizer:   Custom cutouts engineered to fit:

●     1x Uni Kuru Toga Mechanical Pencil

●     1x Pack of Lead Refills

●     1x Rectangular Eraser

●     1x Stylus (Microsoft Surface Pen or similar)

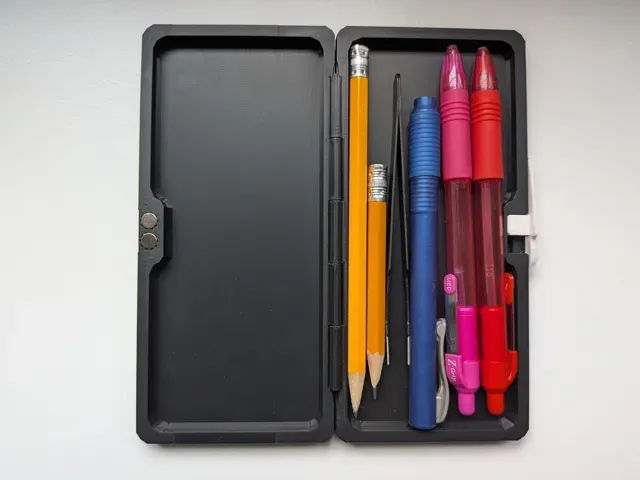

Open Storage:   Single tray for universal storage of general pens and tools.

🧲 Hardware Needed

Latch & Lid Magnets:

●    2–4x  6x3 mm round neodymium magnets  (6x2 mm works too) .

Hinge Pin:

●    1x short piece of  1.75mm filament .

Stacking Magnets (Optional):

●    6x  6x3 mm magnets for the stackable profile.

🛠️ Quick Assembly

- Hinge: Align top and bottom halves, slide1.75mm filament through the hinge, and trim flush. - Magnets:   Set magnets so the latch  attracts at the bottom, and  repels/pushes open at the top. - Latch: Snap the Pure Nail into the sliding track on the lower half. (Best method: press the pencil case against a ledge to snap it in) - Break In:   Work the latch and hinge back and forth a few times to smooth out the movement.

If you like this model, please leave a  Like or a  Boost ! Drop any questions or ideas in the comments.

Руководства и профили печати

Профили печати и шаги

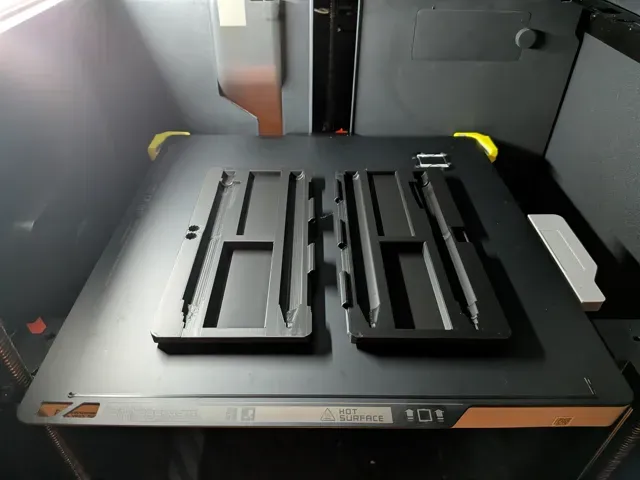

Latch Case (Standard) - 0.2mm - PLA - 0.2mm layer height

- Includes template for mechanical pencil, stylus, eraser, and pencil lead

- Black and White PLA recommended

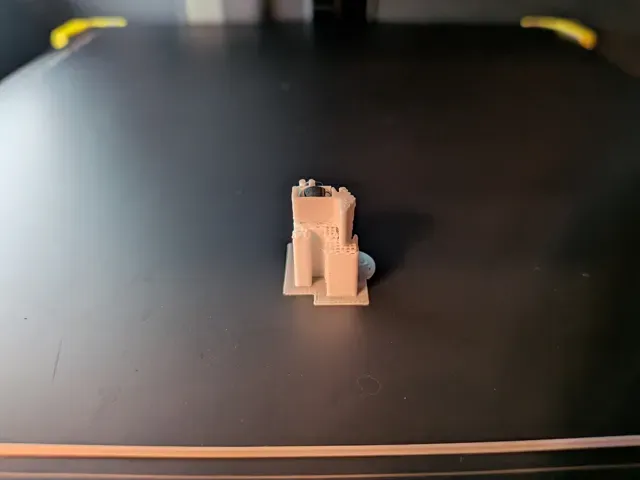

- Layer pause on latch to place magnet during print

Latch Case (Inset Magnets + Name) - 0.12mm - PLA - Features inset magnets with layer pauses

- Customizable text_shape (change to your name)

- 0.12mm layer height (Longer print but finer details)

Latch Case (No Template) - 0.2mm - PLA - Open, no template means that you can place a variety of pens / pencils inside

- Same settings as Standard Latch Case

Latch Case (Standard) - A1 Mini - Same settings as default profile, except Top / Bottom are on separate plates

- Allows for printing on A1 Mini
