LM2596 Buck Converter Case | Snap-Fit | Options

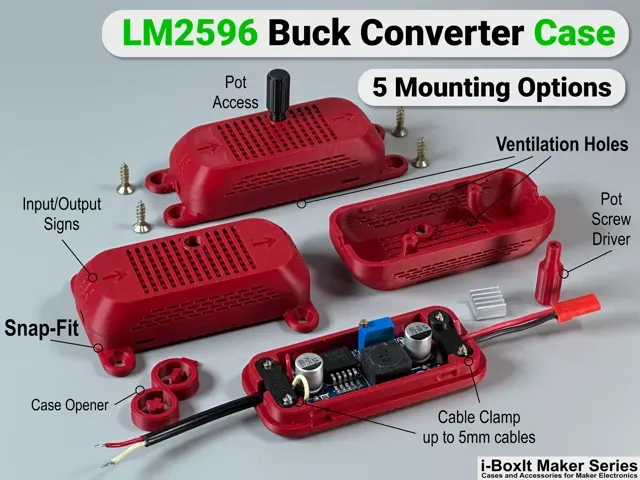

🔧 Features

- Snap-Fit Case

Easy to open and close without screws

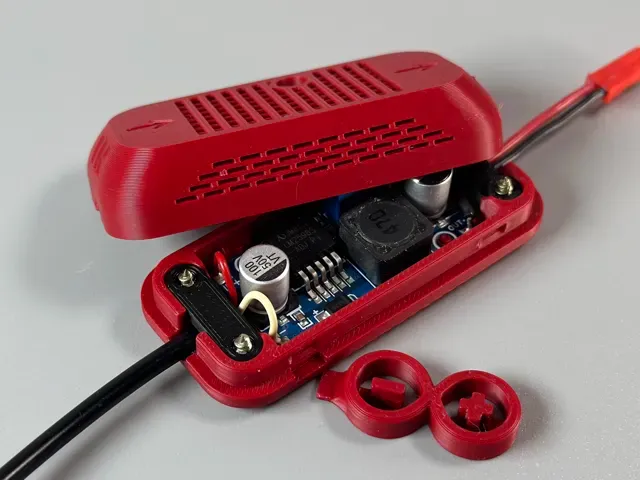

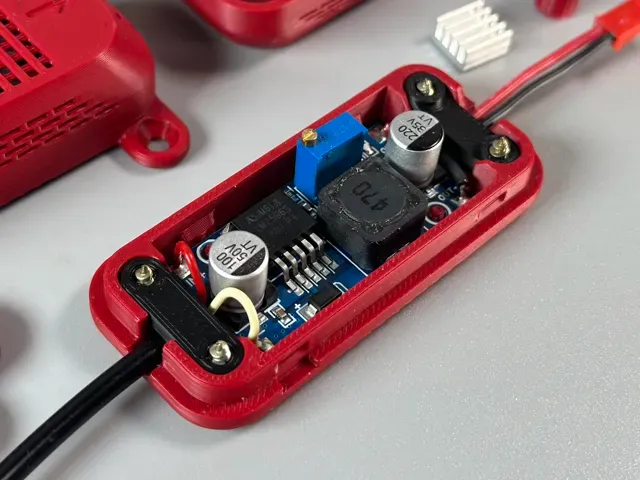

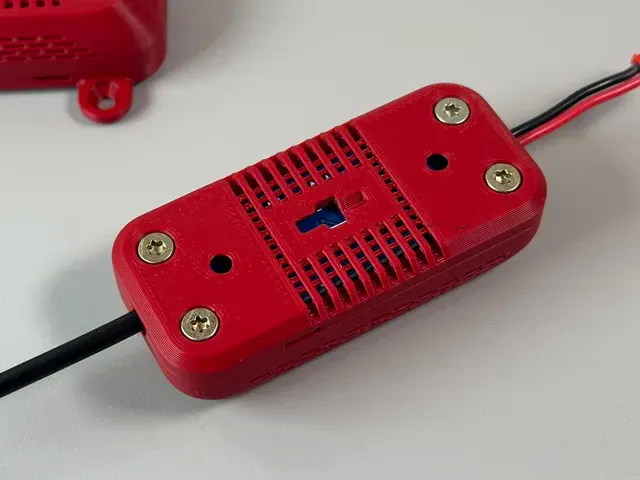

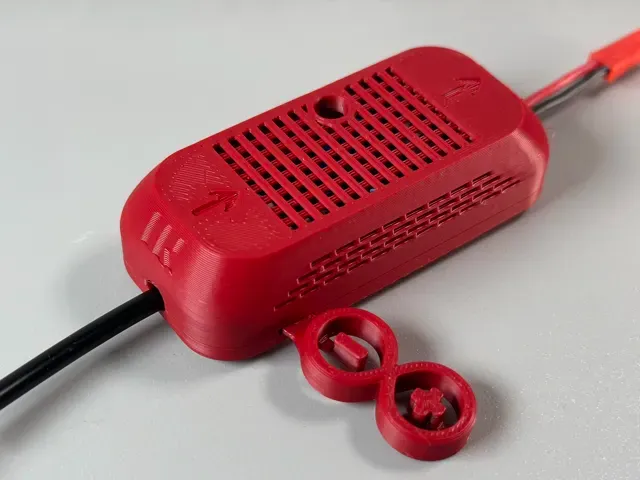

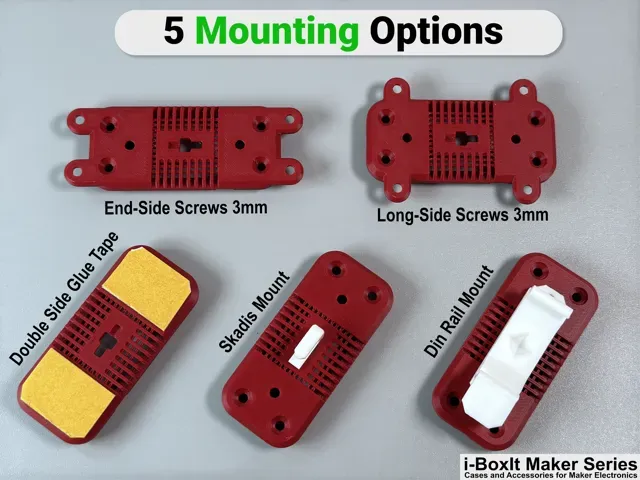

- Potentiometer Access Direct access to the adjustment screw without opening the case. - Potentiometer Screwdriver Includes a dedicated adjustment tool. It fits the modules I tested, but please check compatibility with your potentiometer. - Ventilation Cooling openings on all sides improve airflow around the module. - Case Opener A separate opening tool is included for easier lid removal. - Mounting Options - Plain: No mounting holes - Long-Side Mount: Screw holes on the long side - ⌀3mm - End-Side Mount: Screw holes on the short side - ⌀3mm - Skadis Mount - Din Rail Mount: Use screw Screw ⌀3mm x 12mm to connect it to the case ⚠️ Important: If you use the internal screws, insulate the underside of the PCB to prevent short circuits. - Cable Clamp — Up to 5 mm Cables The cable-clamp bridge can be installed in either direction: - One side for thinner wires - One side for thicker cables - Recommend ⌀3mm x 12mm Screws - Heatsink Clearance Space for a heatsink up to approximately 9 × 9 mm . - Compatible to: LM2596,  XL4005, XL6009 Max form factor: 45.8mm x 21.3mm 🖨️ Print Settings

- Material: PLA is suitable for normal use. PETG is recommended for higher power loads or increased heat resistance. - Layer Height: 0.2 mm - Supports: Not required 🔗Links

- LM2596: https://s.click.aliexpress.com/e/_c3hzuC6T - Heat Sink: https://s.click.aliexpress.com/e/_c4sicXrp
