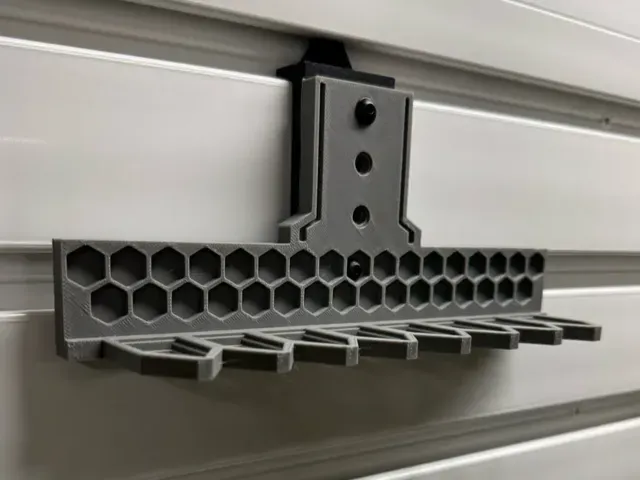

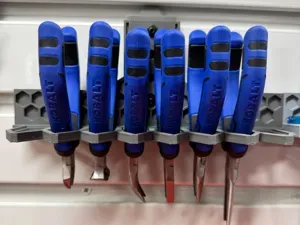

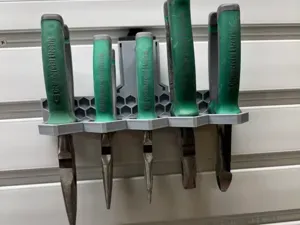

M.T.H.S. Holder - Pliers - Tiny / Precision

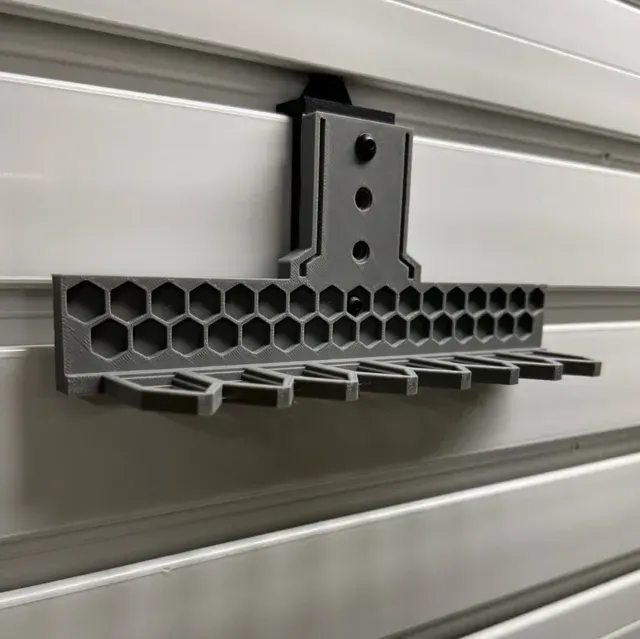

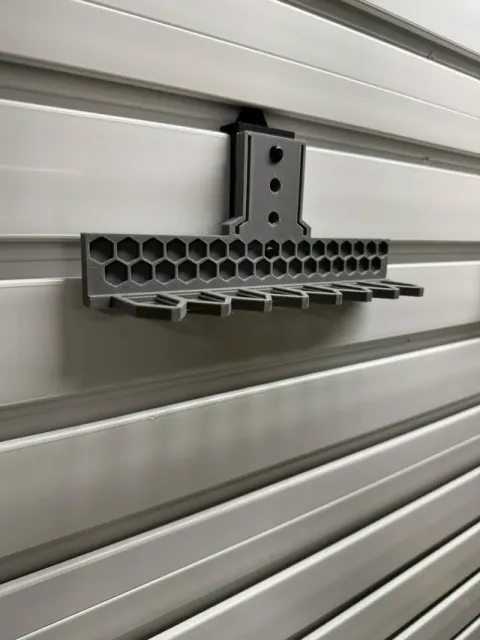

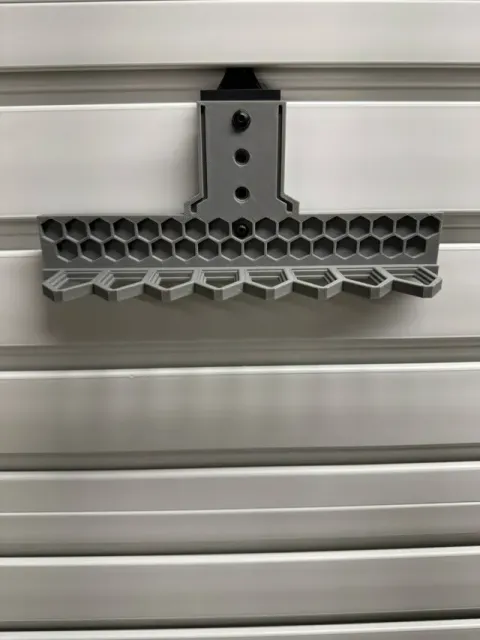

Design Concept:

A series of tool and accessory holders that can be attached to modular mount plates for various brands track / wall systems, or mounted directly to the wall.

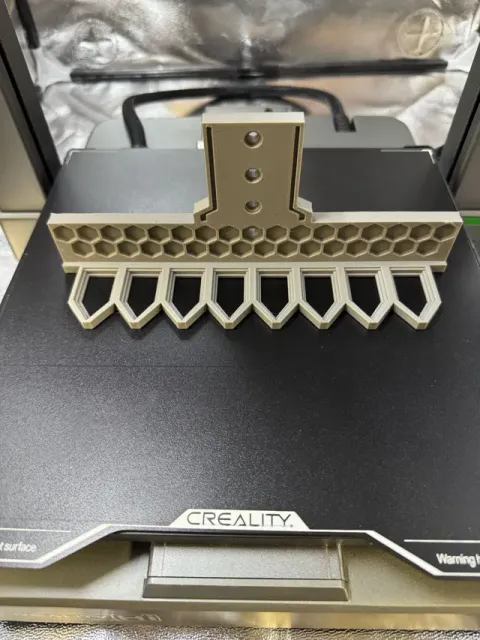

Printing Instructions:

The minimum tested infill for most parts was 10% grid pattern with 3 wall loops using PLA+ filament.  15-20% gyroid infill is recommended for better durability, or performing selective reinforcement of key areas (hooks, fingers, etc.) during slicing. PLA+ works for most of the tool holders for light duty, but PETG or better is recommended.

Assembly:

The series is designed to use M4 screws and nuts, with a M4x16mm being used for most of the modules in the series.

Specifically ISO7380 Button Head M4 -0.7 x 16mm or M4 - 0.7 x 12mm screws were used for the design.

Other M4 screw head types should generally work as well, but they may required the use of a washer depending on how they sit in the recessed area of the tool plates.

Revision History:

Revision 1 - Initial Design / Prototype
