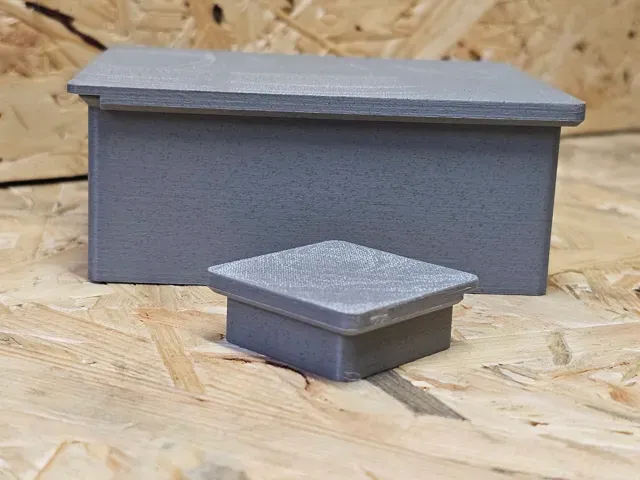

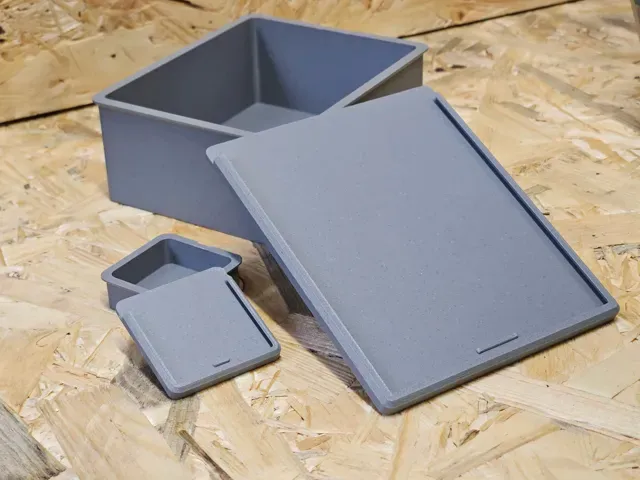

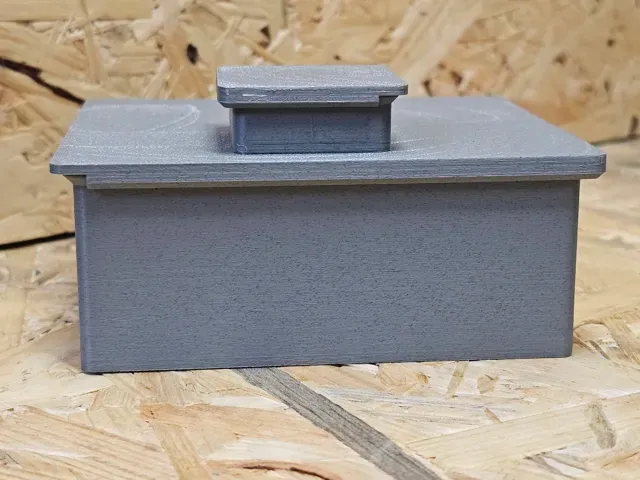

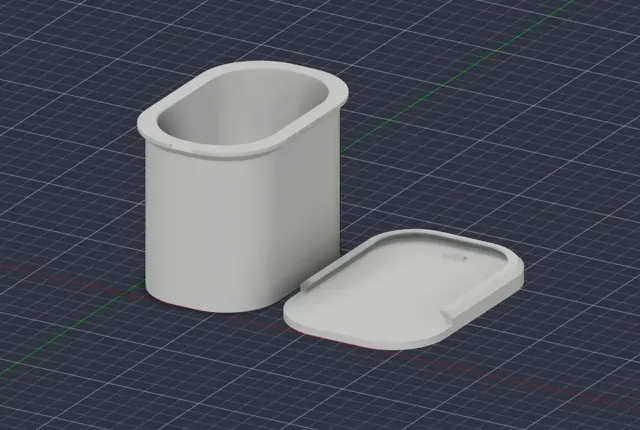

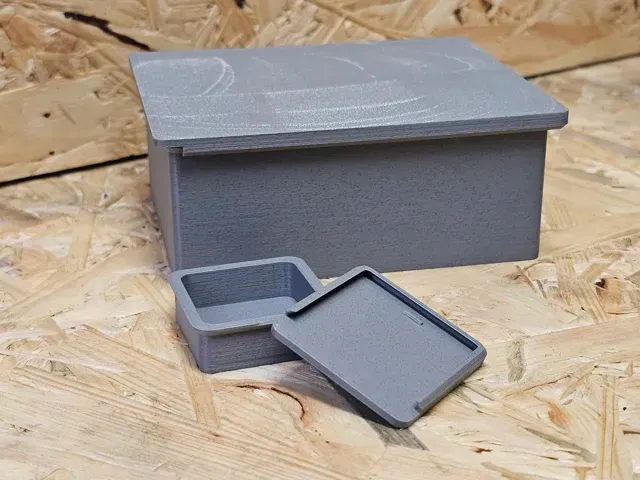

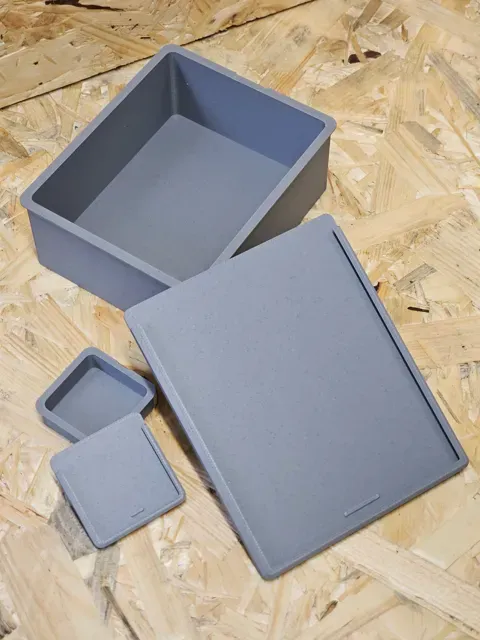

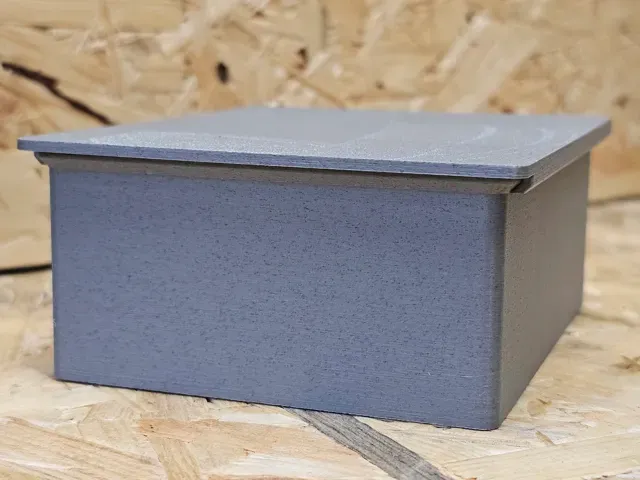

Parametric Box with Sliding Lid & Snap Lock

A fully parametric storage box with a sliding lid and integrated latch.

The box can be easily customized to fit your needs. Adjust the internal dimensions, wall thickness, bottom thickness and corner radius, while the lid and latch geometry automatically adapt to the selected dimensions.

Parameters:

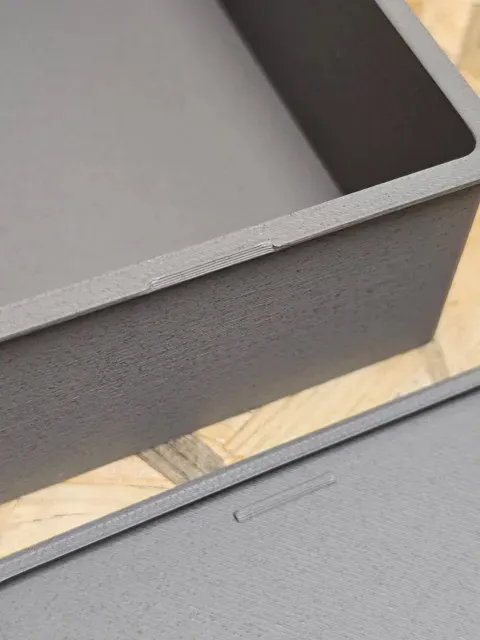

- Inner Length – internal length of the box - Inner Width – internal width of the box - Inner Height – internal height of the box - Wall Thickness – thickness of the box walls - Bottom Thickness – thickness of the bottom - Corner Radius – radius of the rounded corners - Lid Thickness – thickness of the sliding lid - Lid Clearance – clearance between the lid and the box The latch is automatically adjusted according to the selected wall thickness, so there is no need to manually configure its dimensions.

The main dimensions are measured inside the box , making it easy to design a container around the exact amount of space you need.

Print recommendations:

- PLA or PETG recommended - No supports required - 0.20 mm layer height recommended - 10–15% infill recommended - Top and bottom: 5 layers recommended - Wall count depends on the selected wall thickness. For thinner walls, use a higher number of wall loops to achieve fully solid walls. Up to 5 wall loops may be recommended for thinner configurations. - For larger boxes, consider increasing the wall thickness for better rigidity. For larger models:

If the generated box and lid do not fit on your build plate, download the 3MF file from the MakerWorld Parametric Model Generator and place the box and lid on separate plates.

The model is designed to keep the number of user parameters to a minimum while automatically adapting the lid and latch to the selected box dimensions.
