Wall Plate Series – Art Nouveau

Update (Sept 05): New Decora / Rocker Switch Inlay added

Bring a touch of Art Nouveau elegance to your home.

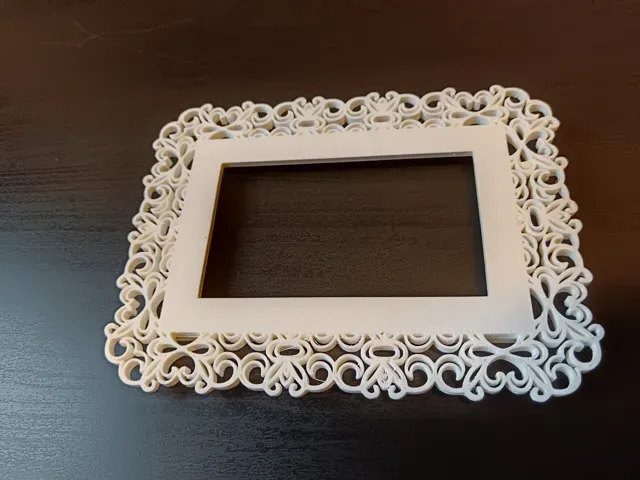

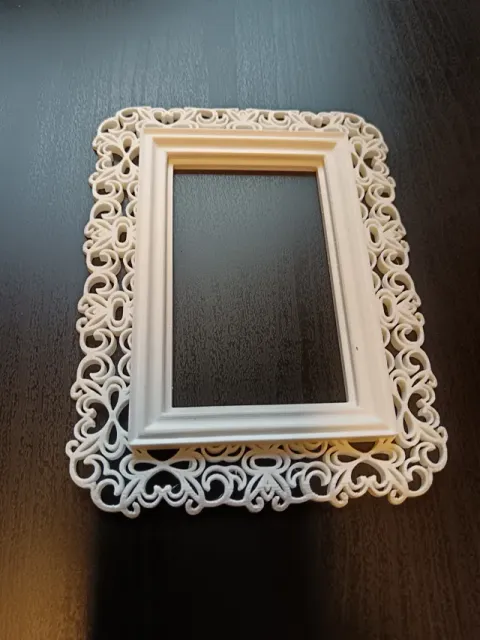

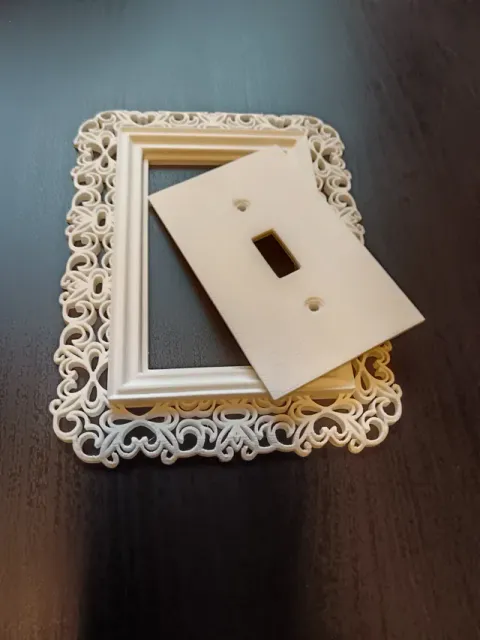

The Wall Plate Series combines a decorative frame with interchangeable inserts, allowing multiple wall plate configurations to share the same design language.

👉 Modular wall plate platform 👉 Interchangeable insert system 👉 Designed for future wall plate configurations 👉 Art Nouveau inspired ornamentation 👉 Lightweight and filament-efficient construction 👉 Optimized for FDM printing

👉 Multi-color printing possible, even on single-extruder printers 👉 Support-free design

👉 Fully designed in AutoCAD.

Compatibility

Designed for standard wall plates.

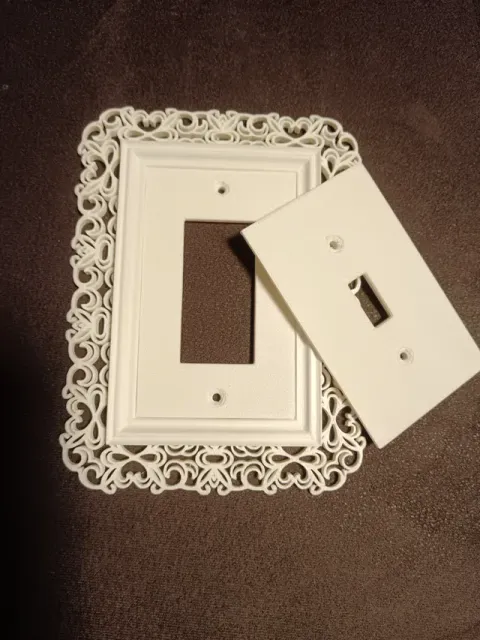

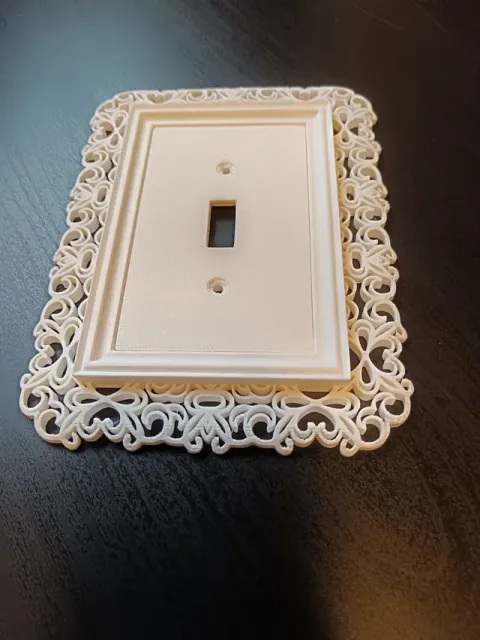

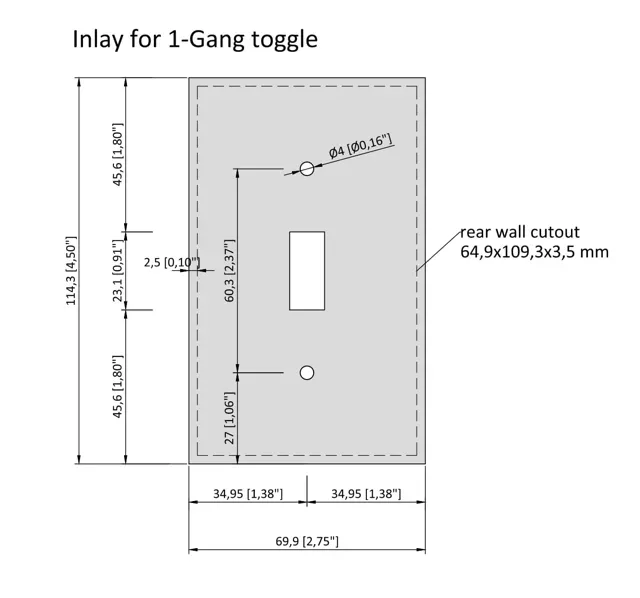

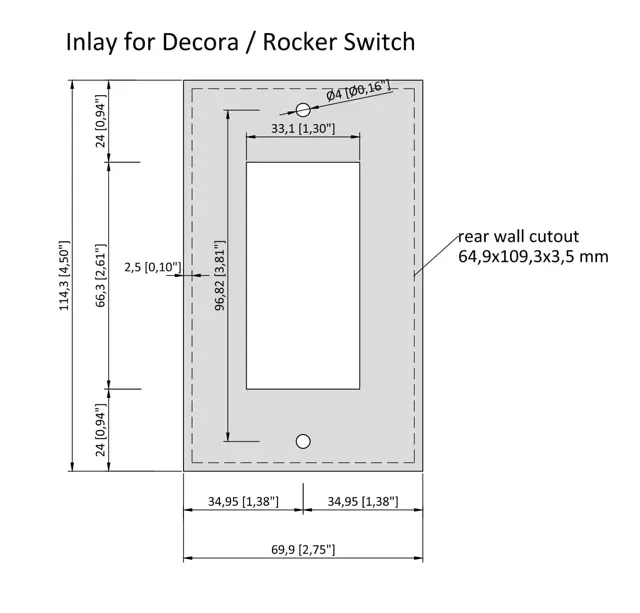

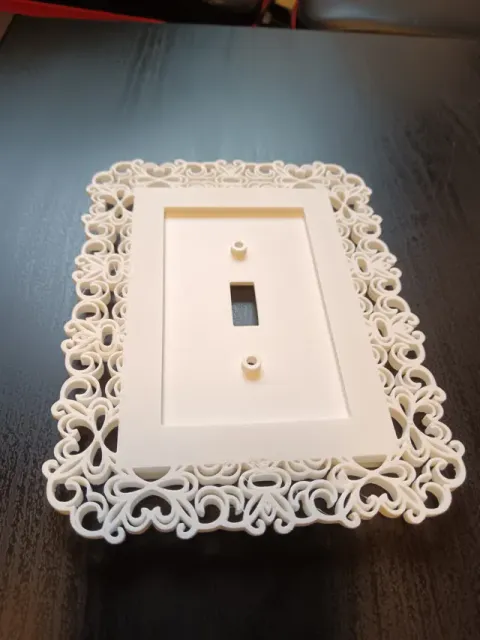

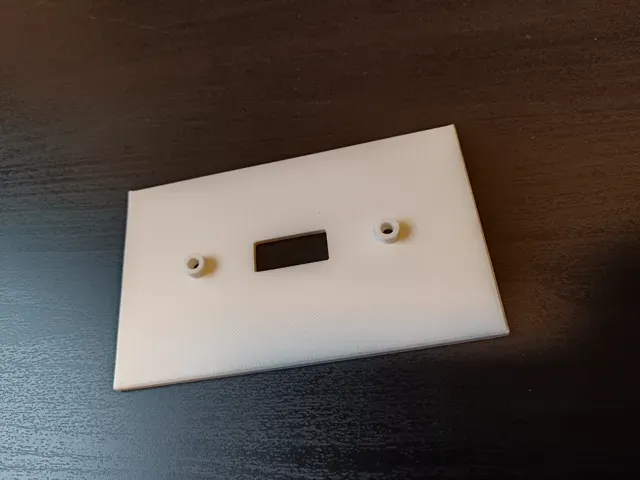

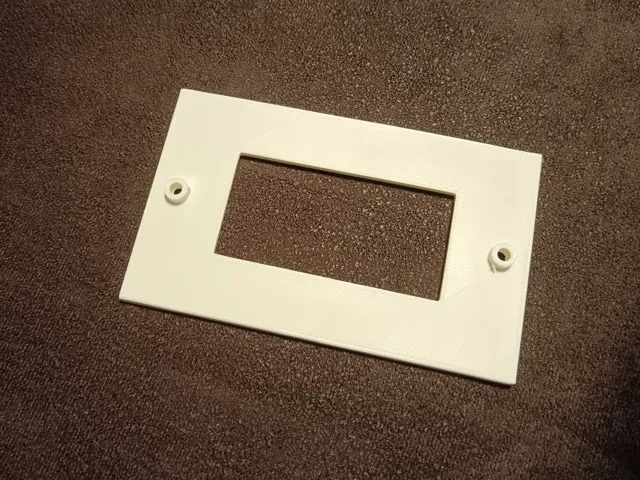

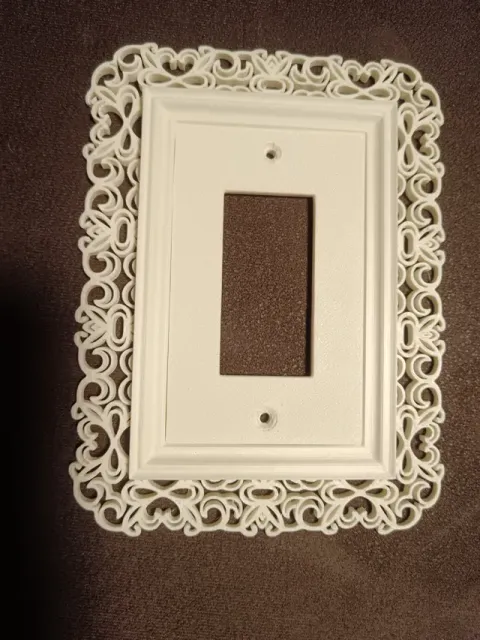

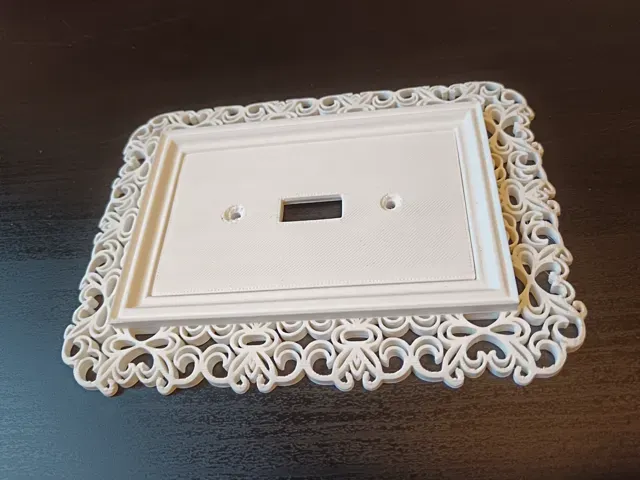

Overall Size:   181.8 × 137.8 mm Base Structure:   137.3 × 92.9 mm Inner Opening:   109.3 × 64.9 mm insert variants are included: • Inlay for 1-Gang toggle Switch • Inlay for Decora / Rocker Switch

…more inlays to follow.

Recommended Materials

For applications around electrical installations, flame-retardant materials such as

PETG-FR or ABS-FR (e.g. UL 94 V-0 rated materials) are recommended.

Recommended Colors

🎨 White / Ivory 🎨 Gold / Bronze

Feel free to leave a comment and let me know which inserts or frame styles you would like to see next.

Enjoy printing! 🙌

Boost Me ⚠️ Safety Notice ⚠️

This model is intended solely as a decorative wall plate accessory and does not contain any electrical components. The model has not been tested or certified with regard to fire resistance, electrical safety or compliance with local regulations. Installation, removal and any work involving electrical equipment must only be performed with the circuit de-energized. Before installation, ensure that the wall plate does not impair the function, accessibility, ventilation or safety of the existing electrical installation. The user is responsible for verifying suitability for the intended application. Use at your own risk.
