Mini Flexi Alligator - Print in Place Gator
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- PRIVATE-USE
- Только для личного использования: печатать для себя, без продажи и распространения.
- Форматы
- STL
- 4 Лайки
- 4 Загрузки
- 2 Напечатали
- 10 В подборках
- 0 Бусты
- 0 Комментарии
- 0 Просмотры
Описание

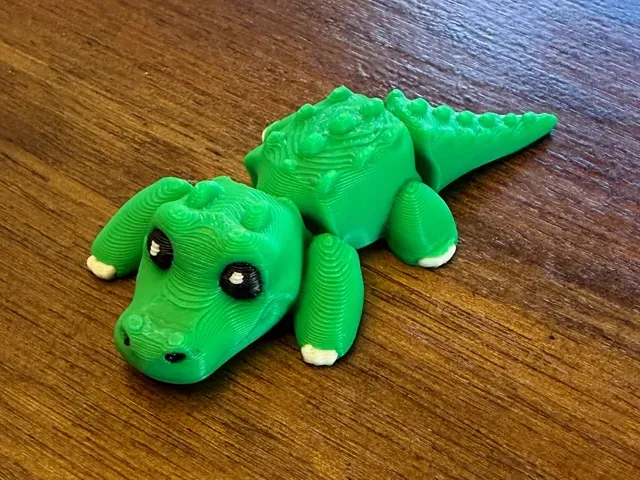

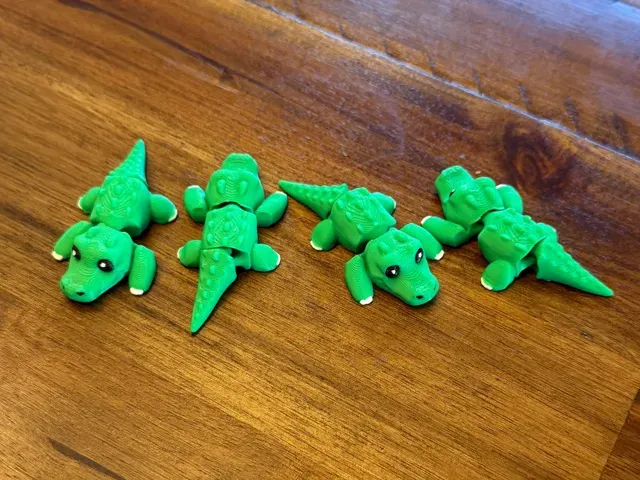

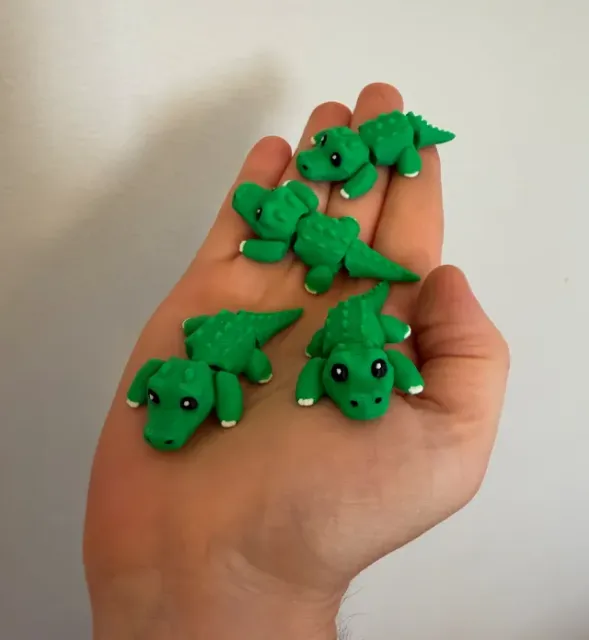

Flexi Alligator is a small print-in-place articulated alligator: a cute, chunky-snouted gator with a segmented body and tail that wiggles straight off the build plate, no supports and no assembly. Each one is only about 62 × 31 × 13 mm, so it works as a pocket fidget, a desk toy or a handful of party favours, and the supplied Bambu Studio profile prints 26 of them on one plate.
Features
- Print-in-place articulation – the head, body sections and tail segments are linked with built-in joints, so the finished alligator flexes side to side like a flexi crocodile toy the moment you pop it off the bed. - Cute cartoon styling – oversized round eyes, a wide rounded alligator snout, stubby legs and rows of raised scute bumps down the back and tail that print cleanly at 0.2 mm. - Three-colour detail without painting – the profile prints the body in green with black eyes and white claws using painted (mmu) regions on a single mesh; print it in one colour if you prefer a solid gator. - Pocket sized – each alligator is roughly 62 mm long, 31 mm wide and 13 mm tall (finger length), light enough to carry around and small enough to print in multiples. - Batch ready – the "Batch" plate holds 26 alligators for classrooms, party bags or craft-fair stock; the "Single" plate prints one for a quick test. - No supports, no glue, no assembly – prints flat as one piece with an automatic brim on a textured PEI plate. Included Files
- Flexi Alligator.3mf – the prepared Bambu Studio project/print profile with two plates: "Batch" (26 alligators) and "Single" (1 alligator), 0.20 mm layers, three filament slots assigned (green body, black eyes, white claws). - Flexi Alligator.stl – the complete alligator as a single print-in-place mesh (about 62 × 31 × 13 mm). Import it into any slicer, print it lying flat as-is, in one colour or with your own colour painting. Printing Information
- Layer height: 0.20 mm (0.20 mm Standard profile, 0.4 mm nozzle) - Material: PLA (Generic PLA profiles for all three slots) - Supports: none needed – the model prints flat with print-in-place joints - Colours / AMS: the supplied profile uses 3 filaments (green body, black eyes, white claws), so an AMS or manual filament changes are needed for the multicolour version. The STL is one mesh, so a single-colour print without an AMS works fine – the eyes and claws simply print in the body colour. - Plates: 2 – "Batch" with 26 alligators plus a prime tower, "Single" with 1 alligator - Walls / infill: 2 walls, 15% grid infill, 5 top and 3 bottom layers - Bed / brim: textured PEI plate, automatic brim - Printer: profile prepared for the Bambu Lab X1 Carbon with a 0.4 mm nozzle; MakerWorld lists the other compatible Bambu printers automatically. The project is not pre-sliced, so print time and filament weight are calculated by MakerWorld after upload. - After printing: remove the brim, then gently bend the tail and body a few times to free the joints. Usage
- Pocket fidget and desk toy – the articulated tail is satisfying to wiggle. - Party favours, classroom prizes and stocking stuffers – the batch plate prints a whole set at once. - Reptile and animal display piece, or a companion for other flexi animals in your collection. - A quick, reliable print for testing multicolour setups or showing off a new green filament. Tips
- Green, black and white are the intended palette, but any bright body colour works; the eyes and claws are small painted regions, so a high-contrast eye colour keeps the face readable. - If a joint feels stiff, flex it slowly in both directions rather than forcing it; the segments are designed to move once the first layer's squish is broken.
Руководства и профили печати
Профили печати и шаги
0.20mm – 3 Colors AMS – No Supports – Batch + Single Plate Optimised for: a clean, support-free print-in-place flexi alligator in three colours on a Bambu Lab X1 Carbon (0.4 mm nozzle), using the 0.20 mm Standard process.
- Layer height: 0.20 mm (first layer 0.20 mm) - Walls / shells: 2 wall loops, 5 top layers, 3 bottom layers - Infill: 15% grid - Supports: none – the model prints flat with built-in joints - Material: PLA in all three slots (Generic PLA profiles, 220 °C nozzle, 55 °C textured plate) - Colours / AMS: 3 filaments – slot 1 black (eyes), slot 2 white (claws), slot 3 green (body); the colours are painted on a single mesh, so an AMS or manual swaps are required for this profile. Prime tower enabled. - Plates: "Batch" – 26 alligators plus prime tower filling the 256 mm bed; "Single" – one alligator for a quick test - Bed / adhesion: textured PEI plate, automatic brim - Compatible printers listed in the project: X1 Carbon, X1, X1E and P1S with a 0.4 mm nozzle - Assembly: none – remove the brim and gently flex the tail and body segments to free the joints - Print time / filament: the project is not pre-sliced; MakerWorld calculates time and weight after upload
