Pokemon Display Stand- 6 Card Two-Level Toploader

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
STL
  • 10 Лайки
  • 5 Загрузки
  • 5 Напечатали
  • 25 В подборках
  • 0 Бусты
  • 0 Комментарии
  • 0 Просмотры

Автор:LayerForger

Опубликована

Описание

Give your favorite trading cards a proper place on your desk, shelf, gaming setup, or collector’s display!

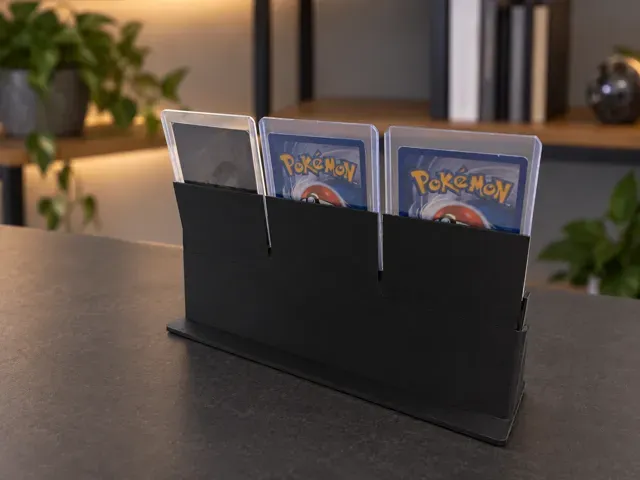

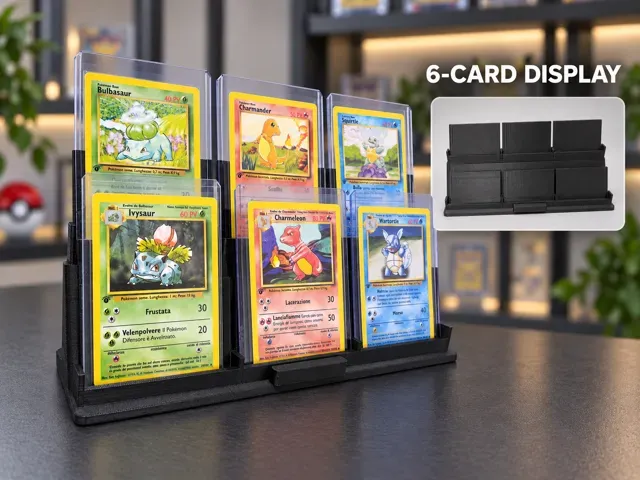

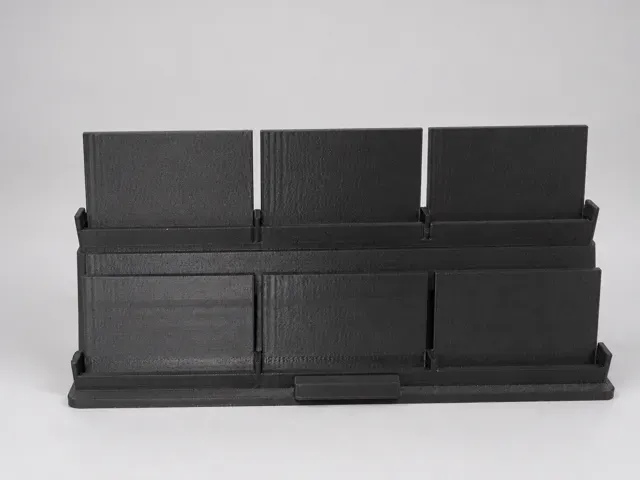

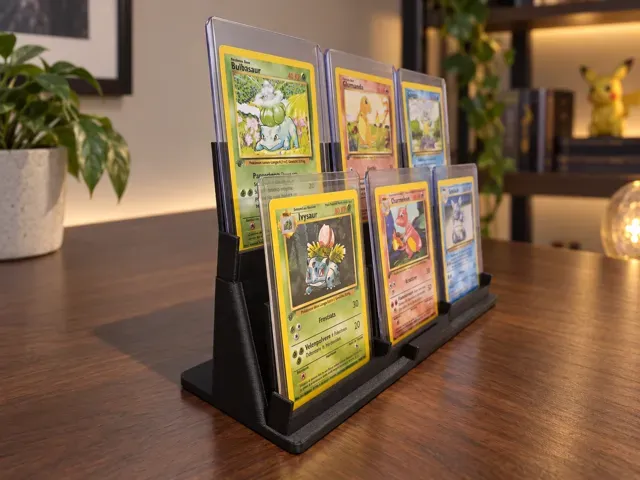

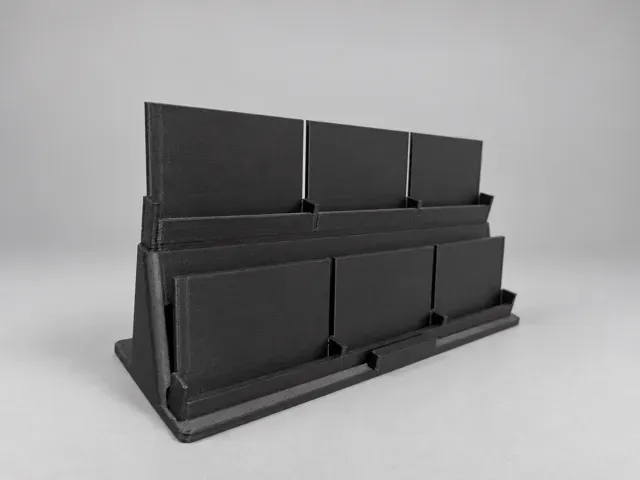

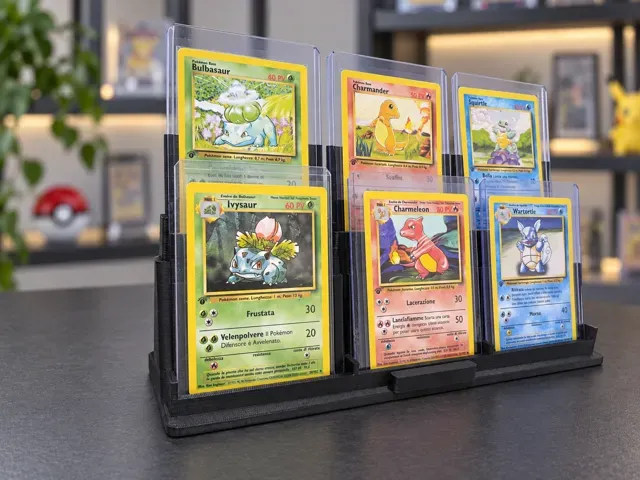

PokeTier is a compact two-level display stand designed to showcase up to six standard trading-card toploaders at the same time. The cards are arranged in two rows, with three cards at the front and three elevated cards at the back , keeping the entire collection clearly visible.

Unlike flat card racks where the rear cards are mostly hidden, the elevated second tier provides better separation between the two rows and creates a clean, organized presentation.

Main Features

- Holds up to 6 trading cards - Two-tier arrangement - Three cards per level - Elevated rear row for improved visibility - Designed for standard 3 × 4 inch toploaders - Individual dividers keep the cards properly positioned - Angled supports provide a stable display - Wide base reduces the risk of tipping - Printed as one complete piece - No assembly required - No glue, screws, or additional hardware - Designed to print without supports - Suitable for desks, shelves, display cabinets, game rooms, stores, and collector setups Compatible Cards

The stand is intended for cards stored inside standard rigid toploaders measuring approximately:

Toploader dimension Approximate size

Width 76.2 mm

Height 101.6 mm

Typical thickness Approximately 3 mm

It is ideal for displaying:

- Pokémon cards - Magic: The Gathering cards - Yu-Gi-Oh! cards - Sports trading cards - One Piece cards - Lorcana cards - Dragon Ball cards - Digimon cards - Other standard-size collectible cards Important: this version is intended for standard toploaders. It is not specifically designed for PSA, CGC, BGS, or other graded-card slabs.

Model Dimensions

Measurement Size

Width 248.2 mm

Depth 74.6 mm

Height 113 mm

Capacity 6 cards

Layout 3 cards × 2 tiers

Number of printed parts 1

The model is close to the full width of a standard 256 × 256 mm build plate. Check the position in your slicer and keep the model aligned with the X-axis before printing

Material Suggestions

PLA / PLA+

The recommended option for most users. It provides good rigidity, clean details, easy printing, and a wide selection of colors.

PETG

A good choice for warmer environments or displays exposed to occasional sunlight. Use proper cooling and retraction settings to reduce stringing between the dividers.

Printing Notes

- Import the STL at 100% scale . - Place the large flat base directly on the build plate. - No supports should be necessary. - Do not automatically rotate the model unless your printer has a smaller build plate. - Verify that the full 248.2 mm width fits inside your printer’s usable printable area. - If the fit of your specific toploaders is tighter than expected, first check for elephant foot or over-extrusion. - Different toploader manufacturers may use slightly different external dimensions. Color Ideas

This model works especially well with:

- Black for a clean collector-style display - White for a modern shelf setup - Red and white for a Pokémon-inspired color scheme - Gold or silk filament for rare-card displays - Transparent or translucent PETG - Colors coordinated with the featured card set - Team or energy-type color combinations A color change between the base and upper section can also create a more distinctive two-tone effect.

Руководства и профили печати

Профили печати и шаги

0.2 x 15% infill Recommended Print Settings

Setting Recommended value

Material PLA or PLA+

Layer height 0.20 mm

Nozzle 0.4 mm

Walls 3

Top layers 4–5

Bottom layers 4–5

Infill 15–20%

Infill pattern Gyroid or Grid

Supports Not required

Brim Optional, 3–5 mm

Print orientation Flat on the base

Seam position Rear or aligned

Print speed Standard

Assembly None
