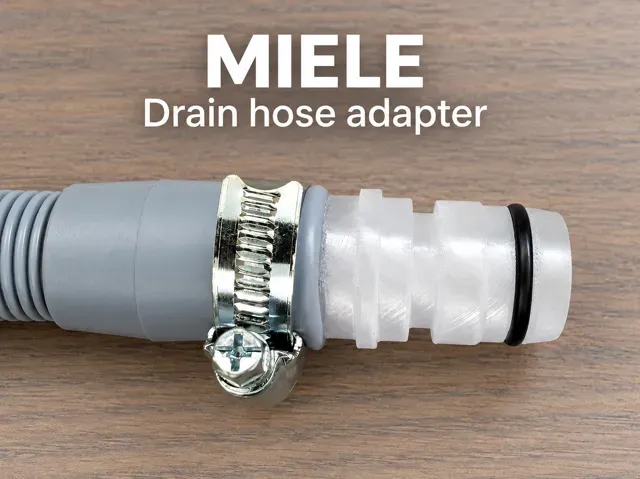

Miele drainhose adapter for W1 washing machines
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- PRIVATE-USE
- Только для личного использования: печатать для себя, без продажи и распространения.
- Форматы
- 3MFSTL
- 1 Лайки
- 1 Загрузки
- 1 Напечатали
- 2 В подборках
- 0 Бусты
- 0 Комментарии
- 0 Просмотры
Описание
Almost every washing machine uses a standard 22mm drainhose. Except some Miele washing machines, that have this fancy plastic connector with a clip. I needed to replace mine and was not happy paying 50euros for a simple hose and shipping. So I made an adapter: you can buy a regular drainhose for like 8euros, take the clip and the little seal ring, print this adapter and you are good again.
EAN of the miele drainhose: 4002516582557
Compatibility: All Miele W1 machines

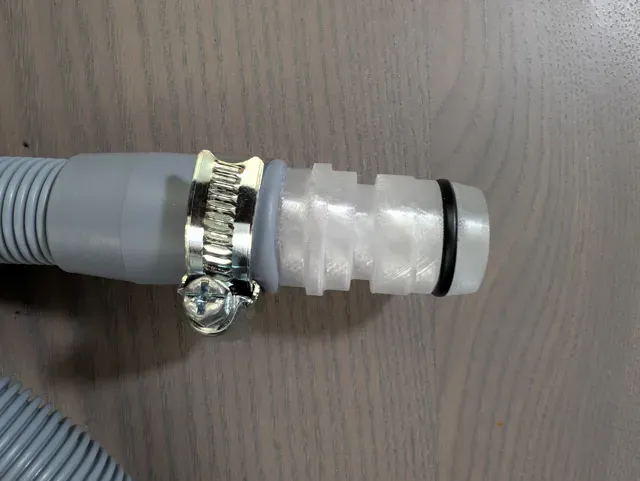

The one in the photos was printed in translucent PETG (no reason, just happened to have it on hand) and has been working great for several months now. To make it strong, it needs to be printed in 45 degree angle. I recommend PLA for support material.
Руководства и профили печати
Профили печати и шаги
0.16mm layer, 4 walls, 15% infill Print with PETG
Print 4 walls or more for waterproofing
Use support material like PLA or “Support for PLA/PETG” for perfect surface
Print in 45 degrees for strength
