Slide-Around Curtain Hanger Clip

Curtain Hanger Clip – Slide-On Grip Ring

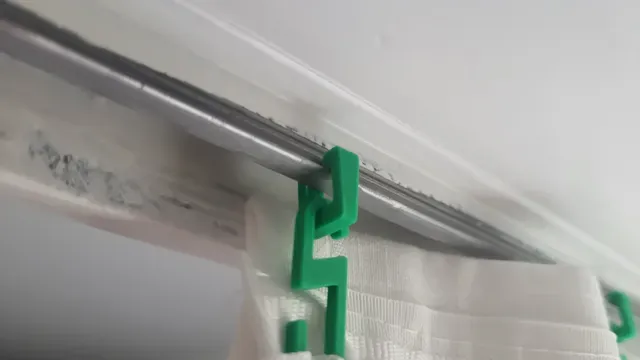

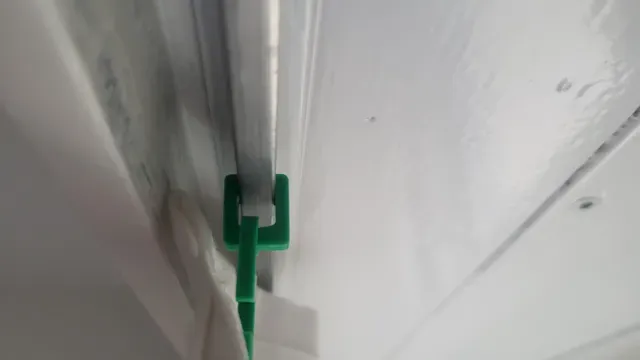

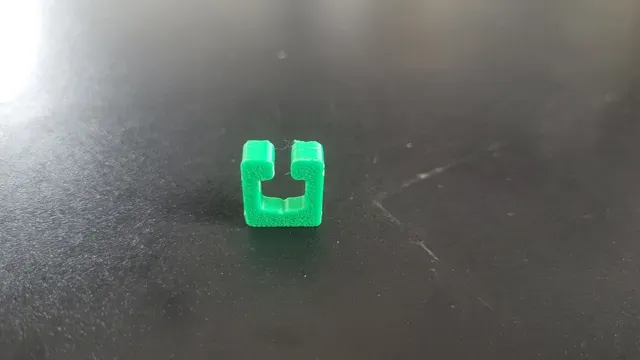

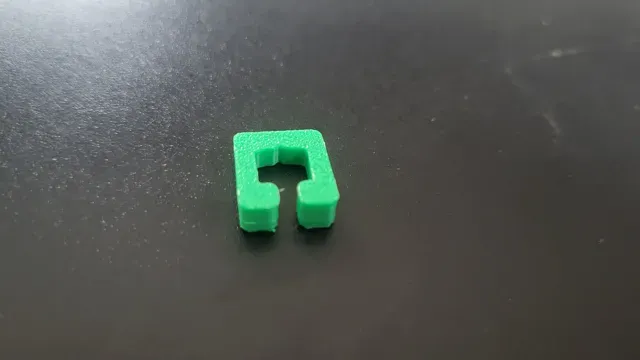

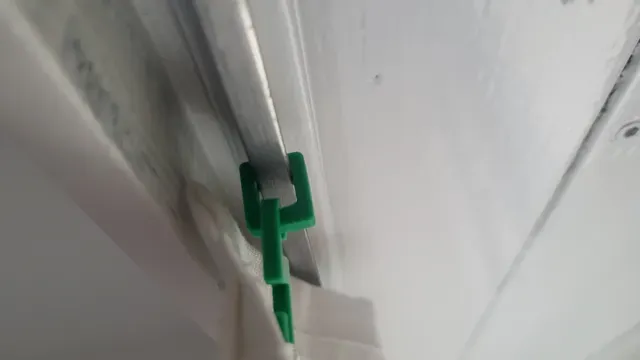

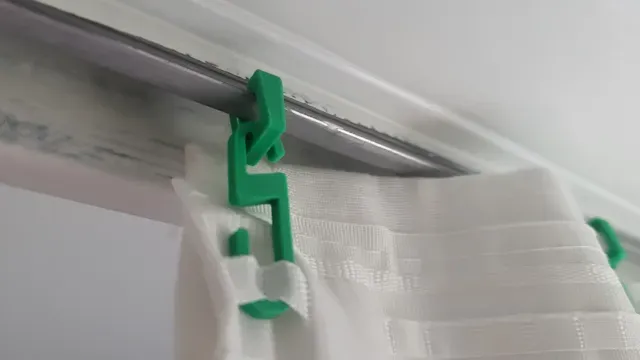

A small, sturdy clip that slides on a curtain rod or rail and holds the curtain in place. Designed as a low-cost replacement for broken or missing hangers – print a set in minutes instead of buying a whole new pack.

Features

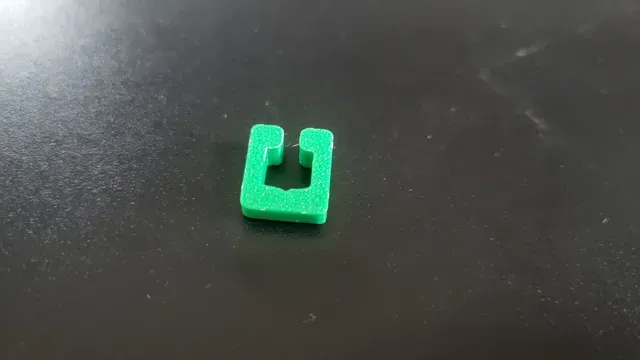

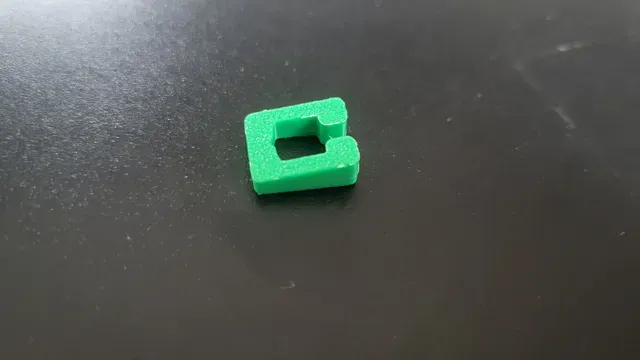

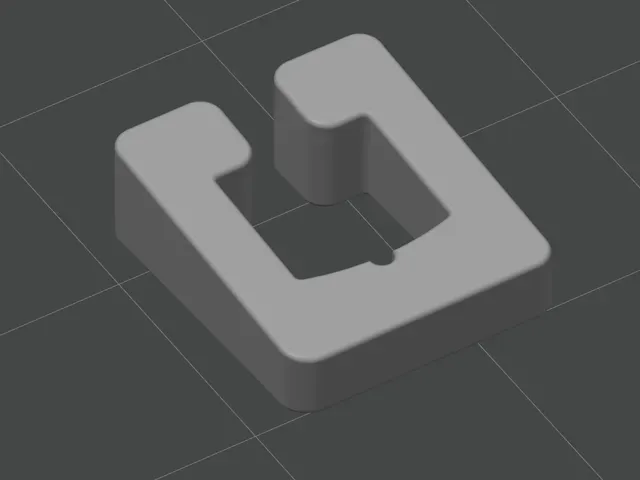

- Open C-shape: slides on and off without removing the rod - Compact footprint: 12 × 14 × 5 mm - Prints flat, no supports needed - Fits rods/rails up to 65 mm - Fast to print – a full plate takes only a few minutes per part Print Settings

- Printer: Bambu Lab P1S (works on any FDM printer) - Nozzle: 0.4 mm - Layer height: 0.2 mm - Walls: 2 - Infill: 15 % grid - Supports: not required - Material: PLA (PETG recommended for higher heat resistance) Notes

Orientation matters: keep the part flat on the plate as arranged in the profile. This gives the strongest layer alignment for the snap-on section.

For sunny windows, PETG or ASA is the safer choice – PLA can soften behind glass in direct summer sunlight.

Feedback

If the clip is too tight or too loose for your rod, let me know in the comments and I will look into adding size variants.
