Eccentric Mount – Adjustable Wall Mount & CAD Kit

One wall mounting interface. Your own hooks, holders and accessories.

Eccentric Mount is a modular wall mounting system with concealed screws and circular mounting bases that can be adjusted during installation. Use the ready-made holders or integrate the mounting interface into your own designs.

Each circular base is designed for a 4 mm wood screw. Its screw hole is offset by 3 mm from the centre. Rotating the base around the loosely fitted screw changes the position of the mounting interface, allowing small alignment corrections before final tightening. The available correction follows the eccentric movement; it is not independent adjustment in two directions.

The system supports two approaches:

- A holder fitted directly to a single circular wall base. - A holder attached to an intermediate plate using two wall bases. The intermediate plate provides a shared starting point for wider accessories and designs that need two mounting points.

Included file

- STEP cutting tool for creating the mating cavity in your own design. Installation

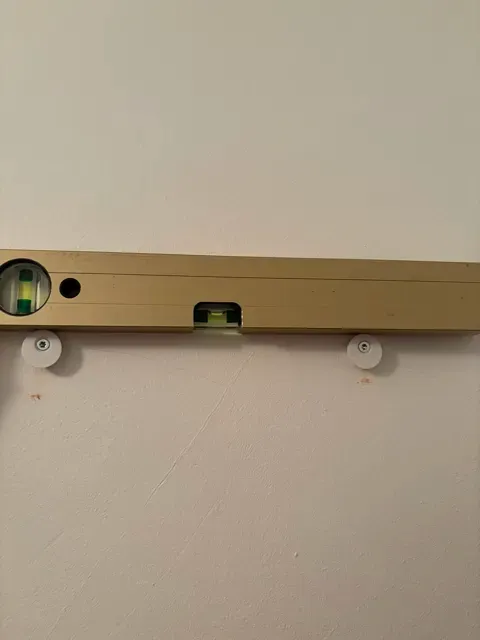

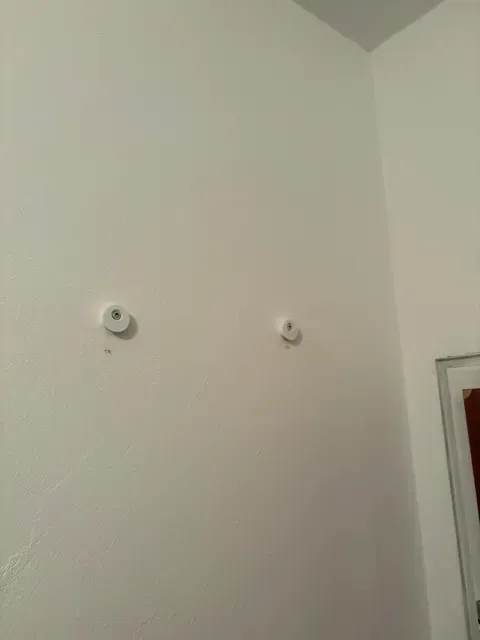

Fit suitable wall plugs where required. Loosely screw the circular bases into place, rotate them to adjust the alignment, then tighten the screws and fit the holder. For an assembly with two bases, check the required spacing and alignment before final tightening.

Choose screw length and wall plugs to suit the wall and application. The 4 mm specification refers to the screw diameter.

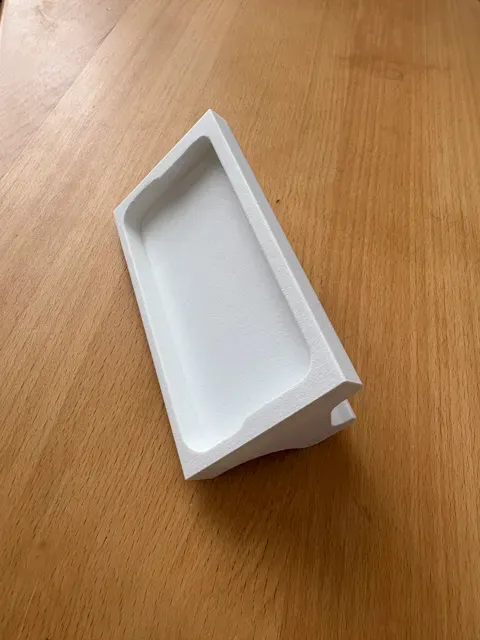

Holder fitted directly to a single circular wall base

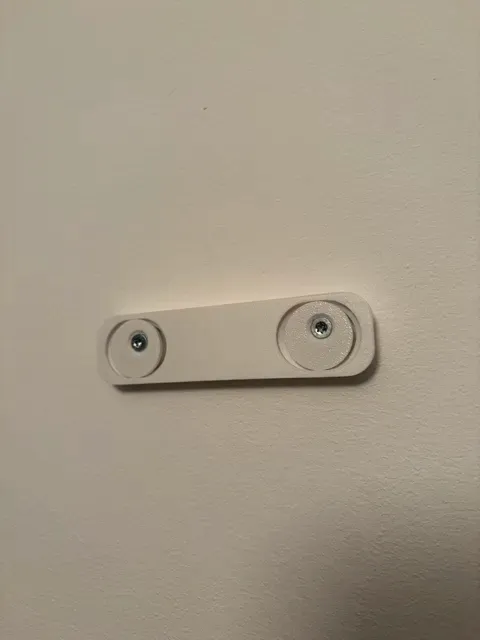

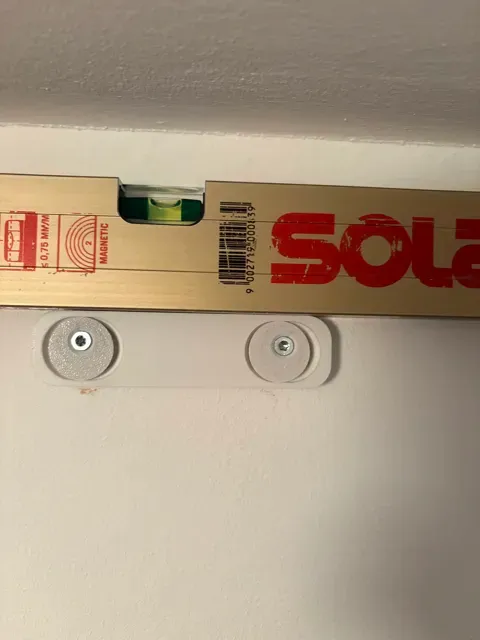

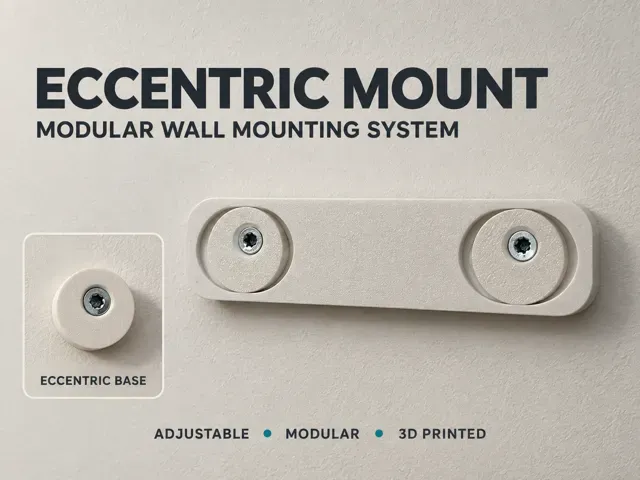

Holder attached to an intermediate plate using two wall bases

Explore the system

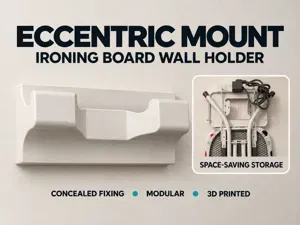

- Base system and CAD kit - Ironing board holder - Drying rack holder - Step ladder holder - All compatible models: Collection link Designed a compatible accessory? Share a photo or a link in the comments. Please reference this base system when publishing an extension and follow the selected licence.
