Toyota FJ Cruiser Ram Style Dash Mount

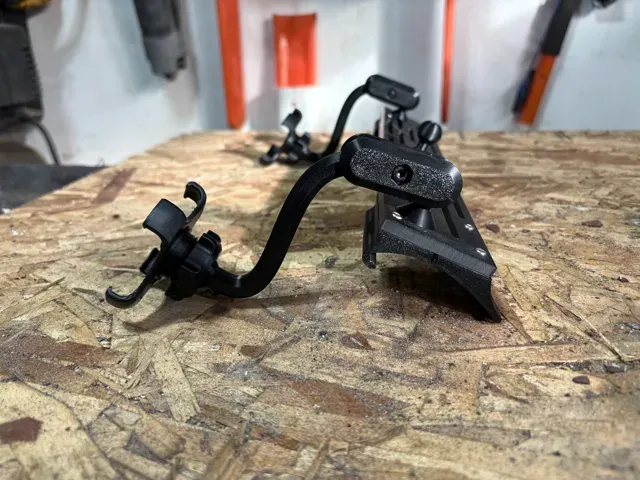

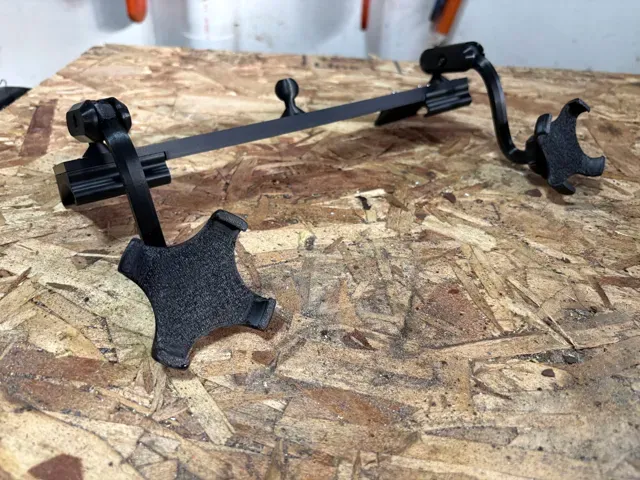

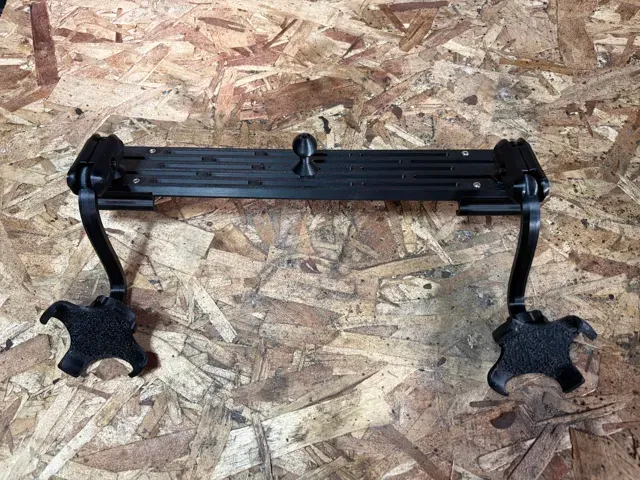

Modeled after a vent mount by @andreuha this Ram style mount plate and c size 17mm ball mount fit perfectly on my FJ Cruiser dash to mount my phone and radio.

It uses 8 M3x8 hex head screws and heat inserts.  The 17mm ball mount uses a M4 x 30mm bolt which goes the whole way though and bolts directly though the horizontal slots.  The bottom has channels for the m4 nuts to perfectly set into so no wrench is needed.

Some accessories I also printed to complete my mount as as follows:

Customized arms from this model. https://makerworld.com/en/models/3130504-octajoint-modular-ball-to-ball-extension-arm#profileId-3532809

The ball ends didn't print great through the handy app but when sliced in Bambu Studio came out great.

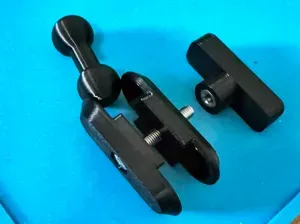

The 17mm ball clamp extender used is from this model https://makerworld.com/en/models/3231636-17mm-ball-clamp-and-extender#profileId-3660314 This printed great including the ball connector. I used anotherM4 x 20mm (or so) hex head bolt and nut for this as I didn't have any M5's here.

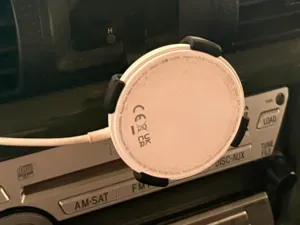

The mount for the Anker Magsafe charger is another one of my designs.  (Check my models for the link if it's not here)

The original mount and nut for the Anker mount I designed is from this model https://makerworld.com/en/models/1996954-17mm-ball-mount-adapter-socket-amps-30x38mm#profileId-2160354

I printed all parts in Bambu Black ABS on a P1S.
