Sun flower clicker•9g!!!

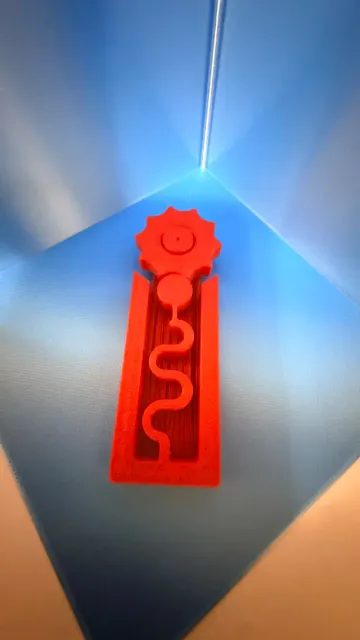

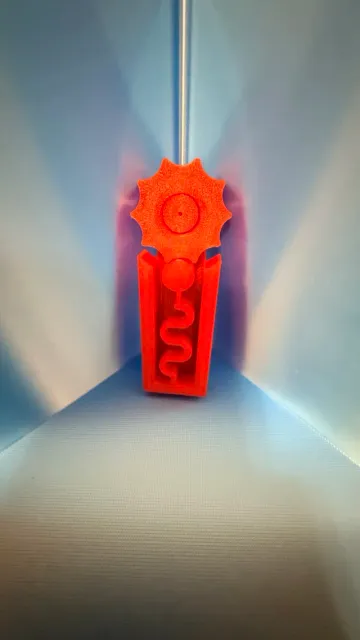

🌻 The Ultimate Sunflower Clicker Fidget Toy 🌻

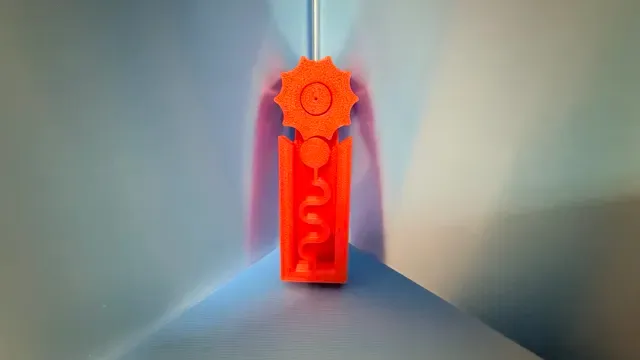

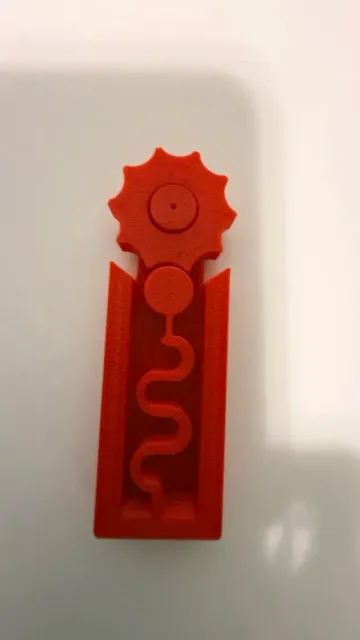

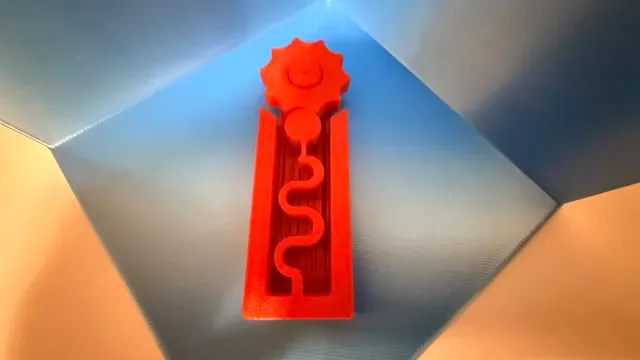

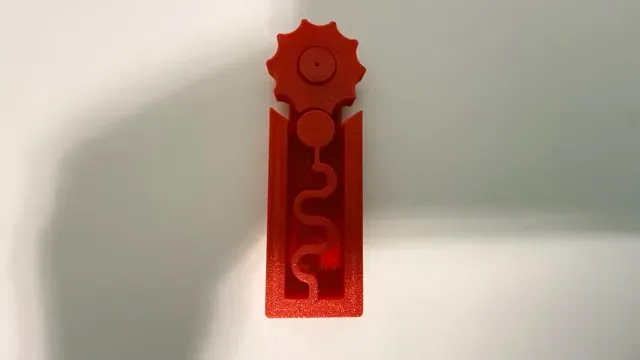

Welcome to the Sunflower Clicker ! This is a fun, satisfying, and easy-to-print mechanical fidget toy. It gives you a crisp, tactile click every time you press it down. Designed specifically for 3D printing, it uses a built-in plastic spring mechanism so you do not need any metal springs, screws, or extra hardware!

🌟 Key Features

- Crisp Tactile Feedback: The built-in plastic spring provides a firm, snappy click experience every single time you press it. - 100% Print-in-Place Assembly: Only 3 simple parts that easily snap together in just a few seconds. - Zero Supports Needed: Designed with optimized angles so you can print smoothly with NO supports required . - Durable Construction: Reinforced with 3 wall loops to make sure the spring lasts through thousands of clicks without breaking. - Fast & Lightweight: Uses less than 10 grams of filament and prints in under 40 minutes on standard settings. - Pocket-Sized Fun: Perfectly compact design makes it great to carry around as a quiet hand fidget. 📐 General Model Specifications

Property Value

3D Printer Model Bambu Lab P1S

Nozzle Size 0.4 mm (Standard Flow)

Print Bed Type Textured PEI Plate

Total Print Time 38 minutes

Preparation Time 6 minutes 30 seconds

Model Printing Time 31 minutes 29 seconds

Total Filament Used 9.67 grams (3.19 meters)

Filament Type PLA Basic

Supports Required NO (0 supports needed)

Total Parts Count 3 Parts ( Main Cover , Sun Ring , Cap )

📏 Component Dimensions & Object Volumes

Part Name Dimensions (Length x Width x Height) Object Volume

Main Cover 25.0 mm x 73.5 mm x 9.0 mm 8187 mm³

Sun Ring 27.8 mm x 26.5 mm x 6.5 mm 2575 mm³

Cap 12.0 mm x 12.0 mm x 6.0 mm 109.9 mm³

⚙️ Full Slicer Profile Settings

🔹 Quality, Layer Height & Line Width

- Layer Height: 0.16 mm ( High Quality Profile ) - Initial Layer Height: 0.20 mm - Default Line Width: 0.42 mm - Initial Layer Line Width: 0.50 mm - Outer Wall Line Width: 0.42 mm - Inner Wall Line Width: 0.45 mm - Top Surface Line Width: 0.42 mm - Sparse Infill Line Width: 0.45 mm - Internal Solid Infill Width: 0.42 mm - Support Line Width: 0.42 mm 🔹 Shells, Walls & Infill Structure

- Wall Loops: 3 loops - Top Surface Pattern: Monotonic - Top Surface Density: 100% - Top Shell Layers: 6 layers (1.0 mm total thickness) - Top Paint Penetration Layers: 6 layers - Bottom Surface Pattern: Monotonic - Bottom Surface Density: 100% - Bottom Shell Layers: 4 layers - Bottom Shell Thickness: 0 mm - Bottom Paint Penetration Layers: 4 layers - Internal Solid Infill Pattern: Rectilinear - Sparse Infill Density: 10% - Sparse Infill Line Count: 1 line - Sparse Infill Pattern: Cubic - Length of Sparse Infill Anchor: 400% - Maximum Length of Sparse Infill Anchor: 20 mm - Infill / Wall Overlap: 15% - Infill Direction: 45 degrees - Bridge Direction: 0 degrees - Minimum Sparse Infill Threshold: 15 mm² - Detect Narrow Internal Solid Infill: Enabled - Ensure Vertical Shell Thickness: Enabled - Detect Floating Vertical Shells: Enabled 🔹 Precision & Seam Alignment

- Seam Position: Aligned - Smart Scarf Seam Application: Enabled - Scarf Application Angle Threshold: 155 degrees - Slice Gap Closing Radius: 0.049 mm - Resolution: 0.012 mm - Arc Fitting: Enabled - X-Y Hole Compensation: 0 mm - X-Y Contour Compensation: 0 mm - Elephant Foot Compensation: 0.15 mm - Ironing Type: No ironing - Wall Generator: Classic - Order of Walls: Inner wall / Outer wall 🔹 Printing Speed Profile

- Initial Layer Speed: 50 mm/s - Initial Layer Infill Speed: 105 mm/s - Outer Wall Speed: 60 mm/s - Inner Wall Speed: 150 mm/s - Small Perimeters Speed: 50% - Small Perimeter Threshold: 0 mm - Sparse Infill Speed: 200 mm/s - Internal Solid Infill Speed: 200 mm/s - Vertical Shell Speed: 80% - Top Surface Speed: 150 mm/s - Slow Down for Overhangs: Enabled - Overhang Speed (10%): 60 mm/s - Overhang Speed (25%): 30 mm/s - Overhang Speed (50%): 10 mm/s - Overhang Speed (75%): 10 mm/s - Overhang Speed (100%): 10 mm/s - Bridge Speed: 50 mm/s - Gap Infill Speed: 250 mm/s - Travel Speed: 500 mm/s 🔹 Machine Acceleration Settings

- Normal Printing Acceleration: 4000 mm/s² - Travel Acceleration: 10000 mm/s² - Initial Layer Travel Acceleration: 6000 mm/s² - Initial Layer Acceleration: 500 mm/s² - Outer Wall Acceleration: 2000 mm/s² - Inner Wall Acceleration: 0 mm/s² - Top Surface Acceleration: 2000 mm/s² - Sparse Infill Acceleration: 100% 🔹 Bed Adhesion & Special Modes

- Skirt Loops: 0 - Brim Type: Auto - Brim-Object Gap: 0.1 mm - Prime Tower Enable: Enabled - Prime Tower Width: 35 mm - Prime Tower Max Speed: 90 mm/s - Prime Tower Brim Width: 3 mm - Slicing Mode: Regular - Print Sequence: By layer - Fuzzy Skin: None 🛠️ Easy Step-by-Step Assembly Guide

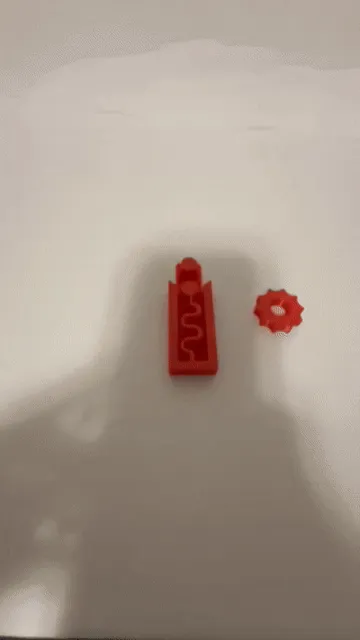

- Print the Parts: Place all three model components flat on your build plate and send the job to your 3D printer. Remember that no supports are needed for any part of this build! - Prepare the Main Housing: Once printed, remove the Main Cover , the Sun Ring , and the Cap from the print bed. Give the built-in plastic spring inside the main body a light push to make sure it flexes smoothly. - Insert the Sunflower Ring: Slide the Sun Ring piece directly into the sliding track located on the top side of the Main Cover . - Lock it in Place: Align the small Cap over the center retention hole and press down firmly to snap all parts into a single locked assembly. - Start Fidgeting: Press down on the sunflower top to compress the internal spring and enjoy your brand-new tactile clicker!
