A standard 7x1 Gridfinity bin that actually fits on smaller printer beds, thanks to a clean, strong dovetail split with built-in alignment tabs.

See my other models for more sizes. If you need any specific size, ask in the comments and I should be able to make one fast.

Collections:

Split Gridfinity 3U Tall

Split Gridfinity 5U Tall

Split Gridfinity 7U Tall

Split Gridfinity 9U Tall

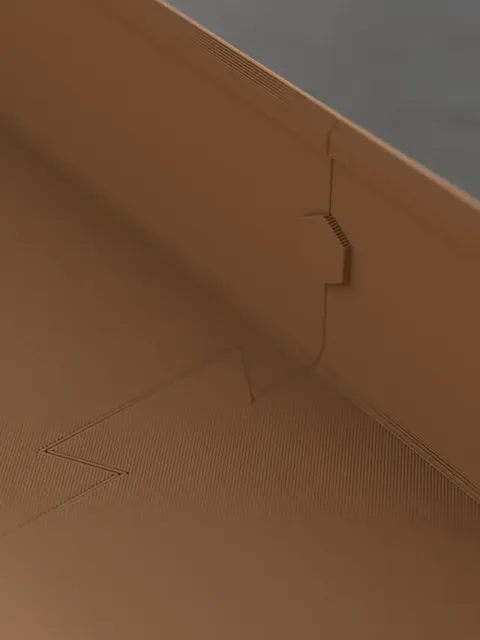

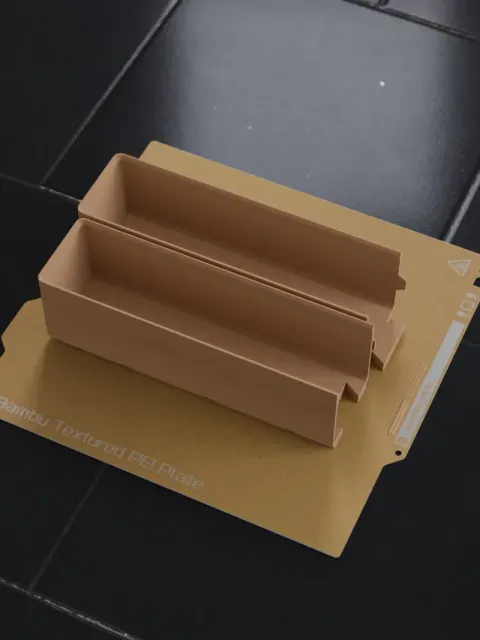

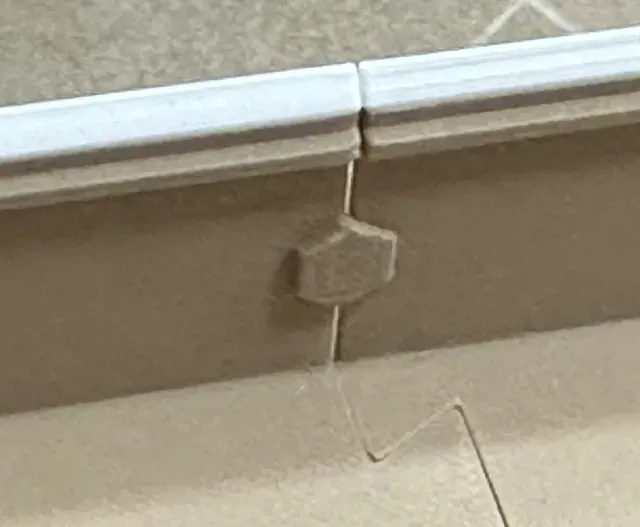

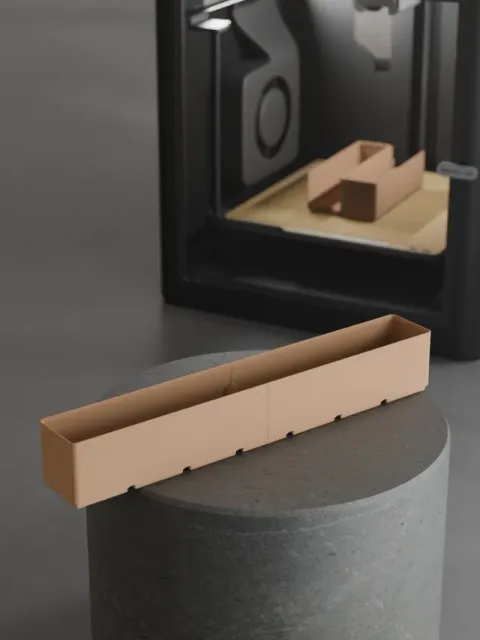

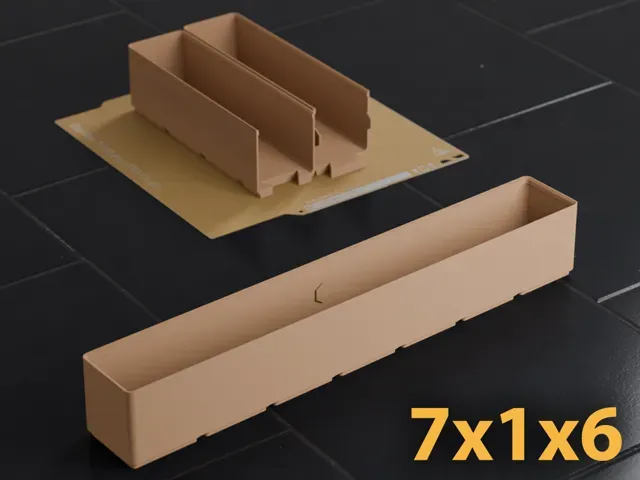

This model is a 6-unit-tall Gridfinity bin (~45.8mm tall) , split into printable sections so it fits cleanly on the Bambu Lab A1 Mini , and I also included a Bambu Lab P1S profile for anyone printing on a larger bed. I've added alignment tabs along the split so the sections self-register during assembly, keeping the sides perfectly aligned and helping prevent side-to-side movement.

Every model includes both a tight profile and a loose profile. I prefer the tight version because it is very snug and doesn't move. The loose version is there for anyone who wants easier assembly and disassembly or whose printer runs a little looser on tolerances.

Features

- True Gridfinity standard sizing - 7x1 footprint - 6 units tall (~45.8mm tall) - A1 Mini and P1S profiles included - Tight and loose dovetail fit options - Dovetail split for strength with alignment tabs - Prints flat, no supports required - Works great with PLA, PETG, or ABS Perfect For

- Long tools - Electronics parts - Desk organization - Modular drawer systems - Zip tie storage - Chip clips Printing Instructions

Recommended Settings

- Layer height: 0.2 mm - Walls: 3-4 - Infill: 10-20% (Gyroid or Cubic) - Supports: None - Brim: Optional (only if your material tends to warp) Assembly

- Dry-fit first - Start with the tight profile if your printer is well tuned - Use the loose profile if you want easier removal or your machine prints slightly oversized - Glue is optional, but CA glue or a plastic-safe adhesive works well if you want a permanent assembly ⭐️ If this model helps, boosts are hugely appreciated and help others find this set of split Gridfinity bins .
