Microphone Boom Arm to Monitor Column Adapter

Description:

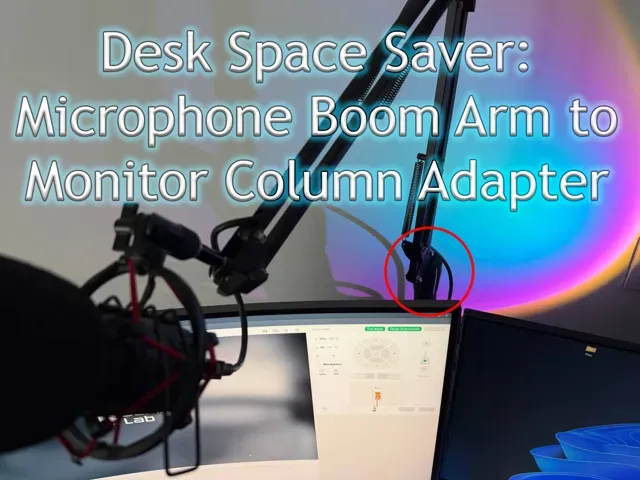

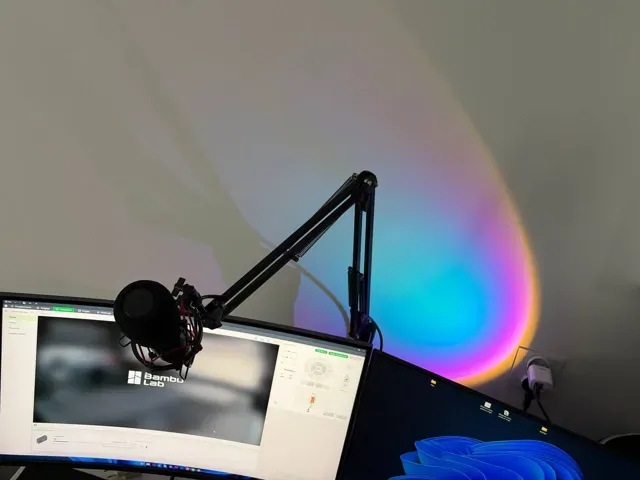

Tired of a cluttered desk? This custom 3D printed adapter lets you reclaim your valuable desk space by moving your microphone boom arm from its original table clamp onto the main vertical column of your monitor stand. This creates a very clean, professional-looking setup and frees up space for keyboards, mice, and other devices.

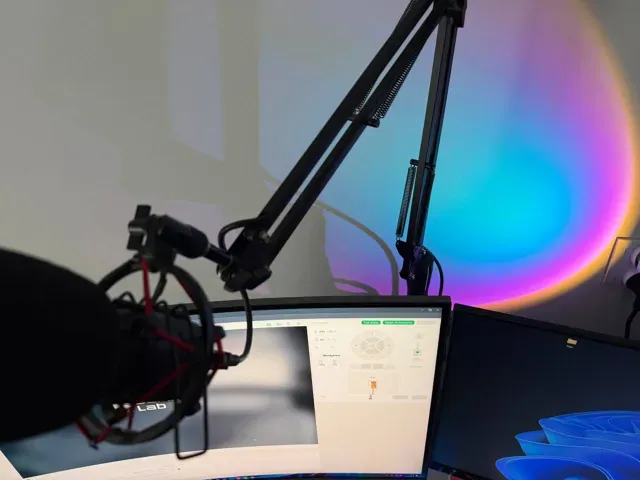

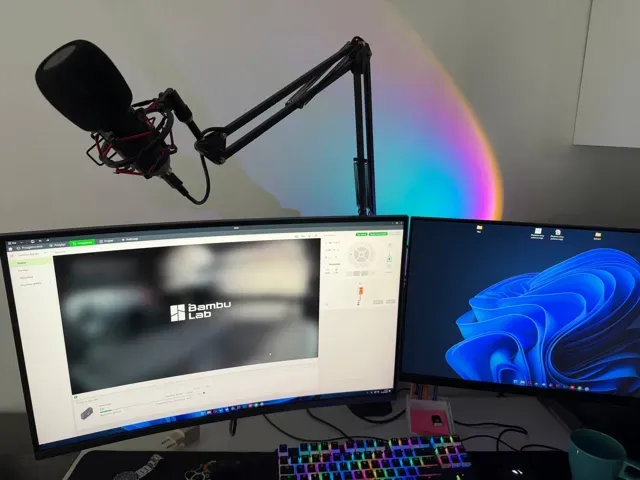

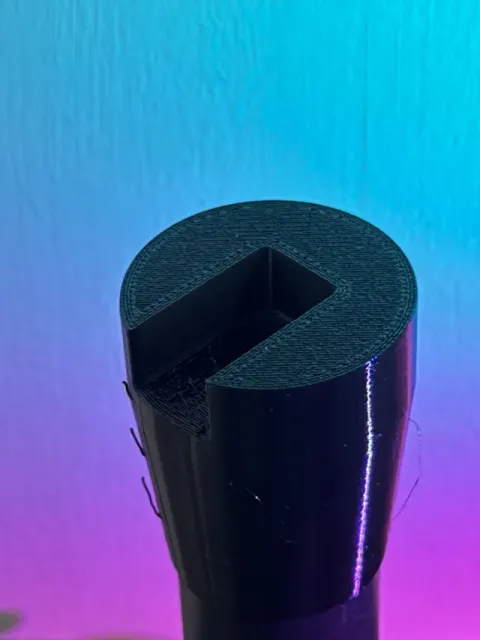

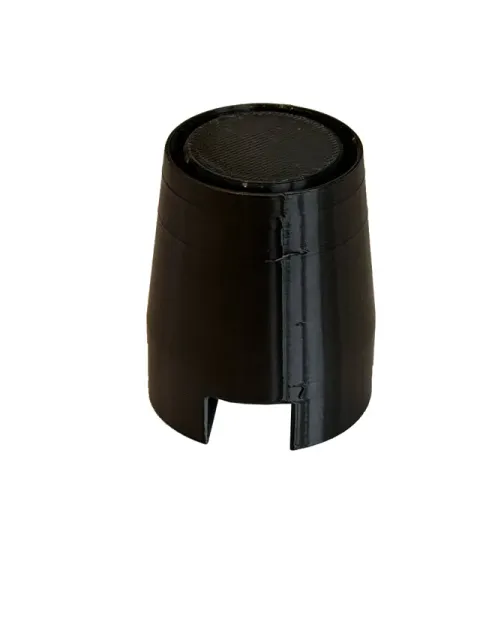

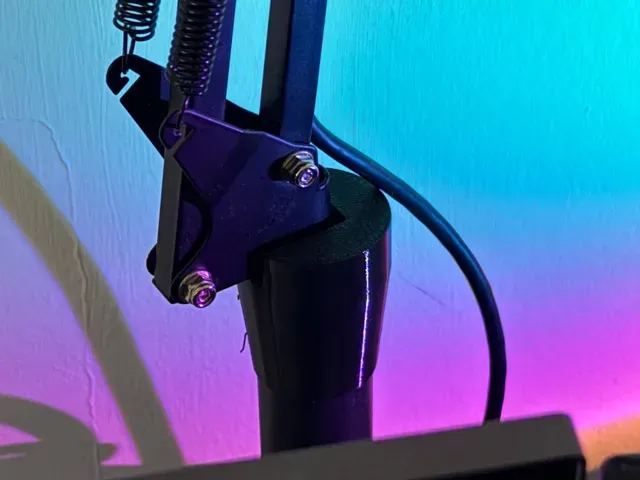

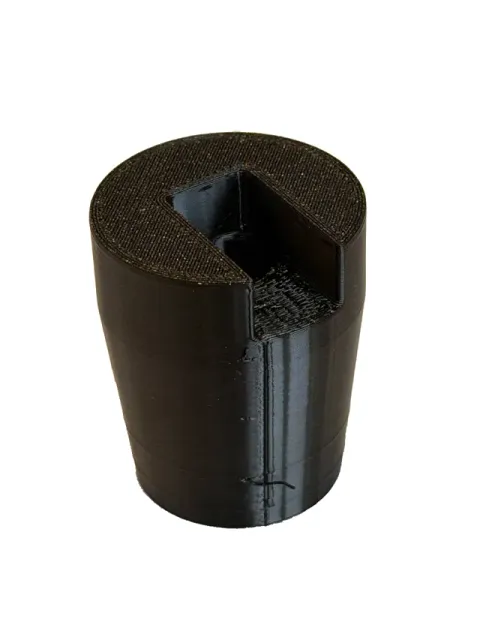

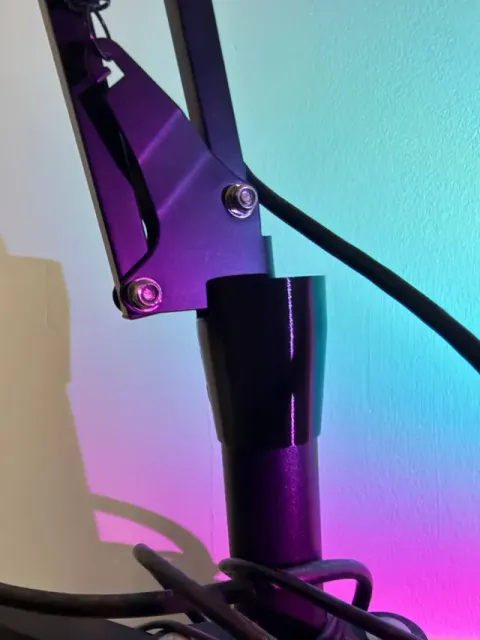

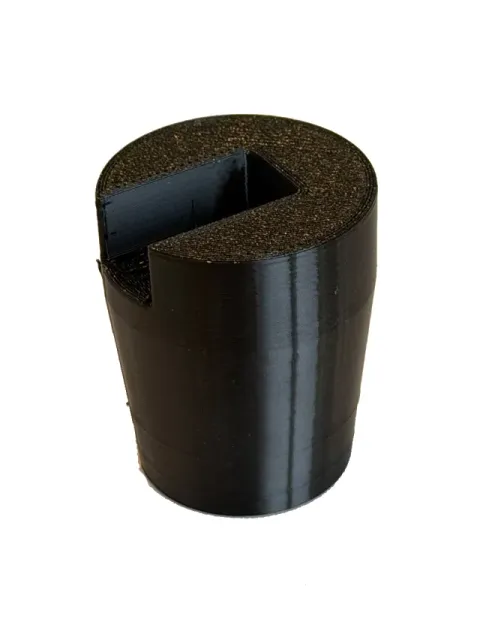

This sturdy adapter (as shown in the images) securely clamps onto the main monitor stand pole. The top of the clamp features a square socket designed to accept the square base common to many popular microphone boom arms (like the one shown). The specific model shown was designed for a tight fit and uses a 30.74mm main clamp diameter to attach to the monitor stand column (based on user measurements).

Features:

- Reclaims Desk Space: Moves the bulky mic arm mount off your desk surface. - Clean Aesthetics: Hides cables and gives a streamlined "floating" look. - Sturdy Design: Features 3 walls and high infill for stability. Key Features:

- Fits standard microphone boom arms with a square base post. - Adapts to popular monitor stand vertical columns (approx. 30mm diameter). - Print-in-place, single-piece design (based on images). Printing Instructions:

For best results, this part needs to be rigid and durable. We recommend printing in a stronger filament.

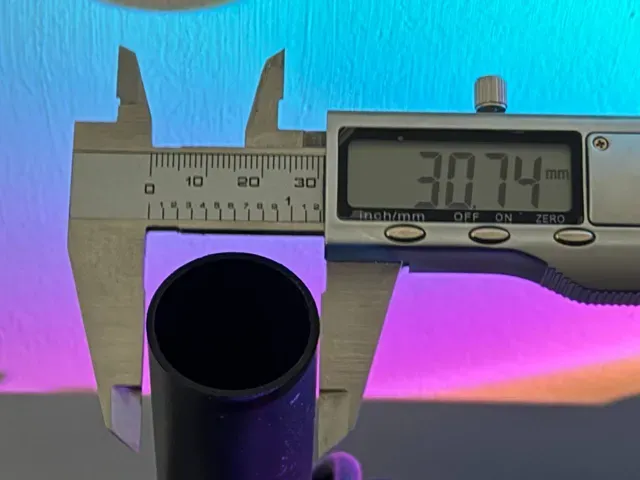

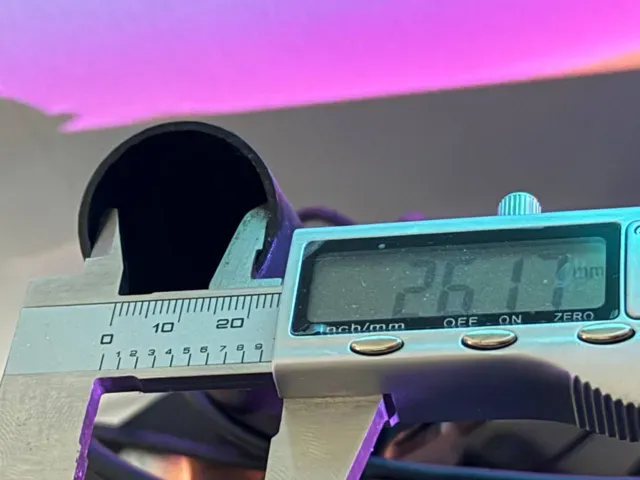

- Material: PETG or ASA (Recommended). Standard PLA may creep under the torque of the mic arm over time. - Walls/Perimeters: 3 (Minimum) - Infill: 20% - Infill Pattern: 3D Honeycomb (User specified) or Gyroid. - Supports: Should be support-free if printed in the orientation shown (with the square socket facing up). - Orientation: Print vertically as designed to maximize the strength of the clamp mechanism. Critical Note on Tolerances: The STL file is sized for specific column diameters (referencing the 30.74mm and 26.17mm measurements shown). For a perfect fit, you may need to print a small test ring first, or scale the entire STL slightly (e.g., 99.5% to 100.5%) to account for your printer's tolerances.

Assembly:

- Slide or snap the printed clamp onto the desired height of your monitor stand's main vertical column. - Gently insert the base post of your microphone boom arm into the top square socket. (It should be a tight, secure press-fit). - Route your cables neatly. Enjoy your new space!
