# Modular Wall-Mounted Board Rack – LAND & WATER PACK

Modular wall-mounted storage system for boards and sports equipment.

The system is designed to store different types of boards horizontally while making efficient use of wall space.

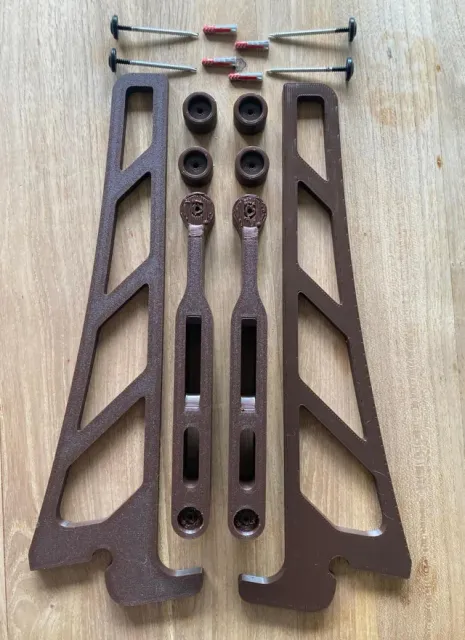

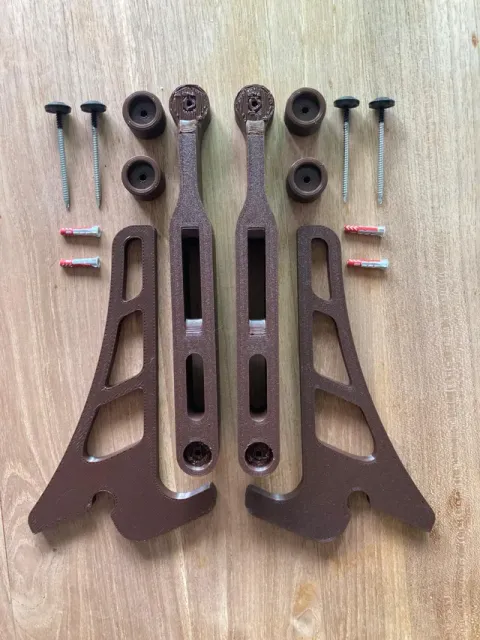

It consists of permanent wall-mounted brackets and removable arms. The arms can be installed or removed without having to remove the wall brackets.

## TWO PACKS INCLUDED

Both versions are included in this download:

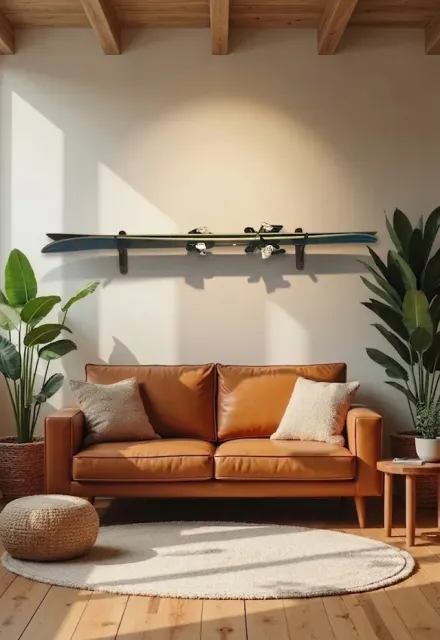

### LAND PACK – SHORT ARMS

Designed for narrower boards and equipment such as:

- Skateboards - Surfskates - Longboards / Longskates - Snowboards - Skis

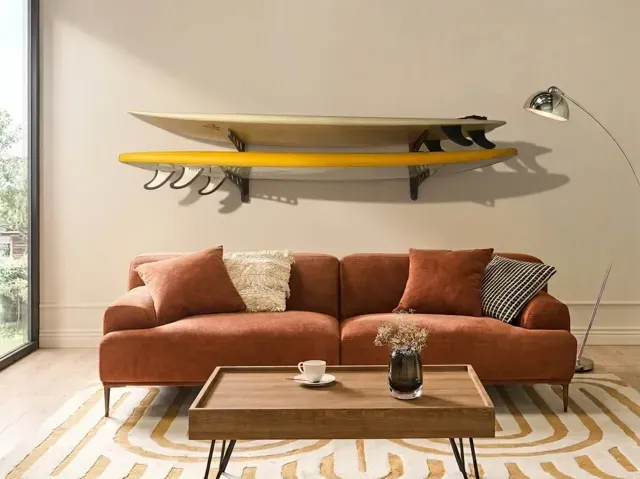

### WATER PACK – LONG ARMS

Designed for wider equipment such as:

- Surfboards - Foil boards - Wakeboards

## MODULAR WALL STORAGE

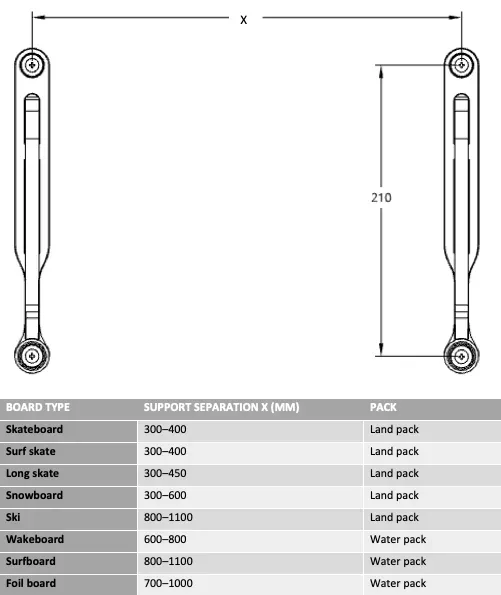

The distance between the wall brackets can be adapted to the length of the board, while the arm length is selected according to the board width.

This allows the same system to be adapted to different board sizes and types.

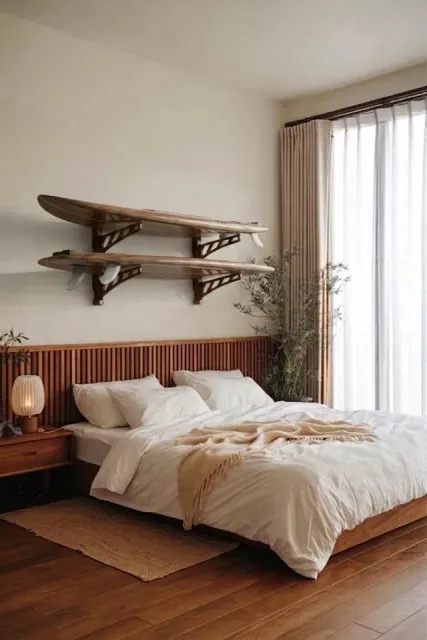

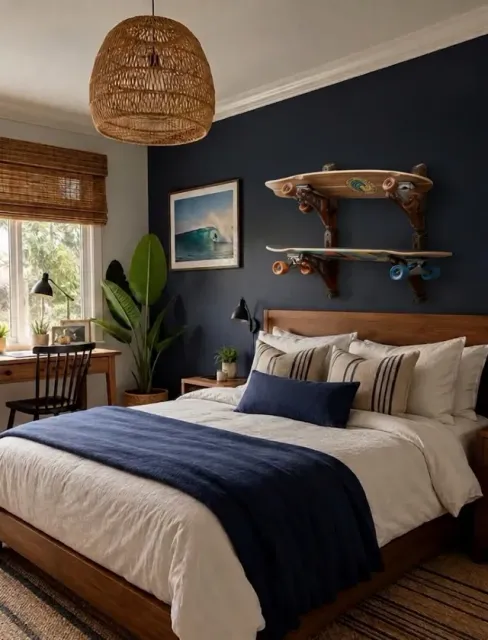

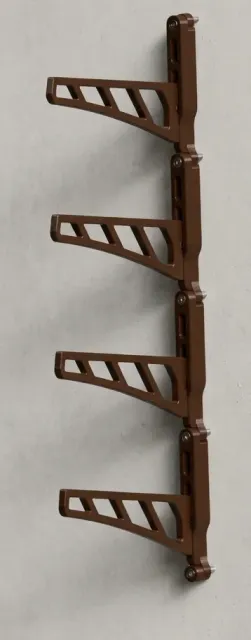

When the dimensions allow it, several boards can be stored one above another, making efficient use of the available wall space while keeping the boards separated.

## EXTRA STORAGE

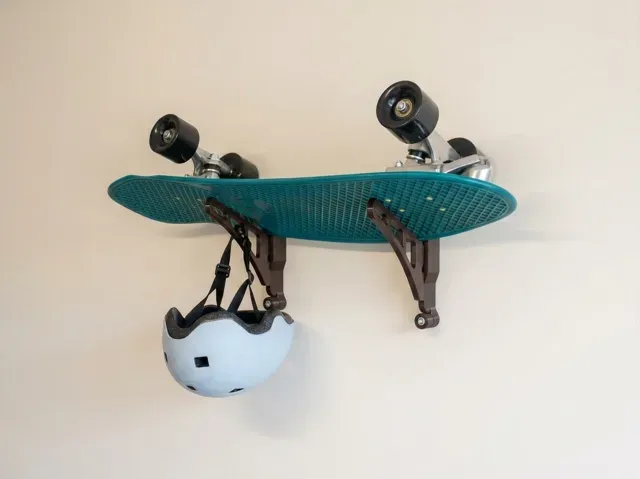

The arms include additional slots that can be used to hang other sports equipment and accessories, such as:

- Helmets - Gloves - Backpacks - Hangers with wetsuits - Other sports accessories

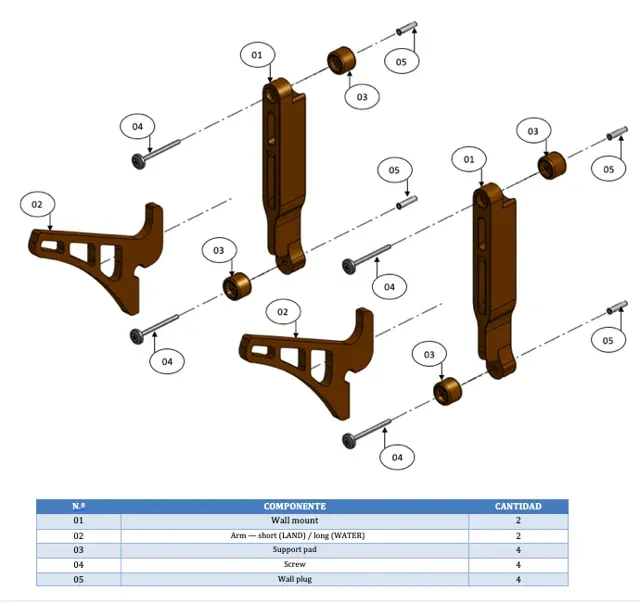

## REQUIRED HARDWARE

The wall brackets are designed to be installed using the following hardware:

- 4 mm diameter screws, 60 mm long - 5 × 25 mm wall plugs - Washers with a maximum outer diameter of 16 mm

The screws are intended to be installed through the printed wall bracket and into the 5 × 25 mm wall plugs.

The required hardware is NOT included in the download.

Always use fixing hardware suitable for your specific wall type and make sure the installation can safely support the intended load.

### LAND PACK

The short arms can be printed on standard-sized 3D printers.

### WATER PACK

The long arms are designed to be printed on a Bambu Lab A2L.

The long arms do not fit on smaller print beds.

If you have a smaller 3D printer, the long arms will need to be modified or split into multiple parts before printing. Subject to the terms of the selected MakerWorld license.

Both LAND and WATER versions are included in the same download.

## RECOMMENDED PRINTING

The parts have been tested using the following printing configuration:

- Nozzle: 0.8 mm - Material: PETG - Walls: 3 - Infill: 15%

Other print settings may also work depending on the printer, material and intended load.

For the best mechanical performance, make sure the parts are printed in the recommended orientation and with sufficient wall thickness.

The recommended settings are provided as a reference and may need to be adjusted depending on your printer and filament.

## IMPORTANT

This is a 3D printable design, not a physical product.
