Vented Funnel for SodaStream Bottles | No Supports

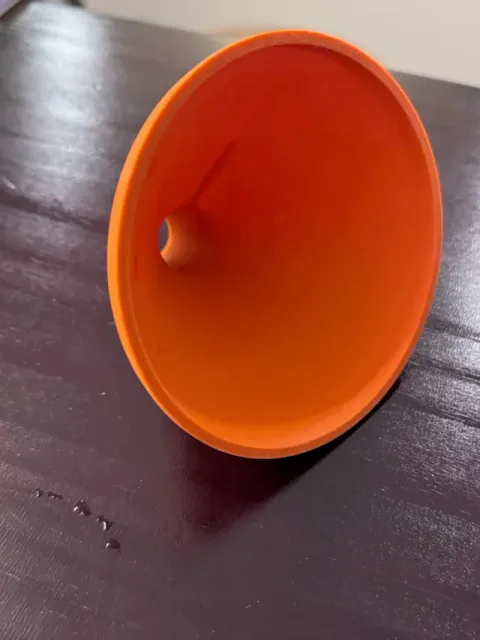

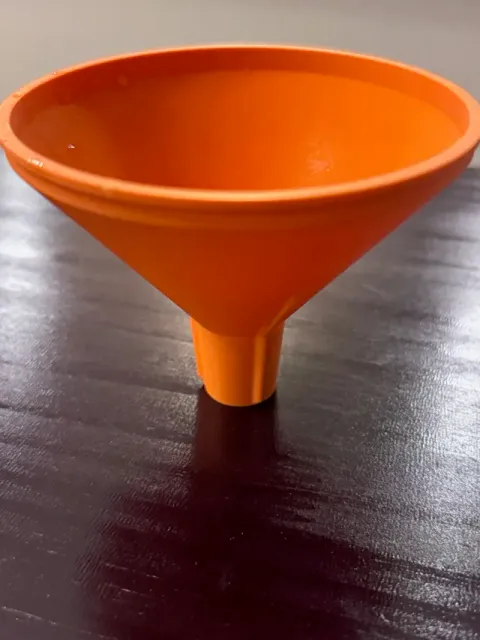

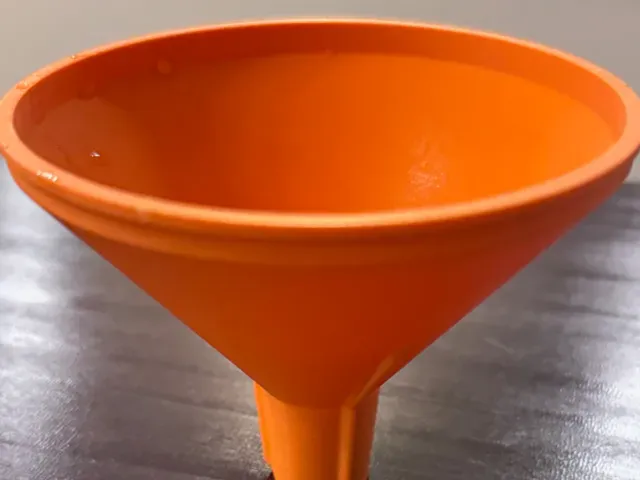

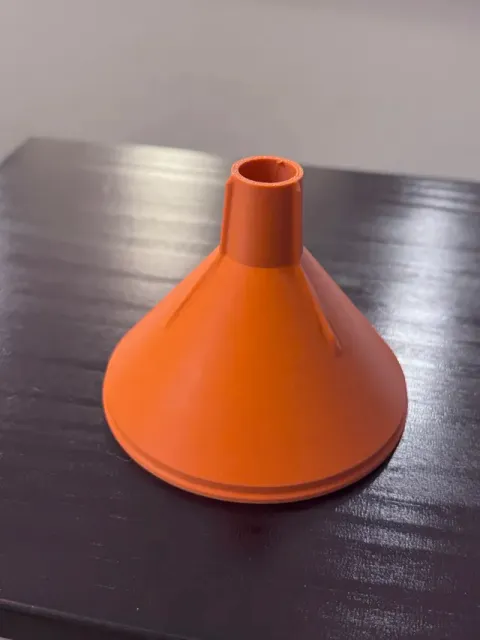

Make filling your SodaStream bottle easier with a simple, one-piece funnel. The wide opening helps catch the water stream, while three external ribs leave space for air to escape around the bottle neck.

The funnel rests in the opening without threads, making it easy to insert and remove.

Features:

- Wide 96 mm opening. - 16 mm outlet for water flow. - Three external ribs to maintain an air gap. - One-piece design with no assembly. - Designed to print without supports. Dimensions and fit:

- Overall size: 102 × 102 × 78 mm. - Tapered spout: 20–24 mm outer diameter, excluding ribs. - Intended for bottle openings approximately 28–38 mm across. Compatibility depends on the bottle’s internal neck shape. Fit has not been verified across all SodaStream bottle models. Check that the funnel rests freely without forcing it into place.

Print settings:

- Orientation: narrow spout on the build plate. - Nozzle: 0.4 mm. - Layer height: 0.20 mm. - Walls: 4. - Supports: disabled. - Outer brim: 5 mm. - PLA or PETG; select the correct profile for your filament. Use with cold water only. Fill to the bottle’s marked fill line and remove the funnel before carbonation. The funnel does not automatically prevent overfilling.

Food-contact suitability depends on the filament and printing process; ordinary PLA or PETG prints are not automatically food safe. Avoid hot water and dishwashers, especially with PLA.
