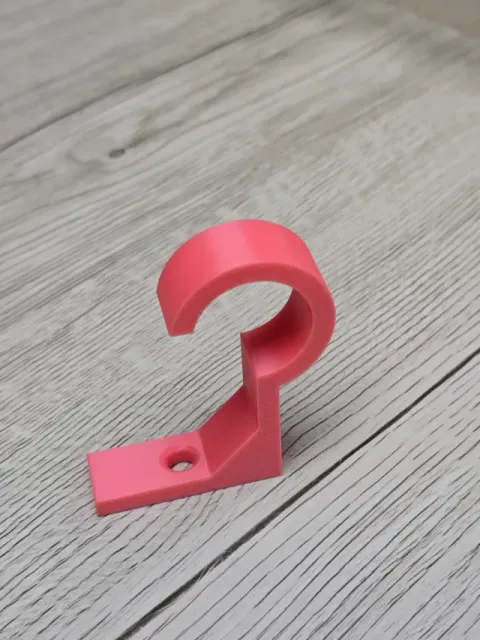

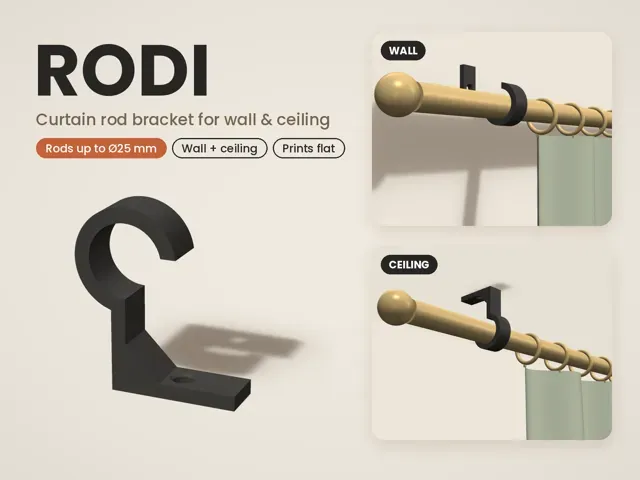

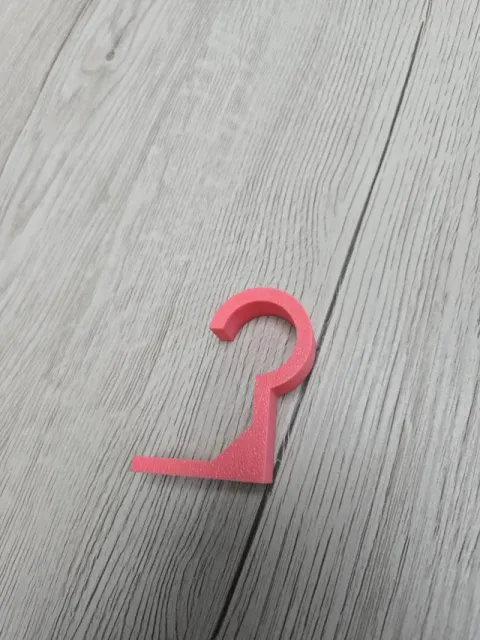

RODI – Curtain Rod Bracket Wall & Ceiling max 25mm

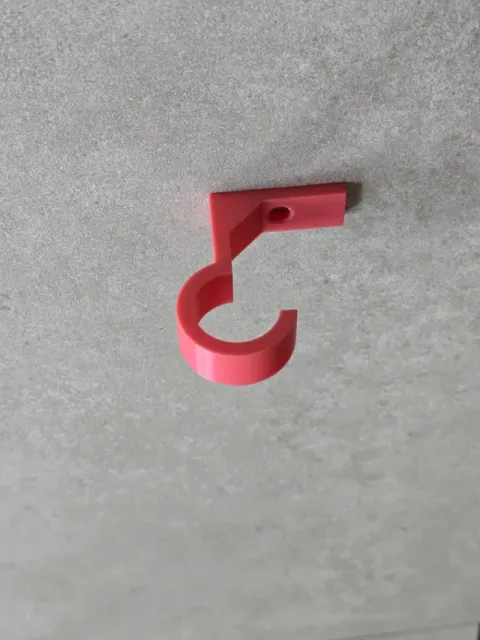

RODI is a simple, strong curtain rod bracket that works on both the wall and the ceiling. One screw, done.

The hook holds rods up to Ø 25 mm. Rods up to about 19 mm can be lifted in through the side opening, so you can take your curtain down without unscrewing anything. Thicker rods slide in from the end.

DIMENSIONS - Size: 55 × 62 × 15 mm - Inner diameter hook: 25 mm - Rod center to wall / ceiling: 44.5 mm - Screw hole: Ø 6.4 mm, countersunk

PRINT SETTINGS (as in the included profile) - Printer: Bambu Lab A1, 0.2 mm nozzle - Material: PLA - Layer height: 0.1 mm - Walls: 4 - Infill: 15% grid - Orientation: on its side, as in the 3MF. Every layer is the full hook shape, which makes it strong - Supports: not needed

For heavy curtains: use 5 walls, 20–25% infill, or print in PETG.

MOUNTING - 1 screw per bracket: 4–5 mm countersunk or pan-head, about 35 mm long, with a 6 mm wall plug - For plasterboard ceilings, use cavity anchors - The screw hole sits right under the tip of the hook. Put the screw in first and use a long, slim bit at a slight angle - On the wall, the load hangs directly under the screw, so the bracket stays straight - For long rods, add an extra bracket in the middle (about every 1–1.5 m)

Made something with RODI? Post a make, I'd love to see it!
