MEMENTO Fuzzy: photo frame, 10x15 cm (4x6")

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
уточняйте на площадке
Условия задаёт автор — проверьте их на странице модели, прежде чем печатать на продажу.
Форматы
STL
  • 0 Лайки
  • 1 Загрузки
  • 1 Напечатали
  • 6 В подборках
  • 0 Бусты
  • 0 Комментарии
  • 0 Просмотры

Автор:CHRISTIVVN

Опубликована

Описание

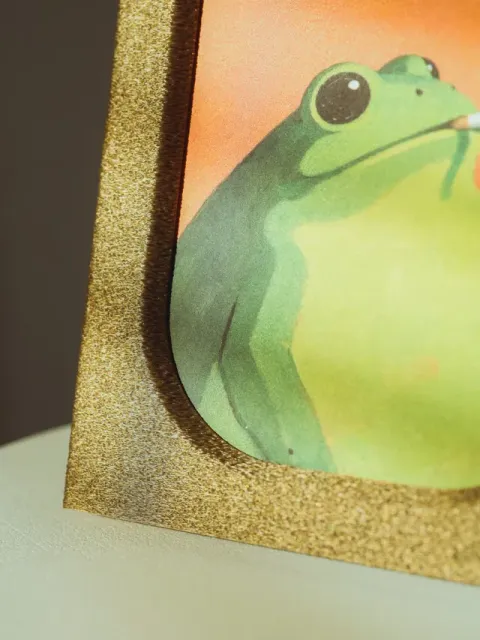

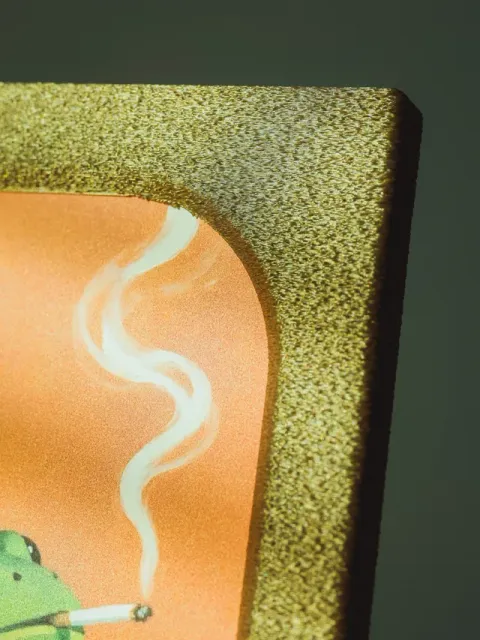

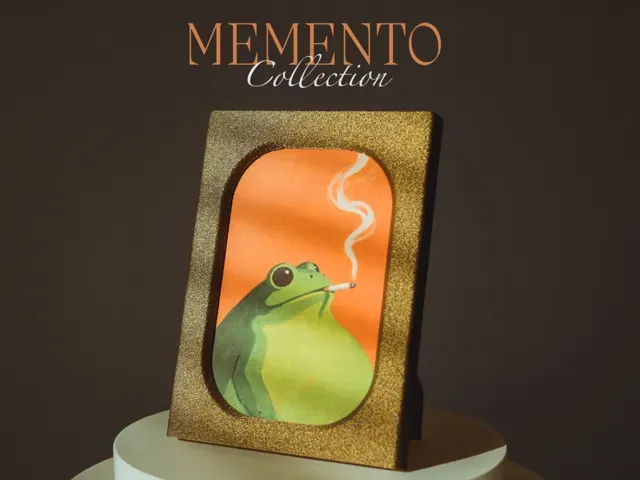

A flat photo frame with a soft, velvet-like surface and a rounded opening,

for 10x15 cm (4x6") prints. The texture is fuzzy skin, already painted into

the file. Fuzzy is part of MEMENTO , a collection of photo frames that all

share one universal back panel.

WHAT YOU GET

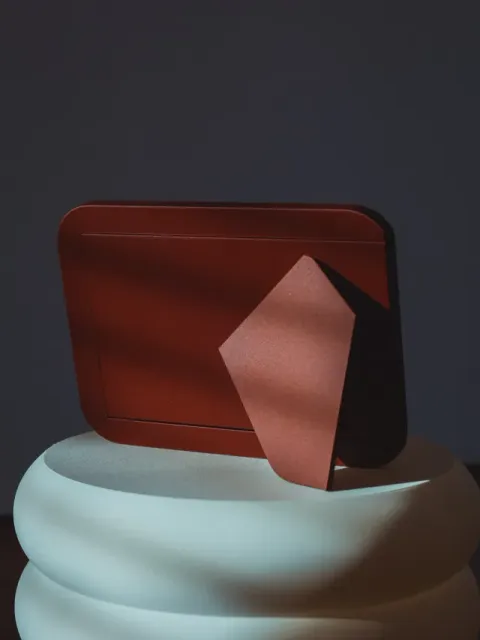

- Frame: 136 x 182 x 13 mm, a flat face with softly rounded edges and an - opening with large rounded corners - Universal back panel with built-in stand: 111 x 166 x 7.2 mm - Pre painted fuzzy skin - No glue, no screws, no glass HOW IT WORKS

- Drop your photo into the recess from the back. - Slide the back panel in from the bottom until it clicks. - Done. The frame leans back 15 degrees and stands in portrait or landscape. PHOTO

- Size: 10x15 cm / 4x6" - The recess takes paper up to about 0.5 mm thick, so fine art paper fits too. - The frame covers only 3 mm of the photo on each side: about 90% of the print stays visible. PRINTING

- Frame: printed upright, with tree supports from the build plate only. The front stays clean, without layer steps across the curve. - Back panel: printed standing on its stand, with a brim. - Full settings are in the print profile. ONE BACK, EVERY FRAME Every MEMENTO frame uses the same back panel and the same click fit. Print one back and swap the front whenever you like.

See the other frames in the MEMENTO collection:

MEMENTO Curvy MEMENTO Puffy

MEMENTO Groovy

MEMENTO Wobbly

Руководства и профили печати

Профили печати и шаги

0.12mm layer, 3 walls, 10% infill -  Fuzzy skin: painted areas only, thickness 0.3 mm, point distance 0.5 mm -  Layer height 0.12 mm, 0.4 mm nozzle, Textured PEI plate -  3 walls, 5 top and bottom layers, 10% gyroid infill -  Tree supports (slim), build plate only, threshold 30 degrees -  Support interface: 3 layers, spacing 0.2 mm, top Z distance 0.24 mm -  Outer brim 8 mm. Do not skip it on the back panel: it only touches the bed with its stand. -  Seam at the back
