Parametric Stackable Storage Box & Organizer

Fully Parametric & Stackable Storage Box Generator

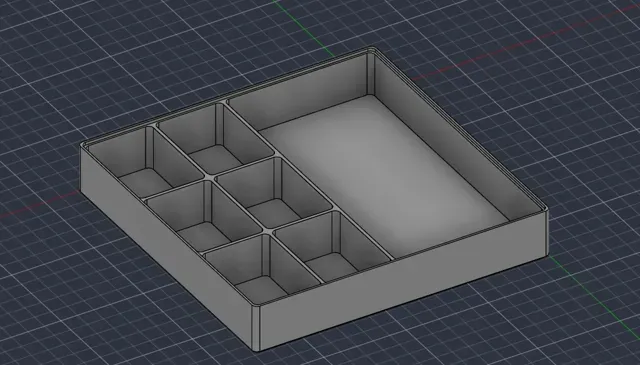

Organize your workshop, desk, electronics, or board game components with a single, fully customizable 3D model. Designed in Autodesk Fusion, this generator lets you tailor the exact dimensions, grid divisions, and full-length side compartments to fit your drawers or shelves.

Key Features:

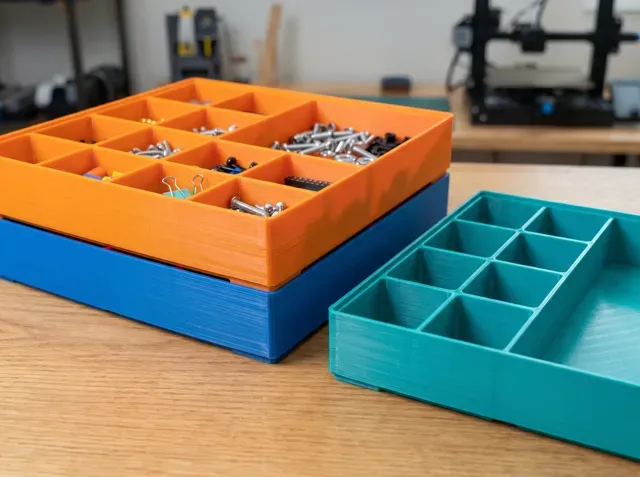

- 100% Parametric: Easily adjust external dimensions (box_length, box_width, box_height) and corner radii. - Custom Grid & Side Bays: Combine a standard X/Y compartment grid with one or more full-length side compartments (side_bay_count & side_bay_width)—perfect for longer tools, pens, or cables alongside small screws and electronic components. - Optional Interlocking Stacking: Toggle the stacking lip (stack_enable = 1 or 0) to securely stack multiple boxes on top of each other or print a clean, flat top edge. - Optimized for 0.4mm Nozzles: Default wall thicknesses (2.4mm outer, 1.2mm inner) are calculated for fast, gap-free perimeter printing without unnecessary infill. Available Parameters:

- box_length / box_width / box_height : Overall exterior dimensions (X, Y, Z). - div_count_x / div_count_y : Number of internal dividers in the main grid. - side_bay_count : Number of full-length side compartments (0 to disable). - side_bay_width : Interior width of each full-length side compartment. - stack_enable : Enable (1) or disable (0) the interlocking stacking rim. - stack_clearance : Tolerance for the stacking mechanism (default 0.3mm). - bottom_thick / wall_inner / corner_radius : Fine-tune structural geometry. Recommended Print Settings:

- Material: PLA, PETG, or ABS - Layer Height: 0.20 mm - Wall Loops / Perimeters: 3 - Infill: 15% (Grid or Gyroid) - Supports: None required! Boost Me id this parametric organizer help tidy up your workspace or workshop? If you found the customizer useful, please consider leaving a Boost! Every Boost goes directly toward filament for testing and developing more customizable tools and organizers. Thank you! 🙌
