Lint Roller Handle Replacement for IKEA Bastis

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
3MFSTL
  • 0 Лайки
  • 0 Загрузки
  • 0 Напечатали
  • 0 В подборках
  • 0 Бусты
  • 0 Комментарии
  • 0 Просмотры

Автор:Zalusky

Опубликована

Описание

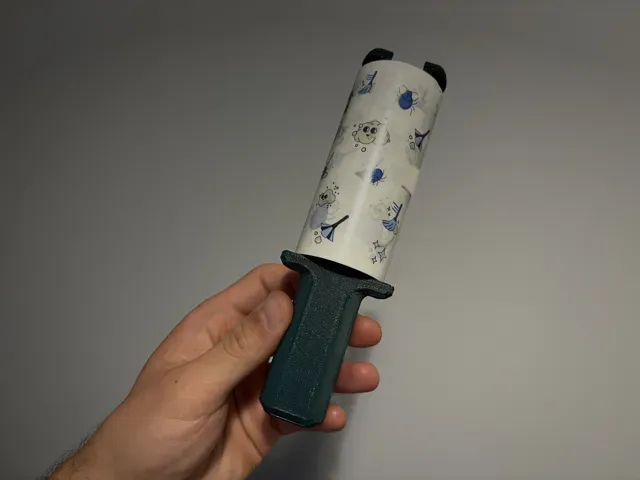

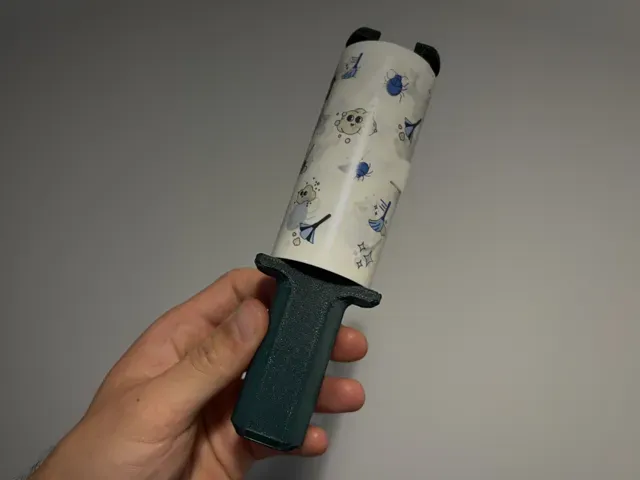

Broken lint roller handle? Or maybe you bought a multipack of lint roller refills (like IKEA BÄSTIS) and need an extra holder? This heavy-duty Snap-Fit Lint Roller Replacement Handle turns any standard 100 x 38 mm (4 x 1.5 inch) sticky roll refill into a ready-to-use clothes and pet hair cleaner in seconds!

Why This Design Works Better:

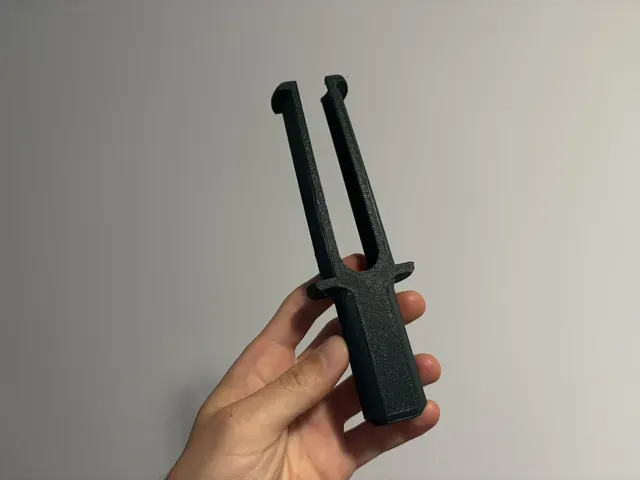

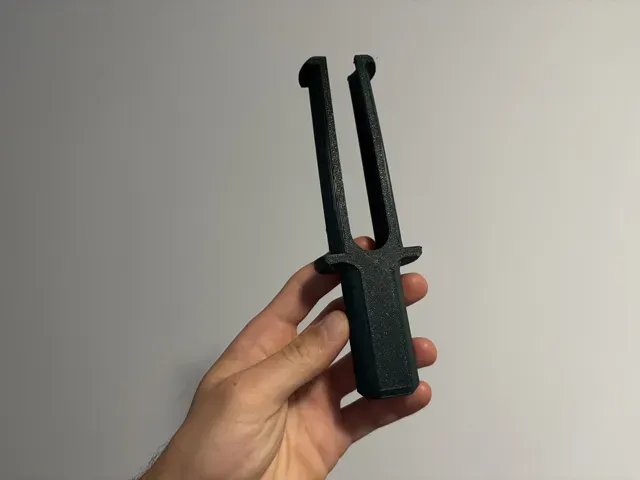

- Unbreakable Layer Orientation (100% Flat Print): Unlike cylindrical handles printed vertically that easily snap along layer lines, this holder prints completely flat on the build plate. The filament perimeters run along the full length of the flexing arms, giving the snap-fit prongs maximum strength and spring-like flexibility. - Secure Snap-Fit Mechanism: Simply slide your lint roller refill over the prongs until the top retaining clips click into place. The roll spins smoothly in your hand without sliding off during use. - No Supports & Only 33g of Filament: Prints cleanly straight on the print bed in about 2 hours using just 33 grams of filament, with zero support material and zero post-processing. - A1 Mini Compatible: Fits easily on the Bambu Lab A1 Mini (180x180 mm) build plate as well as A1, P1P, P1S, and X1C. - Ergonomic Grip with Finger Guard: Features a comfortable chamfered handle and a built-in cross-guard stopper so your fingers never accidentally touch the sticky adhesive paper. Compatibility & Dimensions:

- Roll Width (Length): Fits standard 100 mm (4 inch) lint roller refills. - Inner Core Diameter: Fits rolls with an approx. 38 mm (1.5 inch) inner cardboard or plastic tube core. - Tested Compatibility: Works great with standard promotional rolls, supermarket refills, Scotch-Brite 4-inch refills, and IKEA BÄSTIS refills. Recommended Print Settings:

- Material: PETG is strongly recommended! Because the arms need to flex slightly when snapping the roll on and off, PETG provides the ideal elasticity and impact resistance. (PLA can work in a pinch, but is stiffer and more likely to crack when bending). - Print Orientation: Flat on the build plate (as oriented in the 3MF profile) - Supports: None (No supports needed) Did this save your lint roller? If you find this replacement handle useful, please consider leaving a Like , posting a photo of your print in the comments, or giving it a Boost below — it really helps me design more practical everyday fixes!

Boost Me Did this save your lint roller?

Руководства и профили печати

Профили печати и шаги

0.16mm layer, 2 walls, 20% infill
