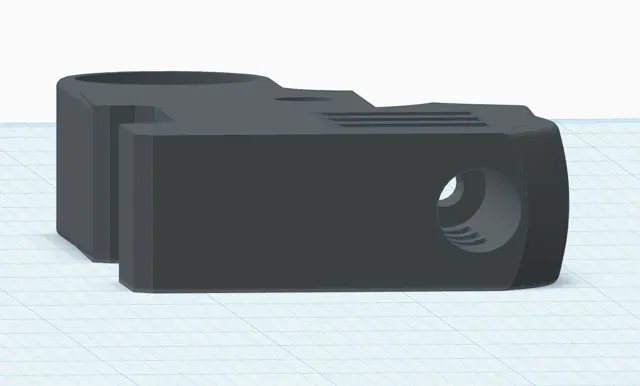

E3d Tian Idler Arm mod

Remix from madsoul666's model.

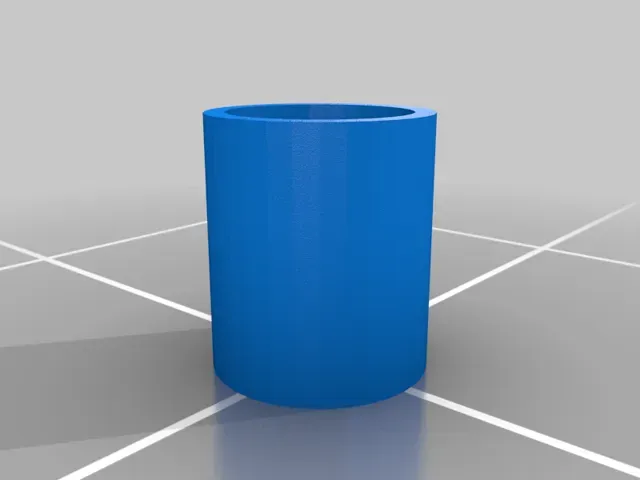

- Added cutout to allow the arm some clearance. - Added cutout for ziptie - Added PTFE tube stopper to prevent the tube go too deep into the bearing. Use MR95zz bearing for the motor shaft and a grooved bearing FZ0463 to guide filament. To mount the FZ0463, use 8mm m3 grub screw and printed adapter. Print Settings

Printer:

FlyingBear Ghost 4S

Supports: No

Resolution:

0.2

Infill: 25%

Filament: Inland PLA RED Notes:

I used red fillament because I don`t have black filament at this moment. Will paint it in black color, not a big deal)))

Category: 3D Printer Parts
