Raspberry Pi 5 PoE NVMe Case | Waveshare/Pimoroni

A Raspberry Pi 5 case custom designed for this stack featured in Jeff Geerling's video :

- Waveshare PoE HAT (F) for Raspberry Pi 5 - Raspberry Pi 5 - Pimoroni NVMe Base for Raspberry Pi 5 Features

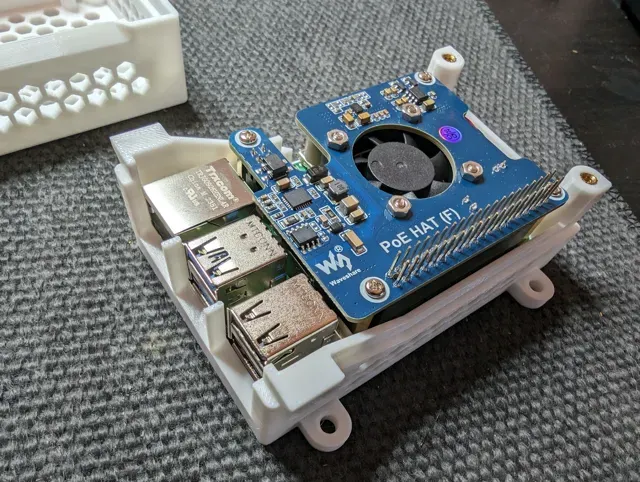

- VESA 75x75 mm mounting holes on the bottom of the case - Easily mount the case to the back of a TV, monitor or a wall - For a space efficient mounting solution, try my VESA to DIN Rail adapter - Hexagonal holes pattern for plenty of ventilation - Screwless mounting of the Pi stack - No need to take it apart! Just slot the bottom of the NVMe base into the indentation in the bottom of the case and put on the top - The Pi stack will be held in place by the four stalactites positioned over the PoE HAT's screws Parts needed

- 2x M3 hex socket screws (DIN 912) - Any length from 12 mm to 25 mm will work. I used 20 mm myself - 2x M3 threaded heat set inserts - The ones I used were 3 mm long Notes

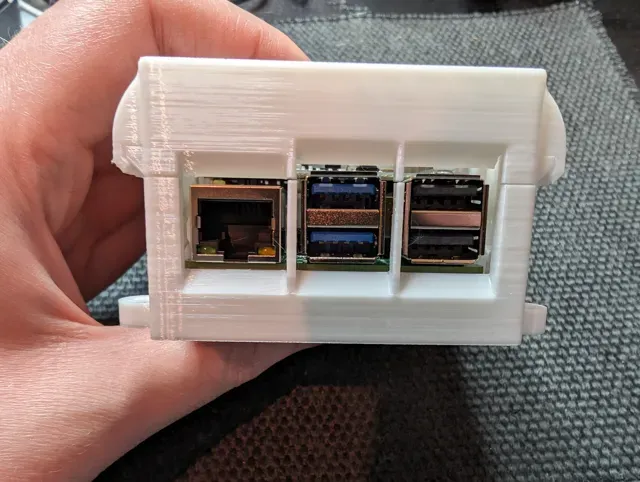

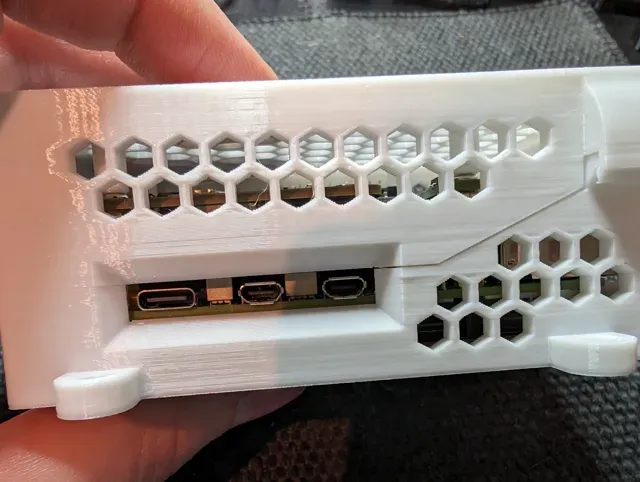

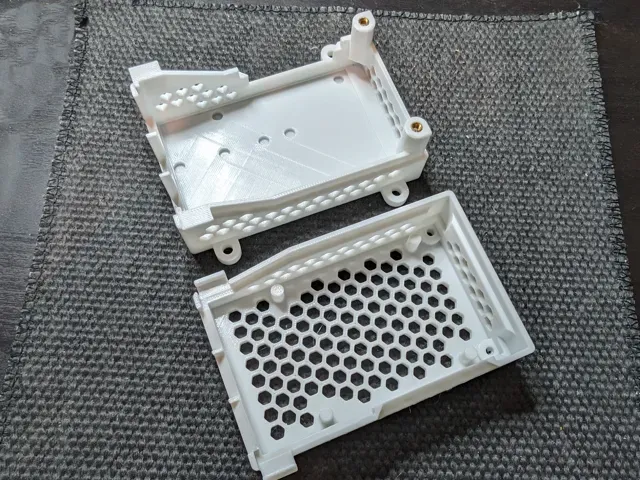

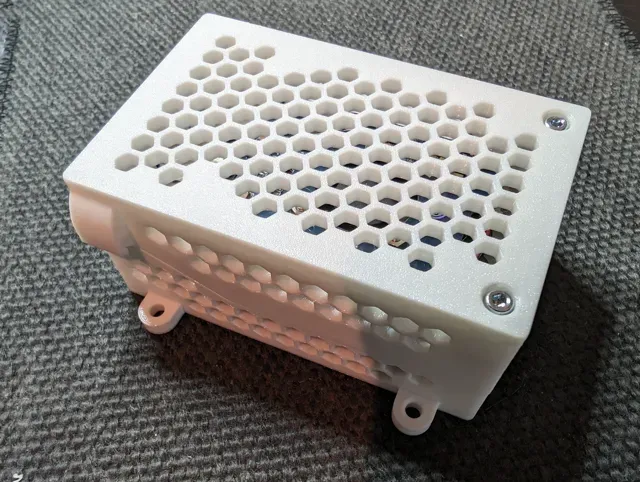

The print shown in the photos was printed at 0.2mm layer height using Creality white PETG on a Bambu Lab P1S
