Laptop Webcam cover - print inplace, no glue

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
PRIVATE-USE
Только для личного использования: печатать для себя, без продажи и распространения.
Форматы
STL
  • 29 Лайки
  • 272 Загрузки
  • 215 Напечатали
  • 57 В подборках
  • 1 Бусты
  • 21 Комментарии
  • 0 Просмотры

Автор:Mak

Опубликована

Описание

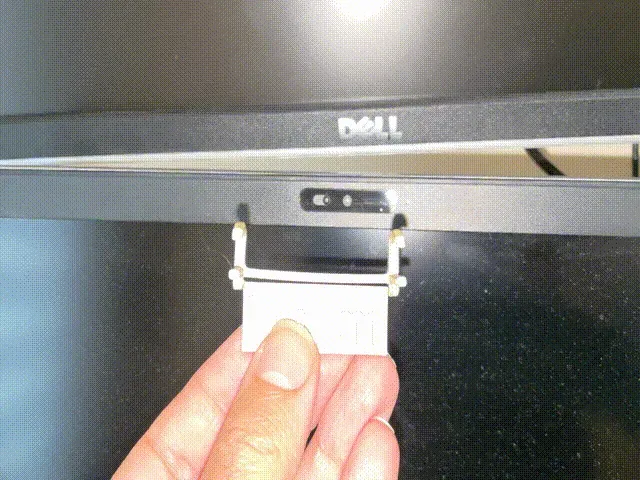

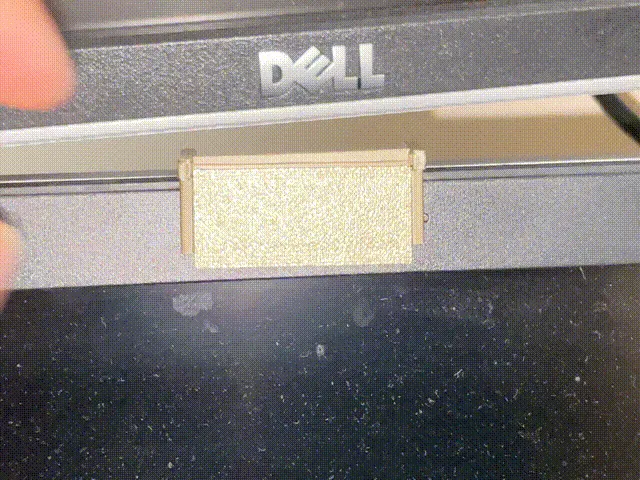

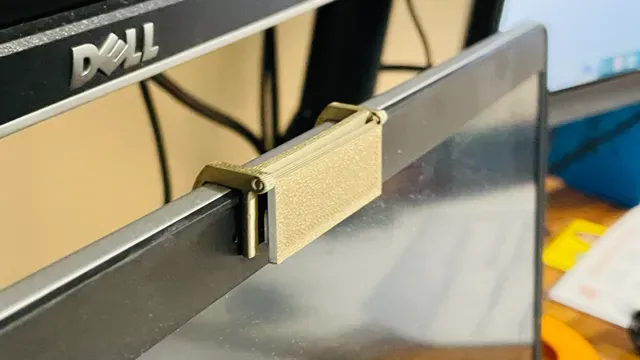

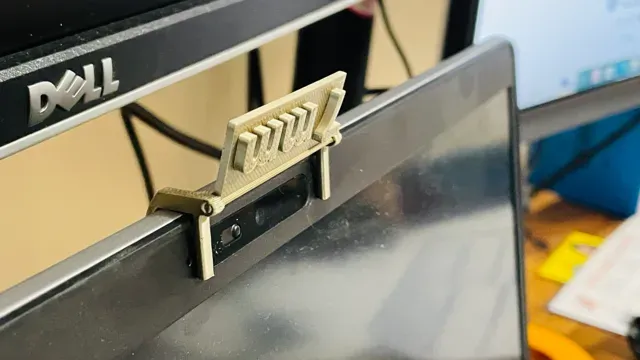

This webcam cover is meant to attach to the top of your laptops monitor and cover the camera when not in use. The ones I could find in the market were too small and required gluing. The glue leaves a residue so I designed this to be easily removable. Simply slide it up when you want to use the camera and slide it down for privacy.

This is my first polished 3rd printing design (typically I design large furniture), comments and pointers are more than welcome. If you find it's useful then please like and share.

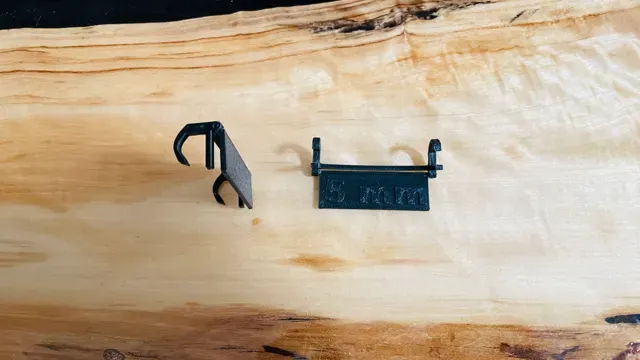

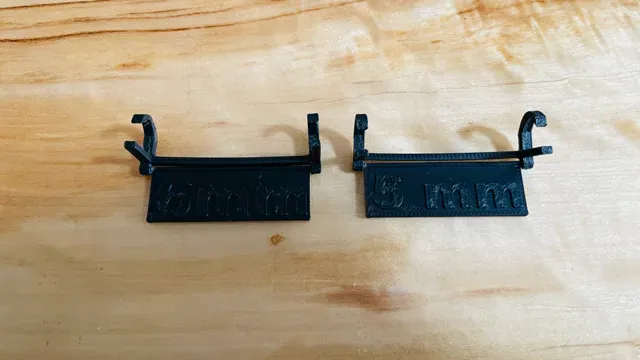

There are 3 sizes included in the profile. You only need to print the plate that matches your laptop's monitor thickness. Shoudl be a rather quick print. Large will fit a laptop monitor that is around 7mm, Medium around 6 mm and small around 5 mm. Let me know if you need it in another size.

This is designed to be print in place, the first time moving the lid may be a bit stiff but it should get easier on more use while being stiff enough to stay in place. It should allow the laptop door to still close with no issues.

Руководства и профили печати

Профили печати и шаги

3 covers in different sizes 0.2mm layer, 3 walls, 12% infill You only need to print the plate that matches your monitor's thickness (large for 7mm, medium for 6mm and small for 5mm).
