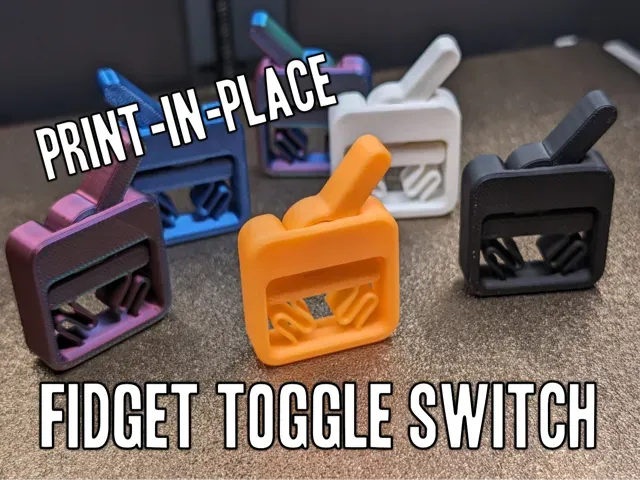

Print-in-Place Fidget Toggle Switch

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: CC-BY-NC-SA; Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы: 3MF

10 458 Лайки
70 035 Загрузки
63 744 Напечатали
24 500 В подборках
1 996 Бусты
10 444 Комментарии
0 Просмотры

Эта модель на других площадках

Printables

Автор:kriswillcode

Опубликована 18.05.2024

Скачать на

MakerWorld

Описание

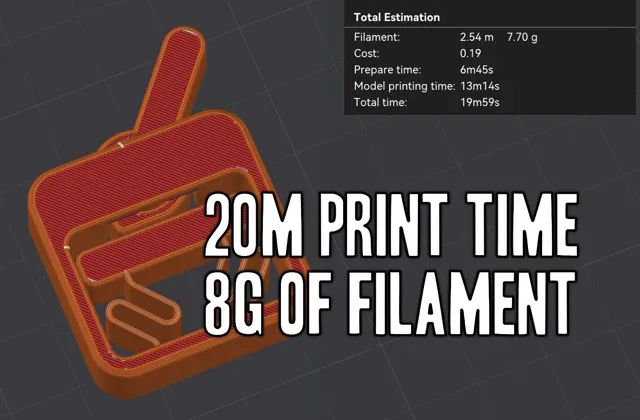

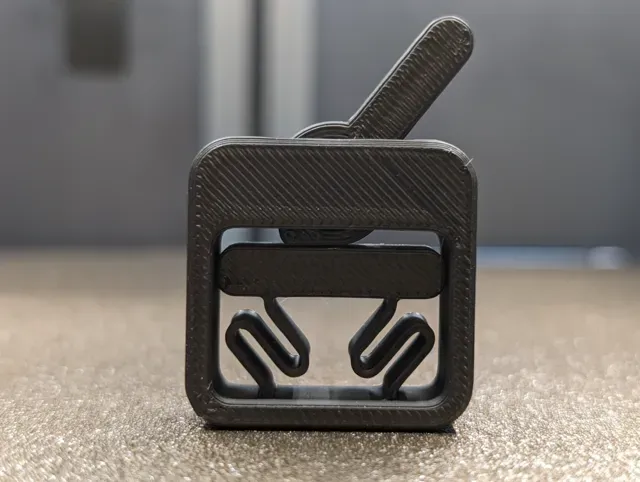

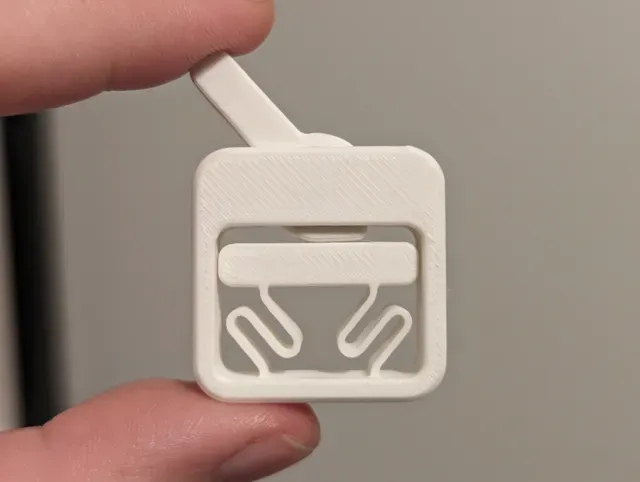

8 grams of filament, 20 minutes to print, and no assembly!

Update : I added a new profile for a switch with increased tolerances. It's less “clicky” than the standard version, but should print easier if you're encountering problems with the toggle fusing to the body. Loose - 0.2mm layer, 3 walls, 15% infill

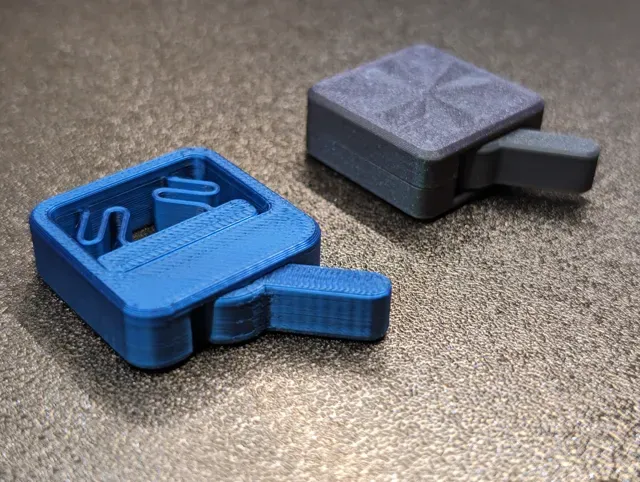

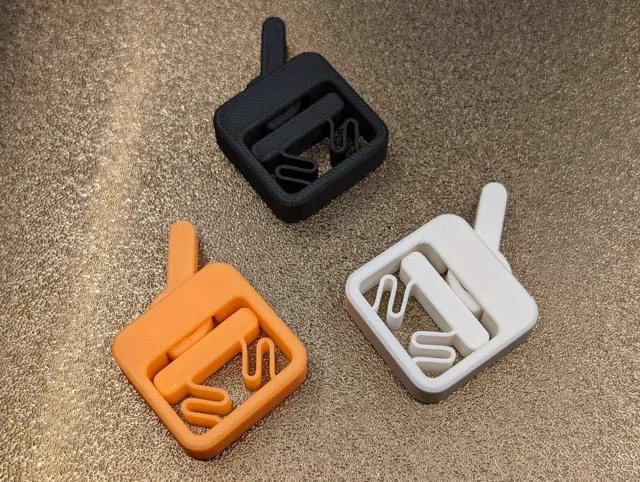

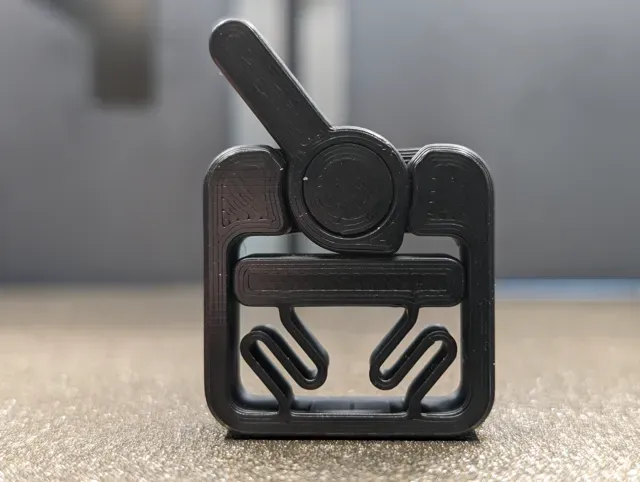

Taking inspiration from my original fidget toggle switch , I designed a print-in-place version that uses about 8 grams of filament and takes about 20 minutes to print on my X1C. This model is experimental (it's definitely still a work-in-progress), so please report any issues you encounter.

If you're interested in selling prints of this fidget switch, please message me or find my Club on the other site.

Print Settings

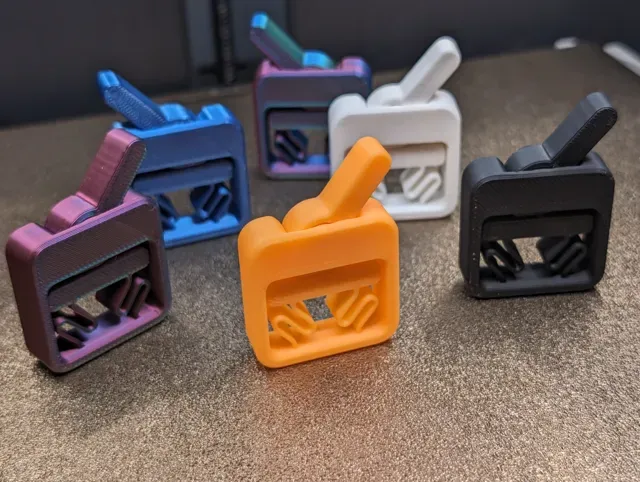

- Material : PLA (see below) - Nozzle Size : 0.4mm - Layer Height : 0.2mm - Vertical Walls : 3 - Top/Bottom Layers : 5 - Infill : 15% - Supports : Nope The switch has been tested with several different filaments. All PLA variants tested (standard, matte, CF, silk, and Plus/Pro/Max) worked great, but standard and CF worked best. PETG was also tested, but the switch's "click" action wasn't very strong.

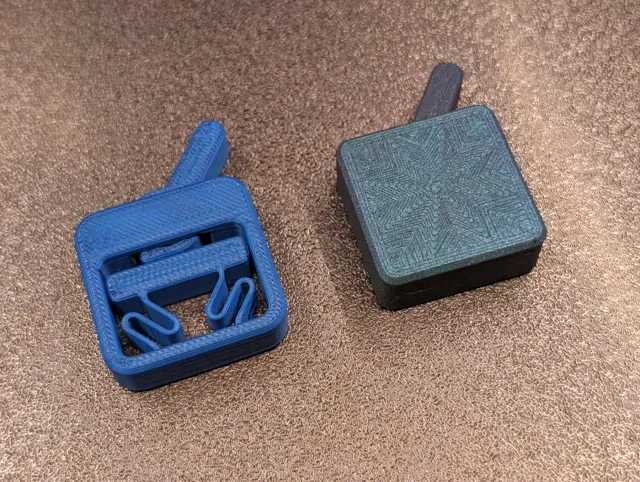

The model has some areas with limited bed contact, so make sure you have decent bed adhesion. A glue stick or another adhesive is very helpful here.

After printing, you'll need to "break" the toggle from the axle. This requires a small amount of force, but you should be able to accomplish this using only your hands. You'll also need to flip the switch a few times to fully wear it in and smooth out the action.

I designed the tolerances to be fairly loose for a 0.4mm nozzle. If you're having trouble with the toggle fusing to the axle, lower your extrusion flow ratio by a percentage point or two. I also added a new “loose” variant with increased tolerances, but the action is less “clicky.”

If you print one, please post a make! If you encounter any issues, post a comment. Thanks!

Руководства и профили печати

Профили печати и шаги

Standard - 0.2mm layer, 3 walls, 15% infill This profile follows the recommended settings for a 0.4mm nozzle:

- Layer Height : 0.2mm - Vertical Walls : 3 - Top/Bottom Layers : 5 - Infill : 15% Some precision values have also been updated for a smoother print.

Loose - 0.2mm layer, 3 walls, 15% infill This profile contains a variant with larger tolerances.

It follows the recommended settings for a 0.4mm nozzle:

- Layer Height : 0.2mm - Vertical Walls : 3 - Top/Bottom Layers : 5 - Infill : 15% Some precision values have also been updated for a smoother print.

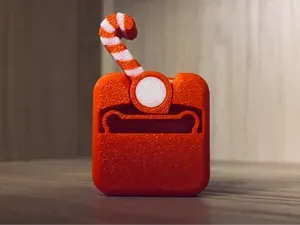

Multi-Color Sides I added a multi-color sides to this neat fidget toggle switch.

Printed and tested with Elegoo PLA. Use gentle force for break the toggle free the first time, after that just keep toggling until your hearts content!

Check out my other designs here: https://makerworld.com/en/@A1Graphix

Please be sure to rate this when you print it. Thanks!

[A1M] High Quality and ironed

[A1 Mini] 0.2mm layer, 3 walls, 15% infill Add A1 Mini

slowed first layer for better adhesion

Ironing on top, gyroid - 0.2mm 15%fill improved surface finish on top layers by enabling ironing. increased strength in all directions by using gyroid infill.

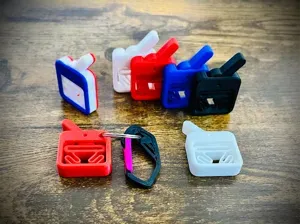

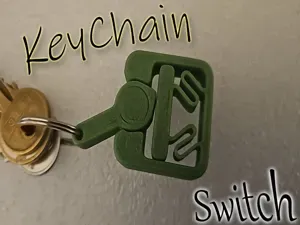

[KEYCHAiN] PIPFidgetSwitch - 0.2mm layer, 3 walls,15% infill with a hole for keychain, 0.2mm layer, 3 walls,15% infill

0.2mm layer, 5 walls, 15% infill - PETG - 5 Wall - Efficient and solid 15% infill

0.16mm layer, 2 walls, 15% infill Finde es so schöner von der Oberfläche

Concentric top layer, Much prettier

0.6mm nozzle, 0.18mm layer, 3 walls, 15% infill Hotend de 0,6

0.28mm layer, 3 walls, 15% infill

NOTCHED HIGH QUALITY A special version with a notch inside for 3 positions

0.28mm layer, 3 walls, 15% infill

P1/X1 0.24mm layer, 3 walls, 15% infil Schneller, funktionierender Druck. Wenn man an den Kreis vom Kippschalter etwas WD40 gibt macht es richtig laune um seine Hände zu beschäftigen. Knapp 12min reine Druckzeit auf dem P1S

0.2mm layer, 3 walls, 15% infill 150% size 150% in size, for bigger hands!

0.2mm layer, 3 walls, 15% infill

Ultra-Fine Layers - 0.08mm

0.2mm layer, 2 walls, 15% infill - Print without supports
