Ubiquiti Unifi AP Wallmount / Ceilingmount

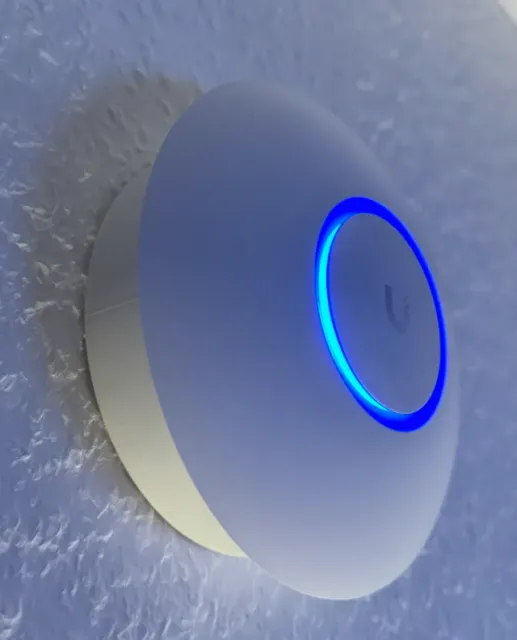

Tired of awkward AP mounts or messy cables? TThis custom-designed wall mount is built specifically for the Ubiquiti UniFi U6+ Access Point – offering a clean, flush-to-wall install while hiding the Ethernet cable behind the device for a sleek, professional look.

💡 Note : This mount was designed for the UniFi U6+, but it will likely fit other UniFi AP models that use the same or similar mounting plate (e.g. U6 Lite).

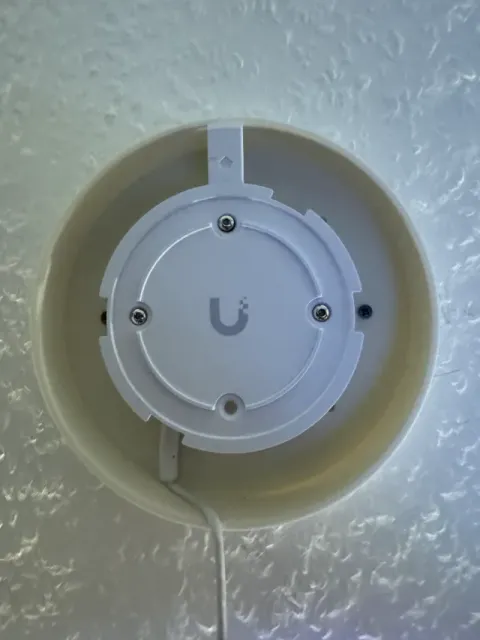

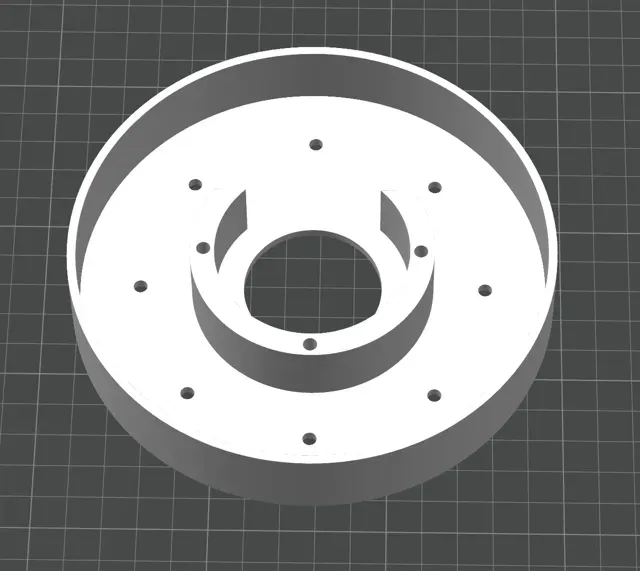

The mount is screwed directly into the wall, and the original UniFi mounting plate (included with the AP) fits perfectly into the inner slot. I used 3x M3x5.7 mm threaded inserts to securely attach the UniFi plate to the printed holder.

---

🧰 Features

- ✅ Precise fit for the UniFi U6+ and its original mounting plate - ✅ Recessed design to hide the Ethernet cable cleanly behind the AP - ✅ Easy to install using screws and wall plugs - ✅ No need to drill or modify the original UniFi hardware - ✅ Clean and modern look – blends perfectly with UniFi aesthetics

---

🔧 Print Recommendations

- Material: PLA or PETG - Layer Height: 0.2 mm - Infill: 20–30% - Supports: Not required - Threaded Inserts: M3x5.7 mm (press-fit or heat-set)
