8x3mm Exhaust Fan Muffler/Silencer w. Screw X1/P1

Working on such designs takes a lot of time and if you like my work and want to support me - please print my “Designer” printprofiles! It will help me to design more! Thank you in advance!🙏

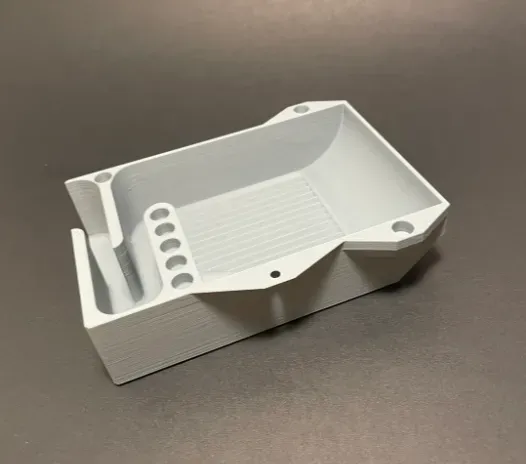

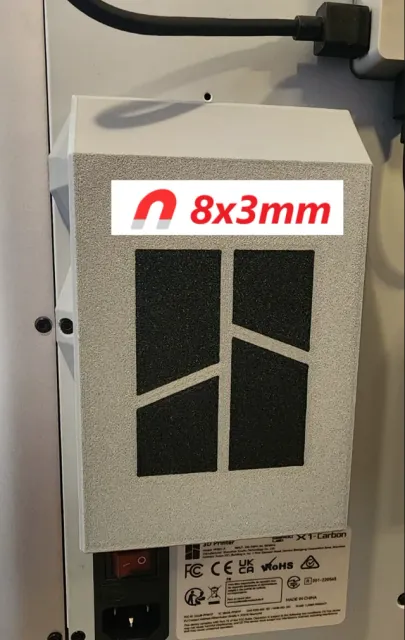

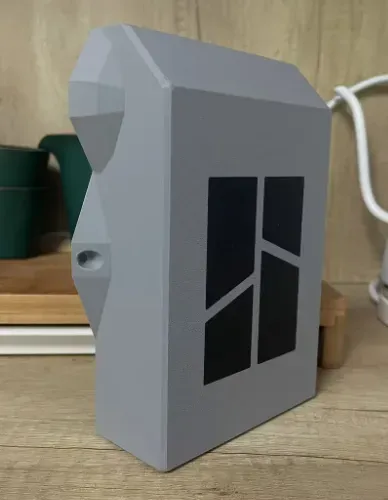

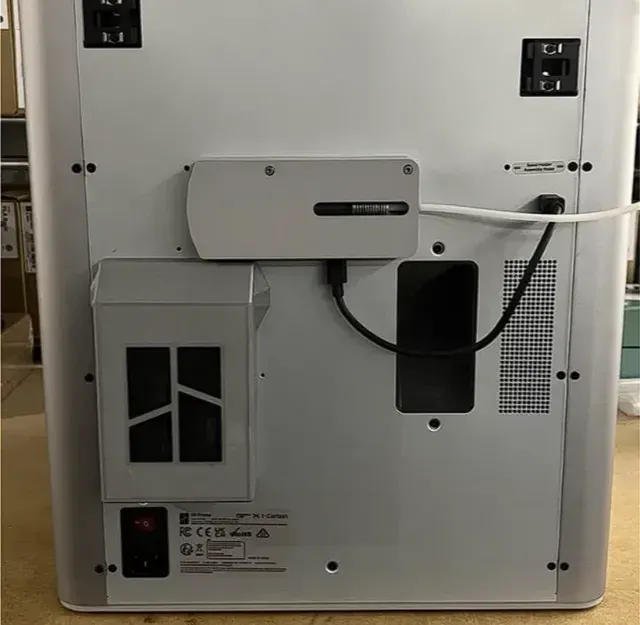

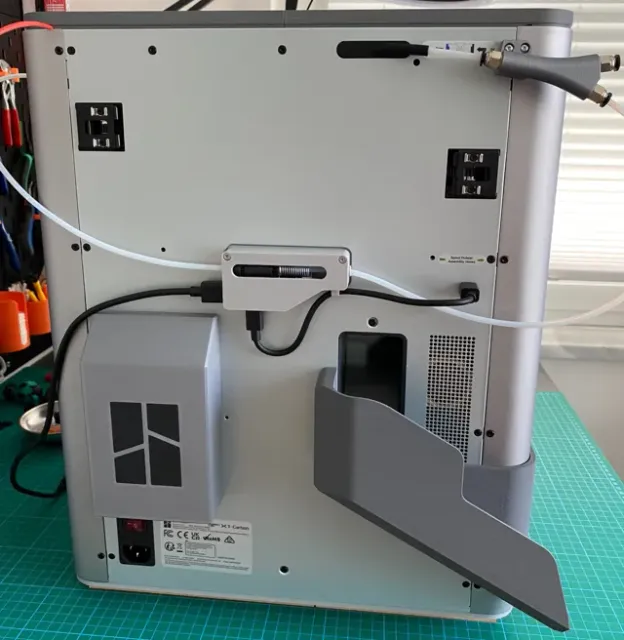

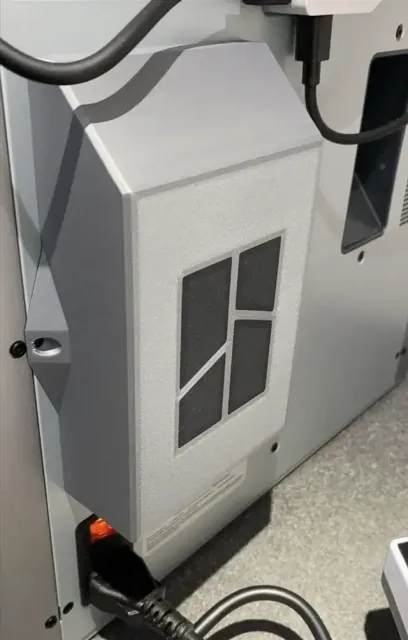

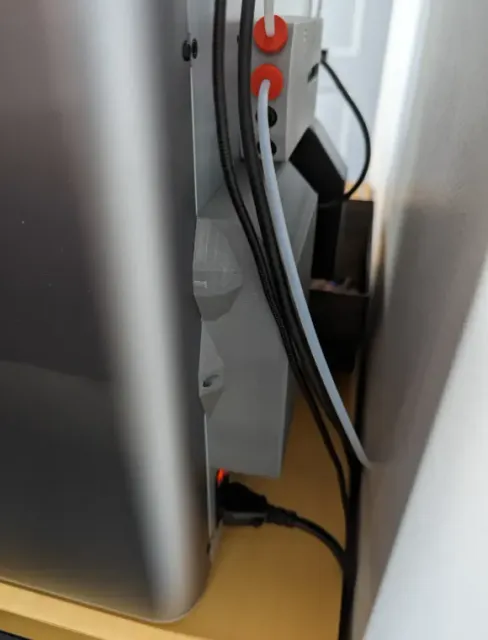

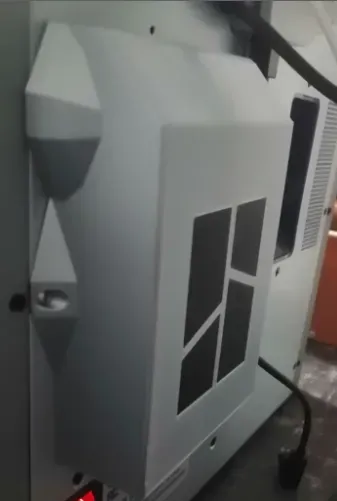

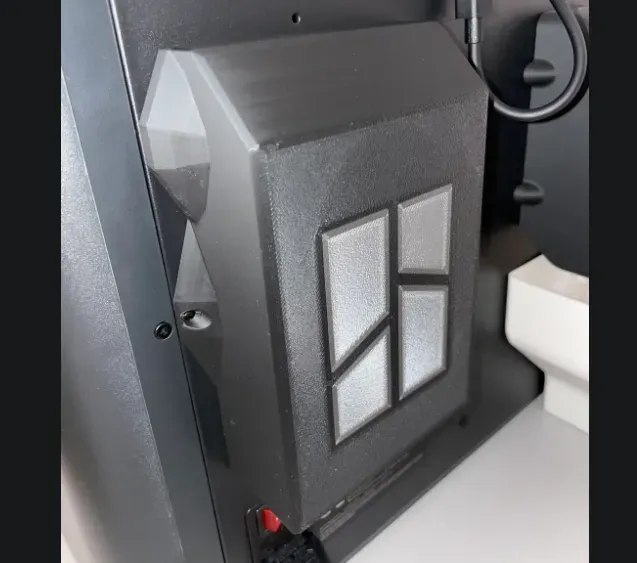

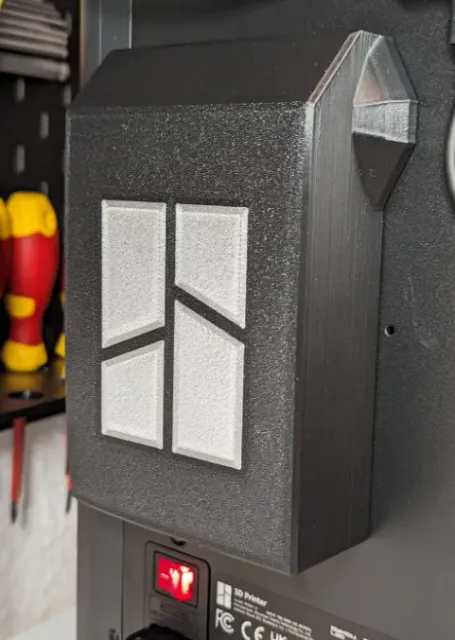

Powerfull magnetic Bambu Lab X1 / P1S (full AMS Hub compatible!) Exhaust Fan Muffler / Fan Silencer without Supports/Bridges! (Eds Version) with screw option and 8x3mm magnets ( TWO STACKED MAGNETS FOR EACH HOLE! ) magnets

My remix of really cool original silencer of OurAngryBadger! THANK YOU for the step files!!! :-)

Main changes - really nice (with big bambu lab logo) and easy print version without supports / bridges! You can screw it on, but it will hold only with magnets wonderfully! This version is suitable for everyone with and without AMS HUB! :-)

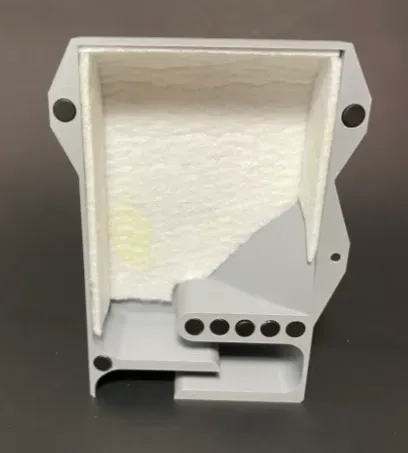

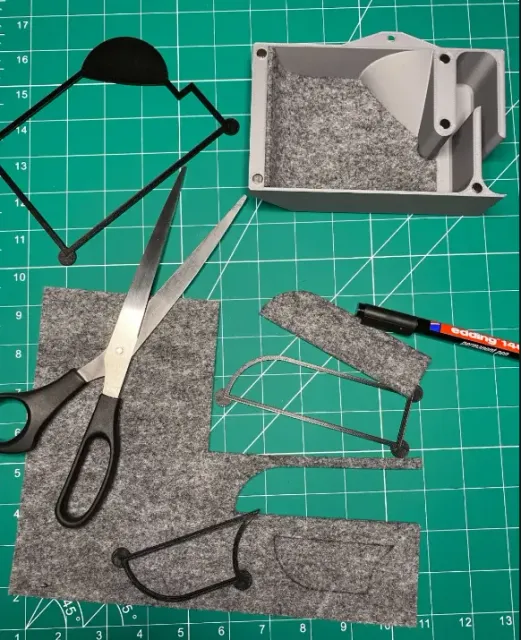

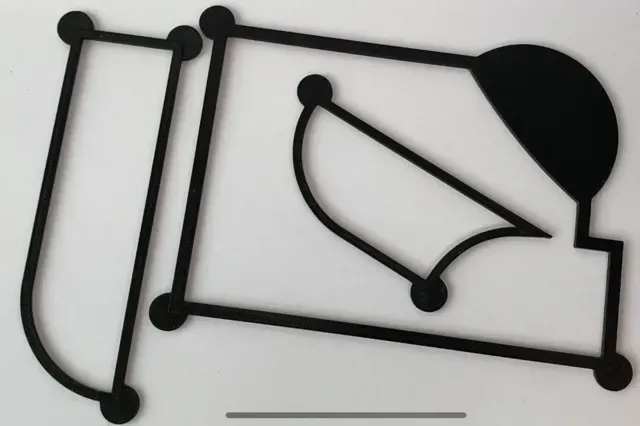

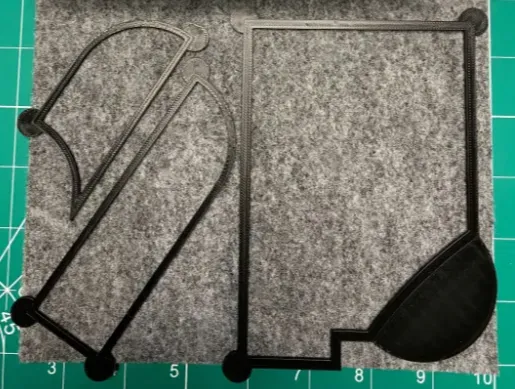

I changed the acoustic properties, rounded off the ventilation curve and I tested about ~5-6db average reduction of noise! Insulated with the carpet fleece ~6-7db! Cutting Templates for self-adhesive carpet fleece you can get HERE !

This version has the option of screwing the muffler with a screw in addition to magnets, to secure it against displacement. For magnets mounting only, you will need up to 16x of 8x3mm magnets (two stacked magnets for each hole) . Just glue them in the holes! (The holes are a little bit bigger - as clerance for most of magnets ;-))

You can use the screw (better take one SHCS m3x10mm screw), but it would be enough to hold this silencer securely only with magnets!

Print / Install Instructions:

- I recommend printing with 4 walls, 6 top and bottom layers, and 0.16mm layer height on Bambu X1. You want a very solid shell so that air/noise doesn't escape as easily. PLA material is fine. - After printing, you can glue in magnets into the holes ( you can use up to 16x magnets, but you don't need to fill all holes with magnets, 10 will be enough ;-) - (Only!) if you want to - screw on the muffler with SHCS m3x10mm screw. I've been using this setup for several months and this simple mod definitely makes my X1 quieter!

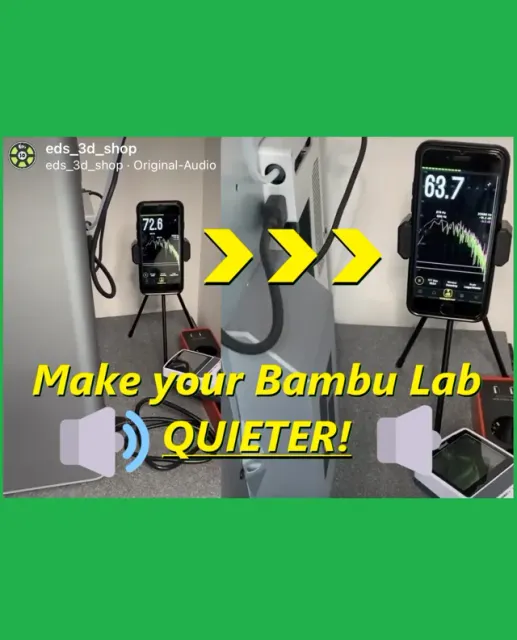

I don't have any precise measuring equipment for this, but the fan noise has definitely become even more muffled for my ears - see video about on my Instagram Channel: https://www.instagram.com/reel/CmlUerEMyGf/?igshid=YmMyMTA2M2Y=

INFO from Wikipedia : “Increasing the sound pressure level by +6 dB corresponds to a doubling of the sound pressure”

BambuLab X1 Carbon with AMS

Noise level without muffler

BambuLab X1 Carbon with AMS

Noise level with muffler

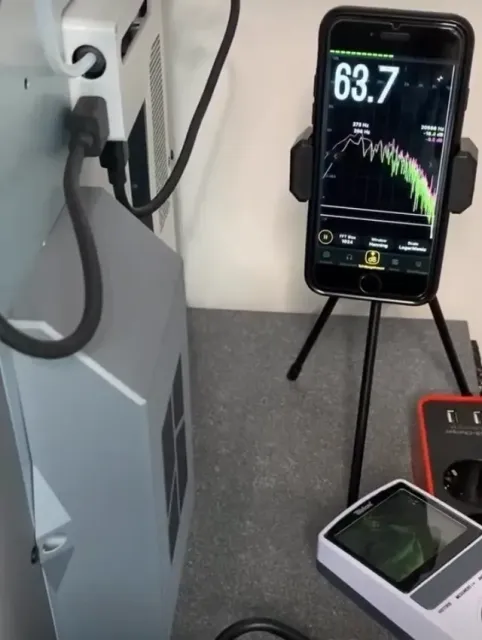

Testet with “Dezibel X App” (iOS) on old iPhone

— ! —
