SUB-PLINKER (Bolt-Action Toy Blaster)

SUB-PLINKER (Plinker 2.5):

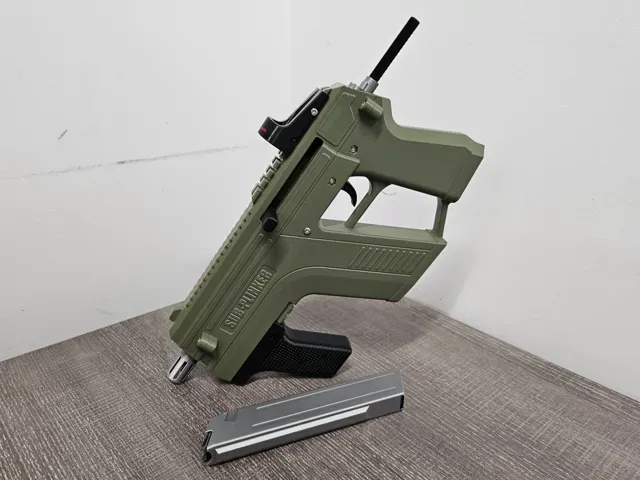

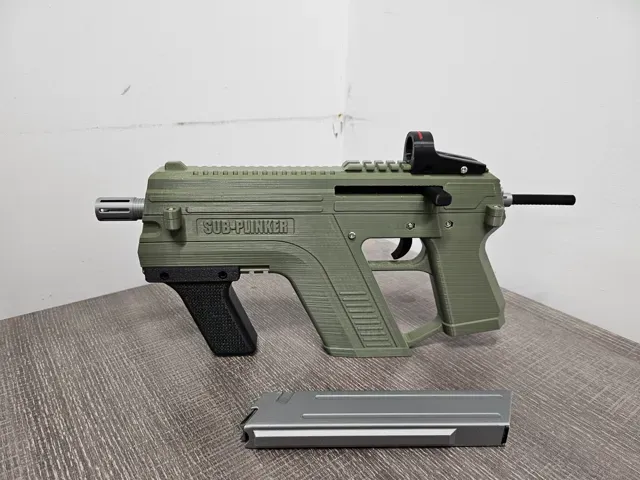

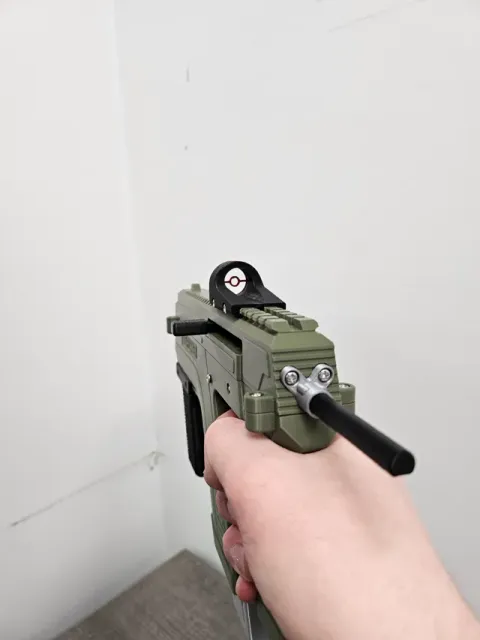

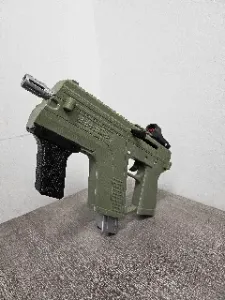

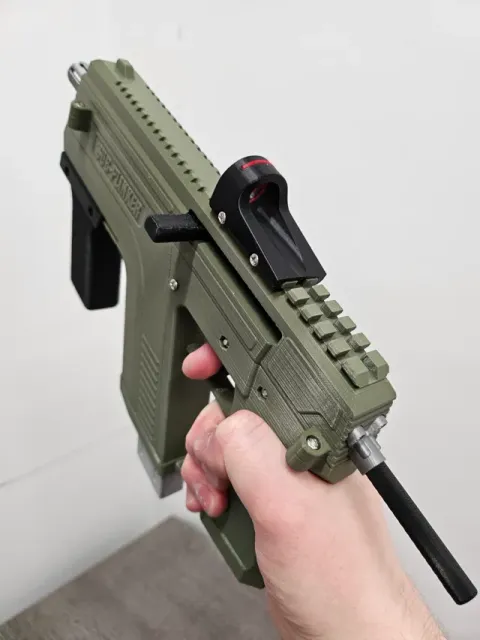

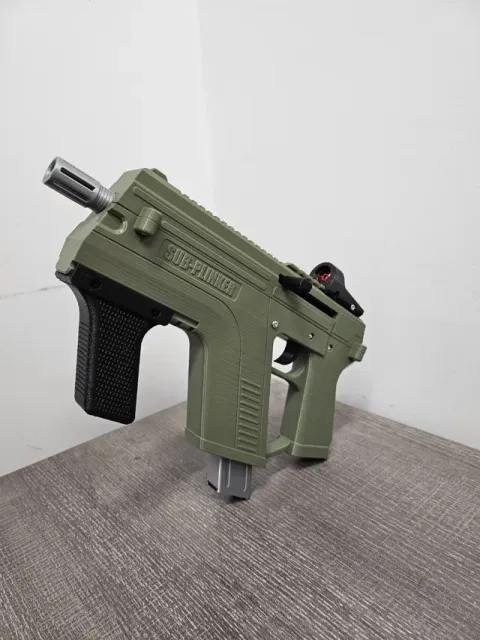

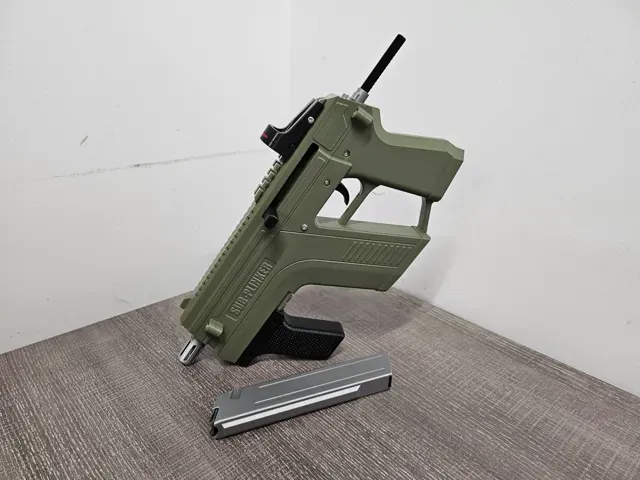

The Sub-Plinker is a compact, low-power shell ejecting blaster with printed projectiles. The design was heavily inspired by the Kriss Vector submachine gun and the Ticon pistol from Cyberpunk 2077. This is a simplified design of the Plinker V2.0 with fewer printed parts, less hardware, easier printing and simpler operation.

UPDATE (JUNE 1/2024):

I have found some issues with the magazine & ammunition, it struggles to hold more than three rounds without feeding issues. I will hopefully have a fix very soon.

Features:

- Bolt-action priming. - Functional Rails. - Printable attachments. - Shell Ejection. - Printed Ammo. Printed Parts: (3 Walls, 15% Infill, PLA, Supports Required)

- Lower Frame. - Upper Frame. - Barrel. - Bolt. - Striker. - Trigger. - Striker Latch. - Charging Handle. - Spring Rail. - Spring Rail-Guide. - Magazine. - Magazine Lift Table. - Magazine Spring Base. - Magazine Base. - Magazine Catch. - Foregrip. - Sight. - Reticle. - Casing. - Projectile. PRINT ORIENTATION:

Non-Printed Parts:

Nuts & Bolts:

3 x M3*8 mm Screw.

4 x M3*12 mm Screw.

1 x M3*16 mm Screw.

1 x M3*20 mm Screw

3 x M3*25 mm Screw.

2 x M3*28 mm Screw.

10 x M3 Nut.

Springs:

2 x Pen or Mechanical Pencil Spring.

1 x Compression Spring ( Dimensions : Outer Diameter – 10 mm, Wire Diameter – 0.8 mm, Length – 85 mm ).

1 x Compression Spring ( Dimensions : Outer Diameter – 10 mm, Wire Diameter – 0.6 mm, Length – 130mm).

SPRINGS: 305mm Compression Spring Wire Dia 0.3 0.4 0.5 0.6 0.7 0.8 1 - 5mm Outer Dia 3 3.5 4 4.5 5 5.5 6 7 8 10 12 - 60mm Length 305 mm (aliexpress.com)

Tools:

- Superglue. - Screwdriver. - Sandpaper/Metal files. ASSEMBLY VIDEO:

Thank you & Enjoy!
