Reolink RLC-833A Cable Housing

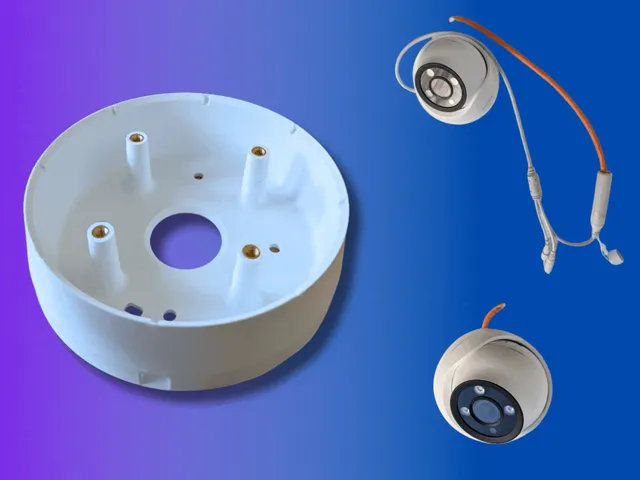

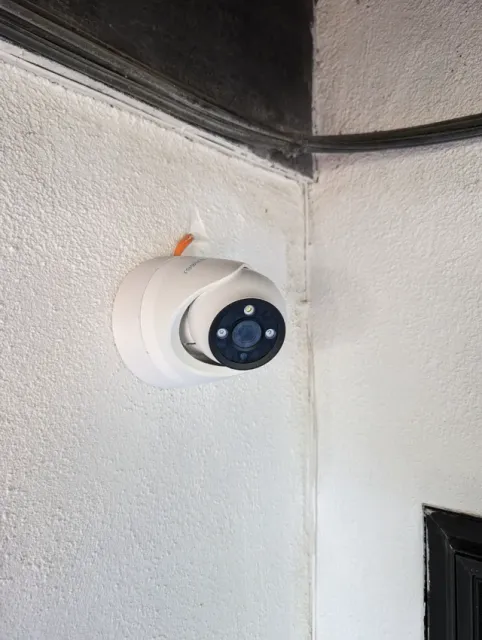

Keep your Reolink RLC-833A (or similar) Security Camera* cables tidy and secure your network! Go from this… to this!

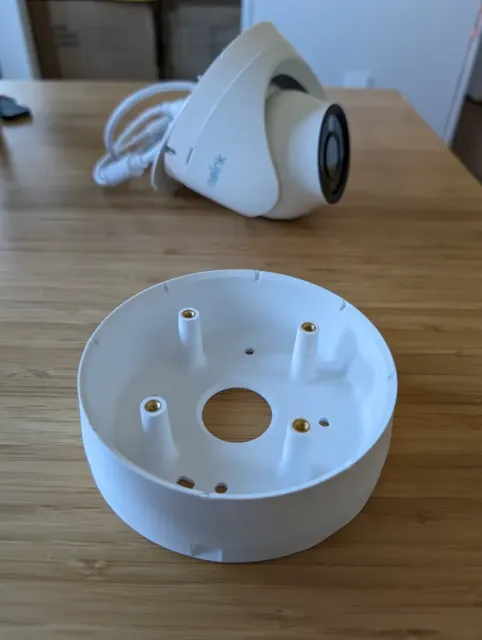

Features 2 ways for your cables to enter. If mounting your camera directly over your cable's mounting point, use hole A. If mounting your camera away from the cable exit point, re-terminate your ethernet after passing it through hole B. The design also features a zip tie passthrough for strain relief.

Notes:

- Note that the housing is not meant to be totally waterproof. It's designed so that if mounted to a vertical wall, rainwater should escape the housing via gravity, but you should still use the waterproofing mechanisms built into the ends of the camera cables!

Materials

- ASA or ABS suggested (for outdoor applications) - I printed mine from Polymaker White ASA* - 4x M4 threaded inserts* - if not using these exact inserts, verify dimensions are the same - 4x M4 x ~8mm screws* - stainless steel suggested (for outdoor applications) - Soldering iron for heat staking (I use these tips* but they are not required) - (Optional) zip ties

Assembly

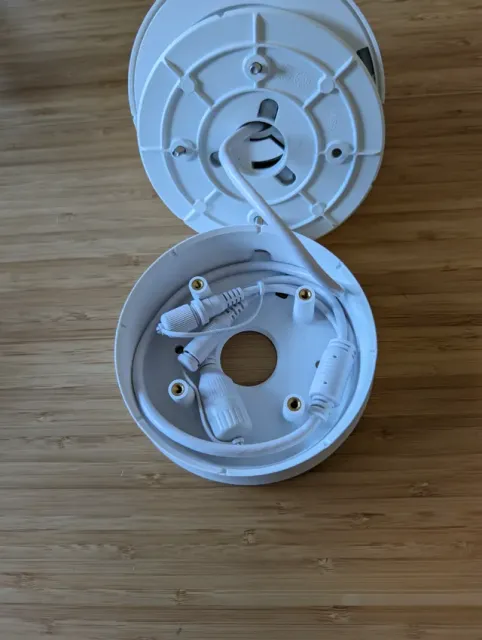

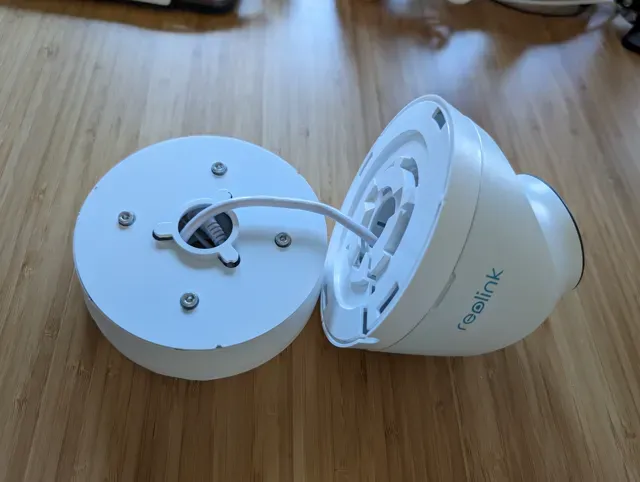

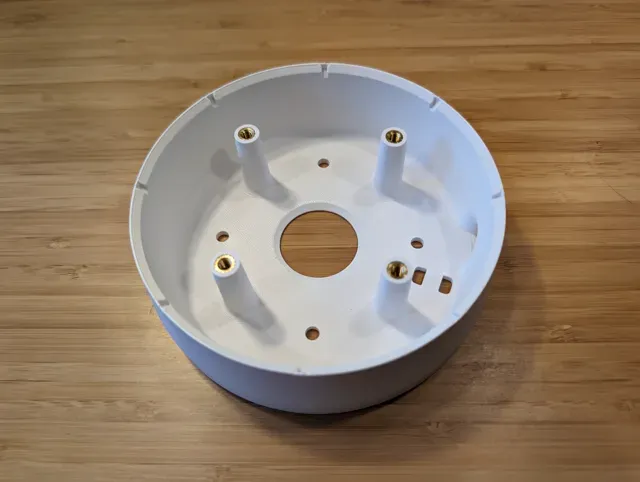

- Print the part with the included profile - Heat stake the 4x M4 threaded inserts* into the part as shown - Use the template, mounting hardware, and instructions included with the camera to mount the 3D-printed part in the camera location. - Terminate the ethernet connection as needed inside the part. secure it as needed with a zip tie - Slip the camera cables through the hole in the included mount plate, and connect them to the cables inside the printed part - Manage your cables nicely, again you may choose to use zip ties - Install the plate to the printed part and secure it with the M4 x ~8mm screws* - Install the camera to the plate

Want to make one for your similar but not exactly the same Reolink camera?

✏️ CLICK HERE FOR THE ONSHAPE MODEL ✏️

Camera Compatibility Matrix

(Crowdsourcing is encouraged; let me know if it fits your camera in the comments!)

Camera

Compatible?

RLC-520

Likely

RLC-520A

NO

RLC-522

Likely

RLC-820A

Likely

RLC-822A

Likely

RLC-824A

Likely

RLC-833A

YES

RLC-1224A

Likely

D400

?

D800

NO
