Soldering Tool Holder Flexible Arms helping hands
Сведения о модели
- Площадка
MakerWorld
- Цена
- Бесплатно
- Лицензия
- PRIVATE-USE
- Только для личного использования: печатать для себя, без продажи и распространения.
- Форматы
- STL
- 21 032 Лайки
- 32 392 Загрузки
- 14 237 Напечатали
- 55 341 В подборках
- 1 138 Бусты
- 1 549 Комментарии
- 0 Просмотры
Эта модель на других площадках
Описание
New info (must have) 19.02.2025:
Hi, to make soldering e.g. LED strips easier, I created a soldering desk that will hold everything in place. Enjoy
https://makerworld.com/en/models/1126563#profileId-1126023
New info (must have upgrade :) ) 14.08.2024:
Hello everyone, I have developed a new version “soldering flexible arms 2.0” of the flex joint for you, the reinforcement of the walls and the contact surface with the pad, the lowpoly head combined with the fuzzy skin is a great combination, now the flex arms will hit a lot more weight, they are stronger, nothing cracks, they turn better, this upgrade you must have :) For those who are just going to print I created everything as a new project, plate 02 is all the parts, for those who already have the base and want this great upgrade plate 01 is 40 pcs joints enough for two hands. Thank you and good luck. The upgrade is here:
https://makerworld.com/en/models/588389
ENJOY
Boost Me Thank you very much for your support of my creation with a boost from you. Thank you
Before printing, please use 3Dlac spray on the bed for better adhesion of small parts.

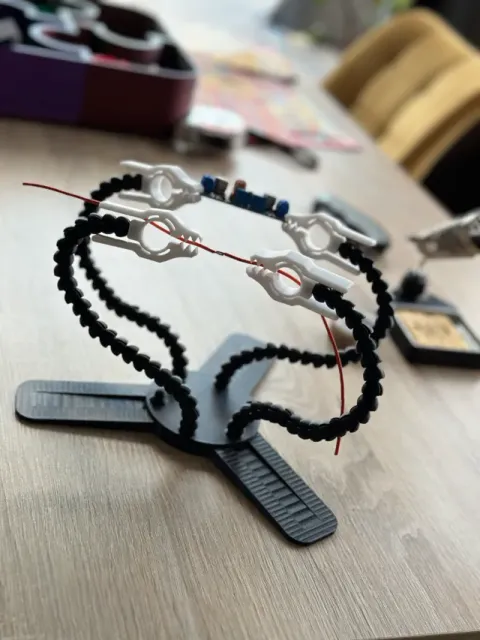

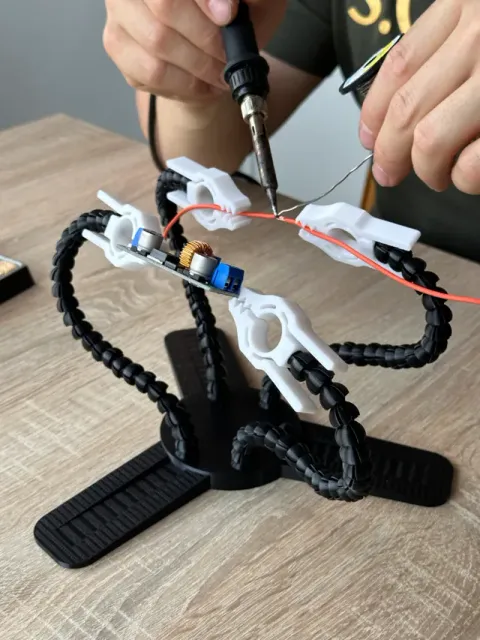

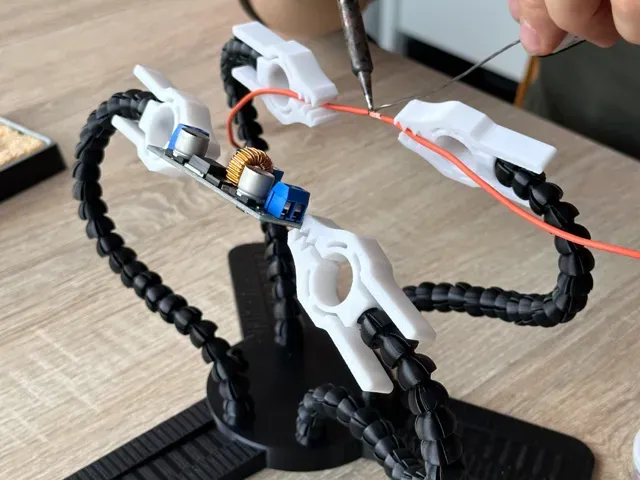

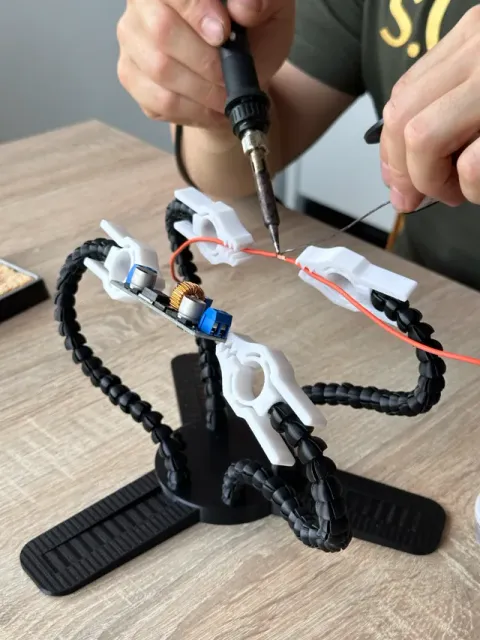

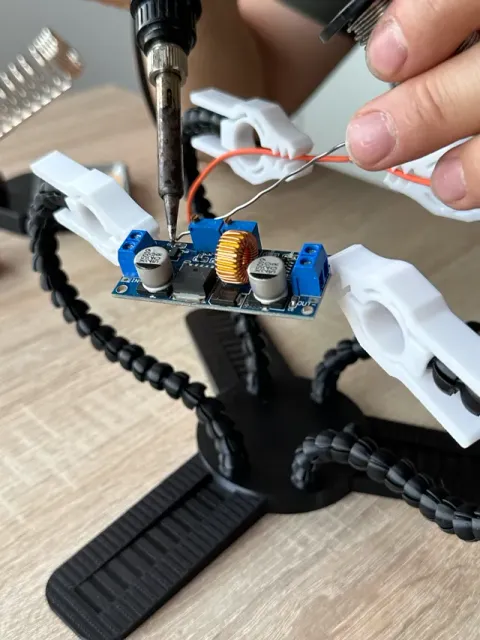

Soldering Tool Holder. Adjust the support pipe arms, regulate the whole project. When 2/4 arms needed, only adjust the base arms, very convenient to change the height, angle of gripping without tedious and stiff to adjust arms one by one, or put items off and put on to change the orientation. More freely than traditional single helping hands arms and protect your precise item.
1.The three to six hand tool quickens soldering,electronics, and DIY projects allowing you to finish your work faster than ever before! Our Third Hand makes positioning a breeze with
2.base save space,Easy to carry,Free hands
3.alligator clip tips for 360 degree rotation for easy operation and work
4.Super compact design for an ultra portable third hand tool
5.Very suitable for the complex difficulty welding such as model airplane repair, easy to clamp the solder and operation.
Руководства и профили печати
Профили печати и шаги
0.2mm layer, 3 walls, 20% infill 0.2mm layer, 3 walls, 20% infill
0.12mm layer, 2 walls, 20% infill
Raft Layers for better adhesion Same settings as designer except for the addition of raft layers for the small link parts. It decreases the model failure rate.
3 plates, 0.12mm layer, 2 walls, 15% infill I split this model into 3 plates so that the the prints would have a better chance of success. The stand and the clips print just fine, but the ball joints can be failure prone.
extension for bigger grip I made it so that you can fully squeeze down to get a larger grip on it
PA6-GF, 0.6mm nozzle, 0.18mm layer, 2 walls, 100% infill Profile optimized for printing the graspers in PA6-GF. Maximum strength and heat resistance, allowing more longevity and avoiding plasticity of the graspers when operating near them with the soldering iron.
The brim setting is optional and dependant on your choice of build plate/glue. This batch was printed with a brim on a Textured PEI plate with glue stick applied, and resulted in zero adhesion/warping problems.
Remember to dry your filament!
Haltezange 0.2mm layer, 3 walls, 20% infill Wie auf den Bildern zu sehen hat dieser Greifer ungefähr die doppelte Griffweite wie die originale Zange. So können auch größere Elemente gehalten werden. Die Kugelpfanne passt zum originalen Modell.
0.16mm layer, 2 walls, 15% infill Added the extension that fits the size of the main print. 7.8mm bulb diameter.
Похожие модели


Soldering Flexible Arms 2.0

Soldering Multi Holder, print in place

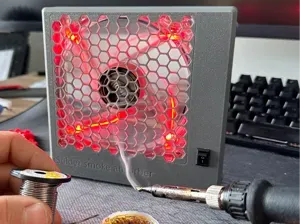

Soldering smoke absorber

Modular Soldering Station

Soldering Tool Holder Flexible Arms helping hands

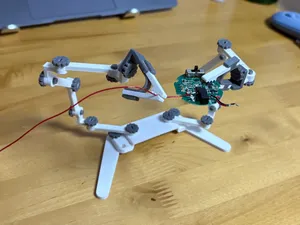

Helping Hand (sturdy)

Soldering Wire Holder Flexible Arms

Soldering smoke absorber

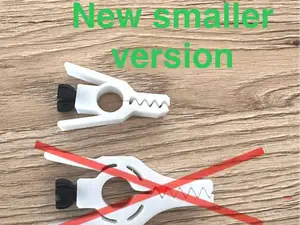

Soldering Tool Holder Flexible Arms - new clip

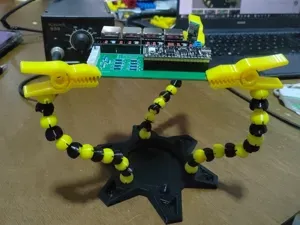

Soldering Tool Holder Helping Hands Flexible Arm
