Can Holder for Tubular Pool

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
3MFSTL
  • 74 Лайки
  • 179 Загрузки
  • 110 Напечатали
  • 187 В подборках
  • 11 Бусты
  • 19 Комментарии
  • 0 Просмотры

Автор:Bruno Teixeira

Опубликована

Описание

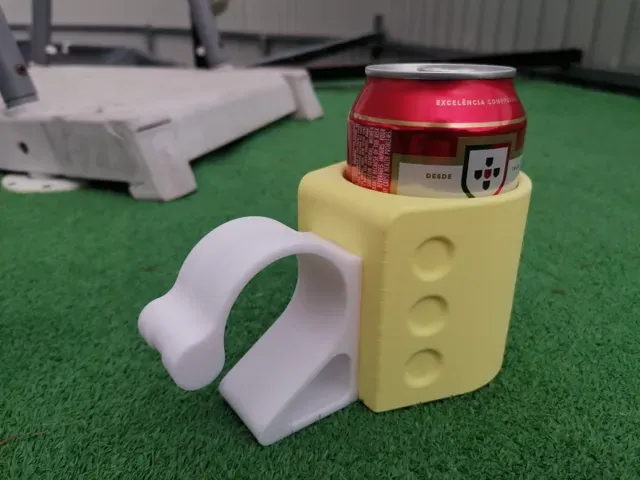

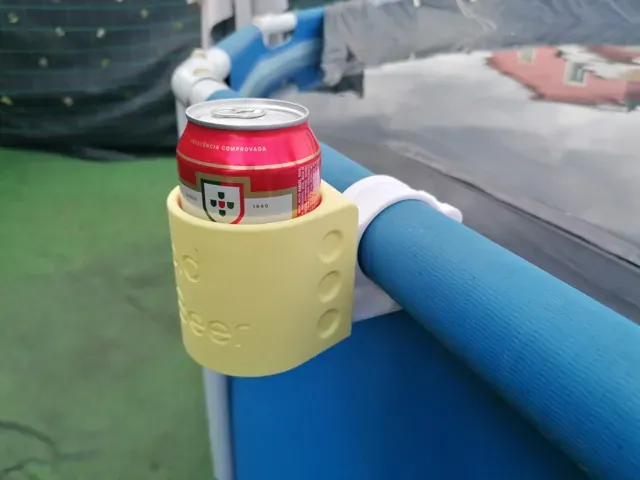

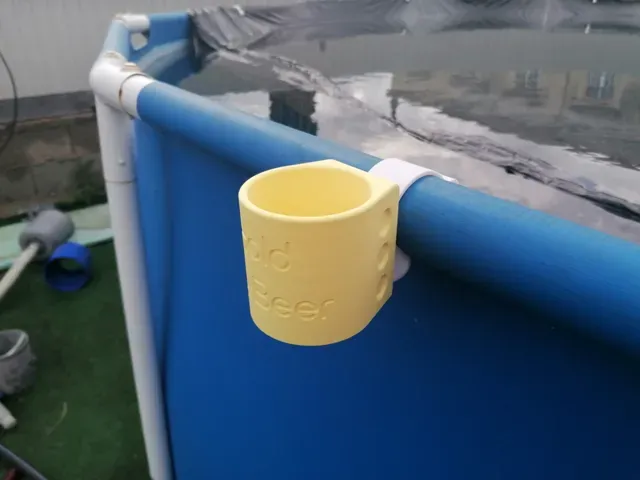

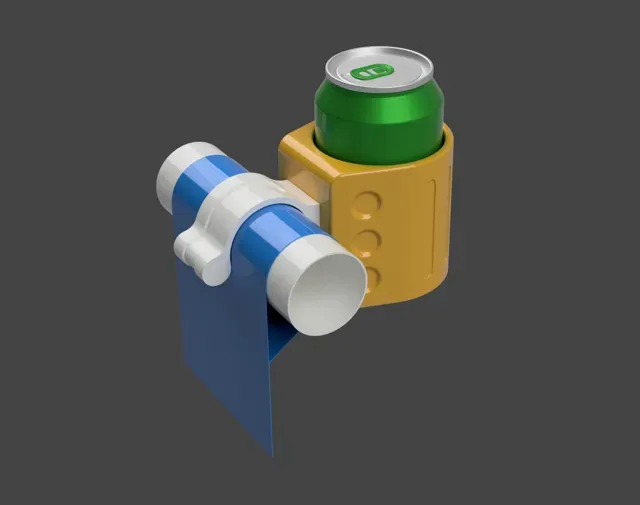

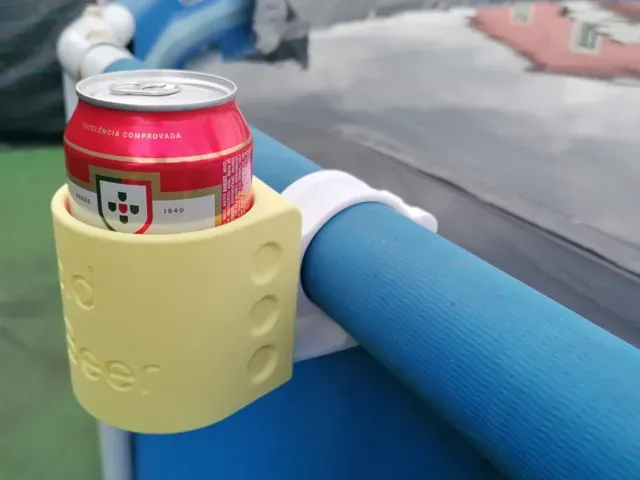

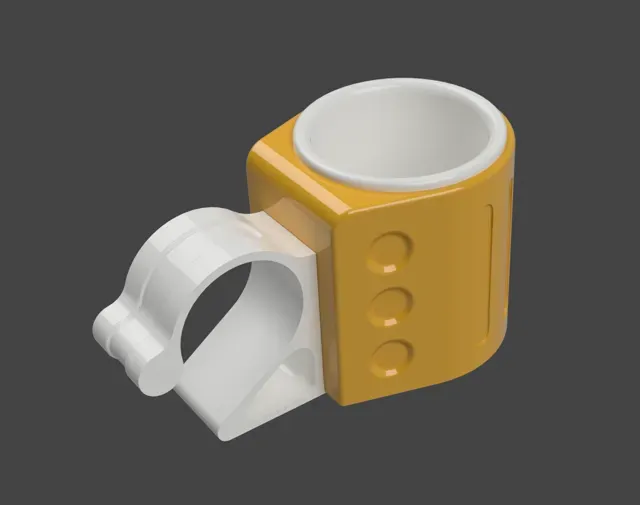

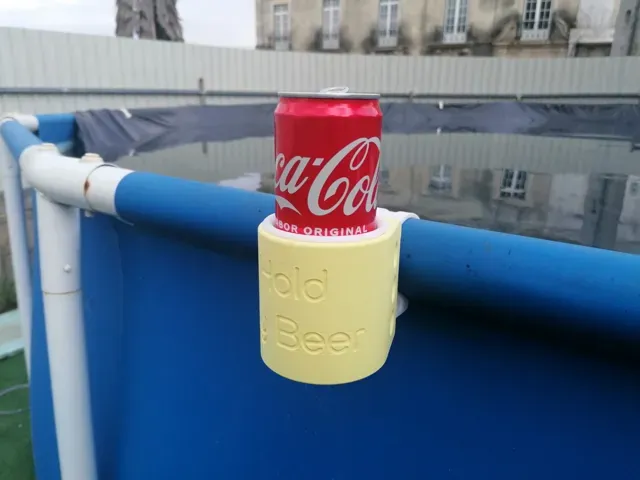

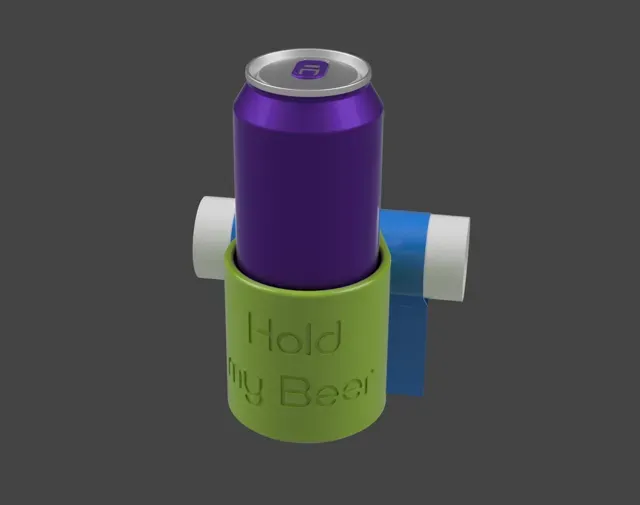

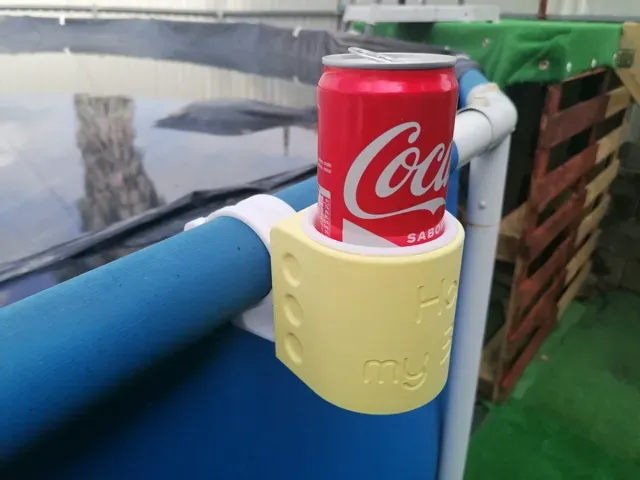

These are some beverage can holders that I designed to use in my own pool. They fit most of the the Intex / Bestway tubular pools, or any other brand that uses tubes around 50mm or 60mm tubes.

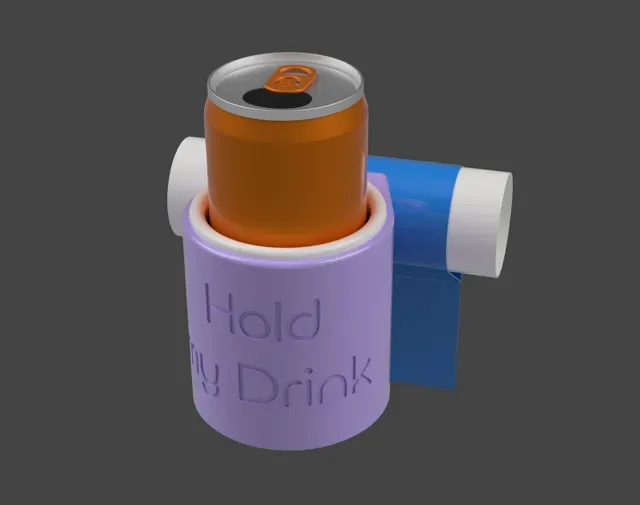

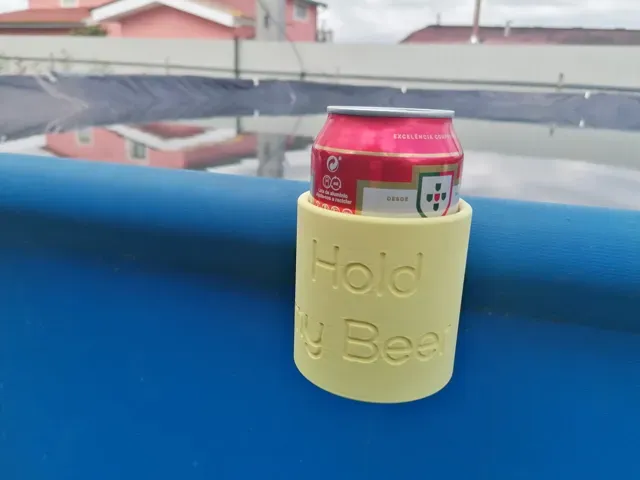

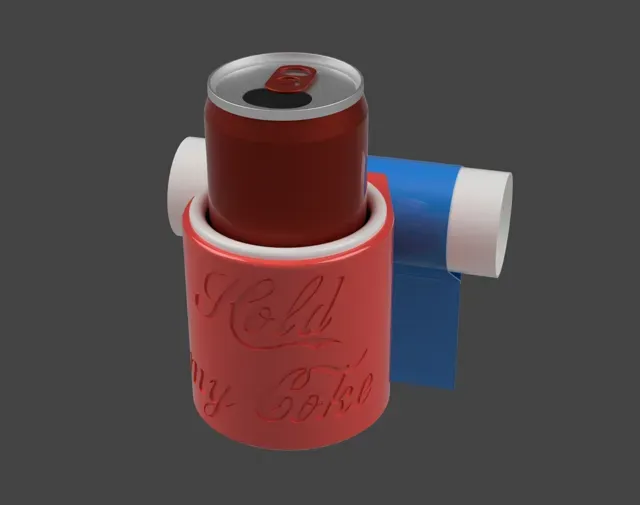

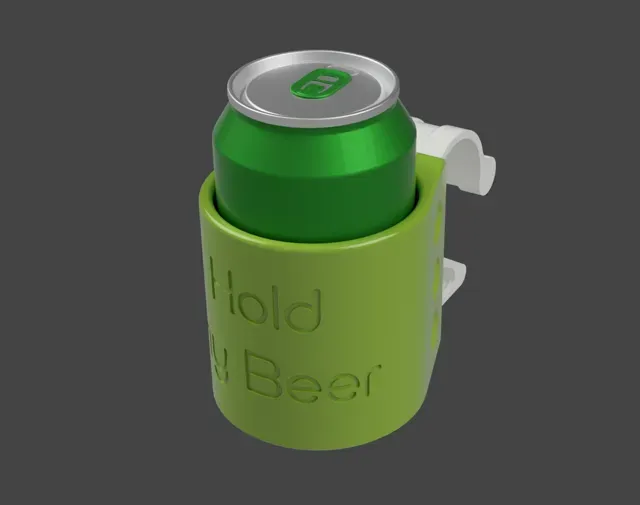

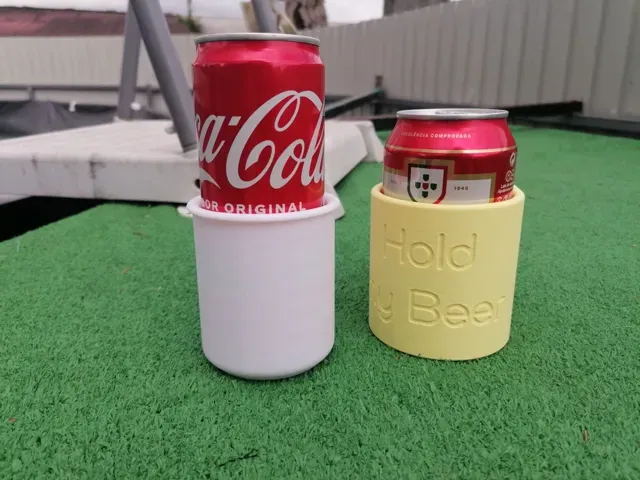

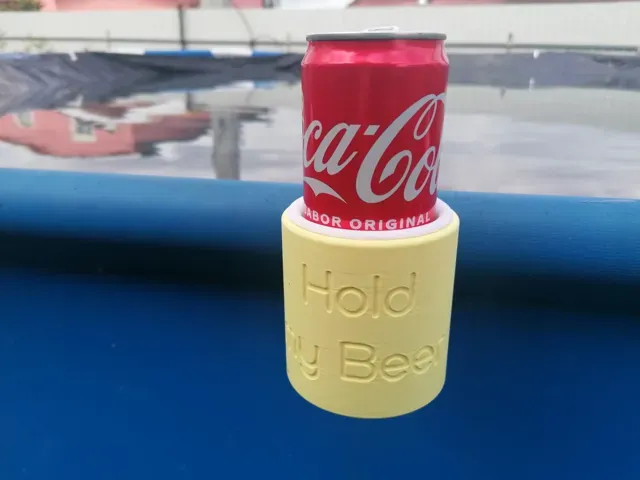

There are four versions: - Without any label - With a “Hold my Drink” label - With a “Hold my Coke” label - With a “Hold my Beer” label

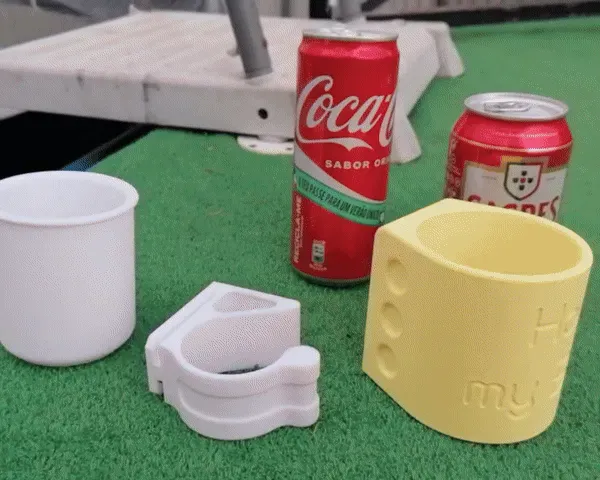

The included 3MF has the preferred settings for each part.

The clamp for 60mm tubes has been added afterwards and is not present in the 3MF, but can download as STL (Clamp_60mm.stl).

In order to hold on high temperature, these should be printed in ABS/ASA or PETG, but even a Light color PLA will probably work just fine.

Руководства и профили печати

Профили печати и шаги

0.2mm layer, 2 walls, 15% infill The included 3MF has the preferred settings for each part.

- 0.20mm layer height - Clamp must have at least 5 walls and 15% infill - Other parts must have at least 3 walls and 15%infill - Brim is advised, specially if printing in ABS/ASA/PETG

In order to hold on high temperature, these should be printed in ABS/ASA or PETG, but even a Light color PLA will probably work just fine.
