Lenovo Thinkpad 3.0mm Trackpoint Cap

This is the 3.0mm variant of the Lenovo Thinkpad Trackpoint cap.

I printed it in TPU. It's a bit messy (being small format TPU) and probably would have printer cleaner on a 0.20mm nozzle, but the end result works GREAT on my Lenovo P1 Gen 6. I actually ordered some third party replacement caps online and it works FAR better than those from a precision perspective. I had to max out the sensitivity to get the store bought replacements to work and this one didn't need that. And the little dots I put on the top are good texture for the finger.

One note - even though the bottom opening where it slides over the keyboard connector is open in the model, it had some extra TPU in it when done. I used some needle tweezers and was able to clean it out.

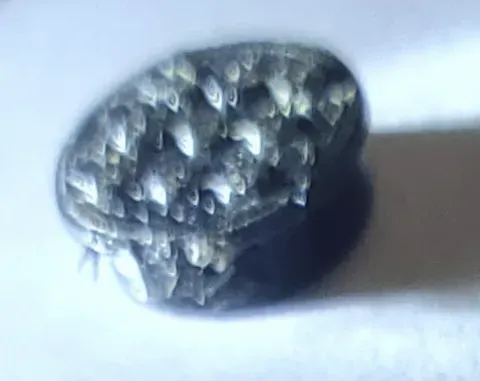

Sorry about the picture quality - the thing is small and black so it's really tough to get a good picture. I printed it in black because the reason I needed a new one in the first place? My dog saw the red one and ate it right off my keyboard. I then replaced it with a new red one and he ate that one too. So far so good in black.

I used Ninjatek Cheetah TPU (I believe it's 95A) on my Bambu X1C with the 0.16mm Optimal setting. It did not need a brim on my smooth plate.

It is compatible with the following Lenovo models (as of the time of uploading it):

P16s AMD G1-21CK - P16s AMD Gen 1, T14 G3-21AJ - T14 Gen 3, ThinkCentre M Traditional Desktop Series-NEC Canopus-IR-LV, ThinkPad C13 series-C13 Yoga G1 Chromebook, ThinkPad C14 Series-C14 G1 Chromebook, ThinkPad E14 Series-E14 AMD G5, ThinkPad E14 Series-E14 AMD G6, ThinkPad E14 Series-E14 G5, ThinkPad E14 Series-E14 G6, ThinkPad E16 series-E16 AMD G1, ThinkPad E16 series-E16 AMD G2, ThinkPad E16 , es-E16 G1, ThinkPad E16 series-E16 G2, ThinkPad L13 Series-L13 2-in-1 G5, ThinkPad L13 Series-L13 Clam AMD G3, ThinkPad L13 Series-L13 Clam , G4, ThinkPad L13 Series-L13 Clam G3, ThinkPad L13 Series-L13 Clam G4, ThinkPad L13 Series-L13 Clam G5, ThinkPad L13 Series-L13 Yoga AMD G3, ThinkPad L13 Series-L13 Yoga AMD G4, ThinkPad L13 Series-L13 Yoga G3, ThinkPad L13 Series-L13 Yoga G4, ThinkPad L14 Series-L14 AMD G3, ThinkPad L14 Series-L14 AMD G4, ThinkPad L14 Series-L14 AMD G5, ThinkPad L14 Series-L14 G3, ThinkPad L14 Series-L14 G4, ThinkPad L14 , es-L14 G5, ThinkPad L15 Series-L15 AMD G3, ThinkPad L15 Series-L15 AMD G4, ThinkPad L15 Series-L15 G3, ThinkPad L15 Series-L15 G4, ThinkPad L16 , es-L16 AMD G1, ThinkPad L16 Series-L16 G1, ThinkPad P1 Series-P1 G4, ThinkPad P1 Series-P1 G5, ThinkPad P1 Series-P1 G6, ThinkPad P1 Series-P1 , ThinkPad P14 Series-P14s AMD G3, ThinkPad P14 Series-P14s AMD G4, ThinkPad P14 Series-P14s AMD G5, ThinkPad P14 Series-P14s G4, ThinkPad P14 , es-P14s G5, ThinkPad P16 Series-P16 G1, ThinkPad P16 Series-P16 G2, ThinkPad P16 Series-P16s AMD G1, hinkPad P16 Series-P16s AMD G2, ThinkPad P16 Series-P16s G2, ThinkPad P16 Series-P16s G3, ThinkPad P16 Series-P16v AMD G1, ThinkPad P16 Series-P16v G1, ThinkPad P16 , es-P16v , ThinkPad T14 Series-T14 AMD G3, ThinkPad T14 Series-T14 AMD G4, ThinkPad T14 Series-T14 AMD G5, ThinkPad T14 Series-T14 G3, hinkPad T14 , es-T14 G4, ThinkPad T14 Series-T14 G5, ThinkPad T14 Series-T14s 2nd Generation, ThinkPad T14 Series-T14s AMD G2, ThinkPad T14 Series-T14s AMD , ThinkPad T14 Series-T14s AMD G4, ThinkPad T14 Series-T14s G3, ThinkPad T14 Series-T14s G4, ThinkPad T14 Series-T14s G5, ThinkPad T16 Series-T16 AMD G1, ThinkPad T16 Series-T16 AMD G2, ThinkPad T16 Series-T16 G1, ThinkPad T16 Series-T16 G2, ThinkPad T16 Series-T16 G3, ThinkPad X1 Series-X1 Carbon , Generation, , ThinkPad X1 Series-X1 Yoga 4th Generation, , ThinkPad X1 series-X1 2-in-1 G9, ThinkPad X1 series-X1 Carbon 8th Generation, ThinkPad X1 series-X1 Carbon 9th Generation, ThinkPad X1 series-X1 Carbon G10, ThinkPad X1 series-X1 Carbon G11, ThinkPad X1 series-X1 Carbon G12, ThinkPad X1 series-X1 Extreme G4, ThinkPad X1 series-X1 Extreme G5, ThinkPad X1 series-X1 Fold 16 G1, ThinkPad X1 series-X1 Nano, ThinkPad , eries-X1 Nano G2, ThinkPad X1 series-X1 Nano G3, ThinkPad X1 series-X1 Titanium G1, ThinkPad X1 series-X1 Yoga 5th Generation, ThinkPad X1 , es-X1 Yoga 6th Generation, hinkPad X1 series-X1 Yoga G7, ThinkPad X1 series-X1 Yoga G8, ThinkPad X12 Series-X12 Detachable 1st Generation, ThinkPad X12 Series-X12 Detachable G2, ThinkPad X13 series-X13 2-in-1 G5, ThinkPad X13 series-X13 AMD G2, hinkPad X13 series-X13 AMD G3, ThinkPad X13 series-X13 AMD G4, ThinkPad X13 series-X13 G2, ThinkPad X13 series-X13 G3, ThinkPad X13 series-X13 G4, ThinkPad X13 series-X13 G5, ThinkPad X13 series-X13 Yoga 2nd Generation, hinkPad X13 series-X13 Yoga G3, ThinkPad X13 series-X13 Yoga G4, ThinkPad X13 series-X13s G1, ThinkPad Z13 Series-Z13 AMD G1, ThinkPad Z13 Series-Z13 AMD G2, ThinkPad Z16 Series-Z16 AMD G1, ThinkPad Z16 Series-Z16 AMD G2, X1 Yoga 6th , ration-20Y0 - X1 Yoga Gen 6, 13 AMD G2-20XJ - X13 AMD Gen 2, 13 Yoga 2nd Generation-20W9 MT 2021
