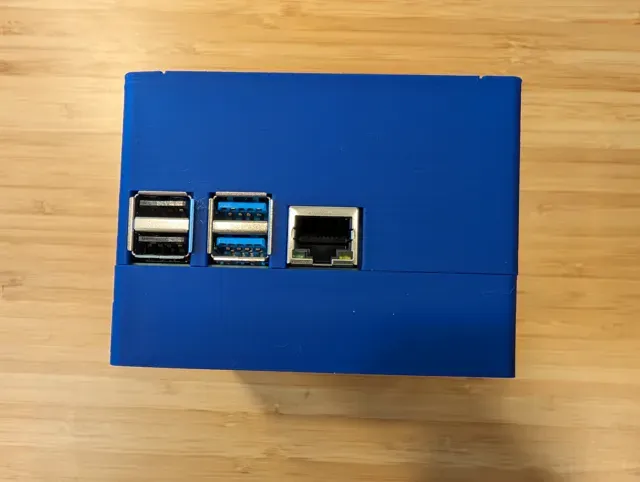

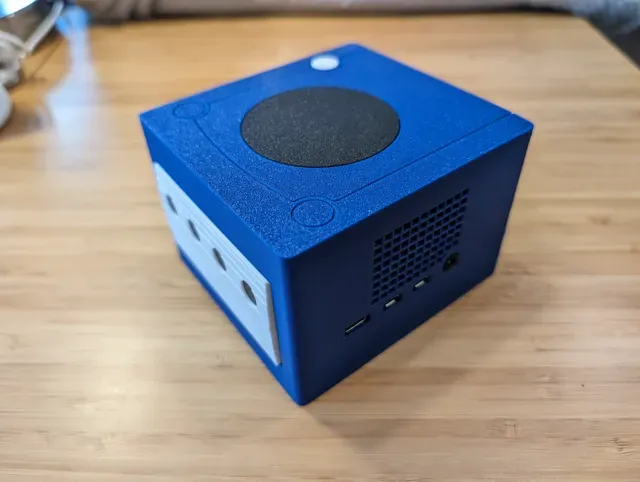

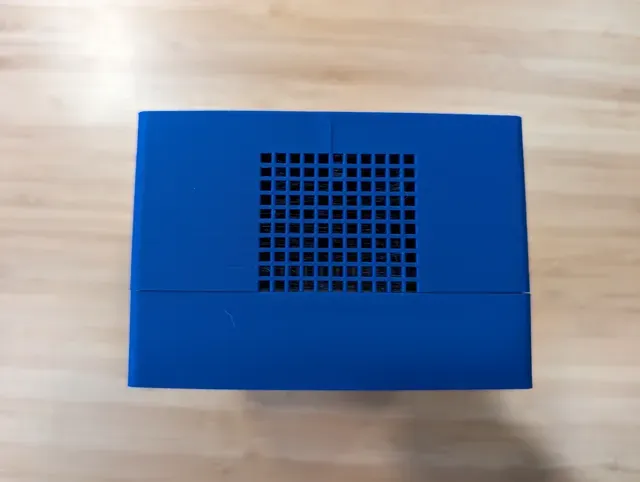

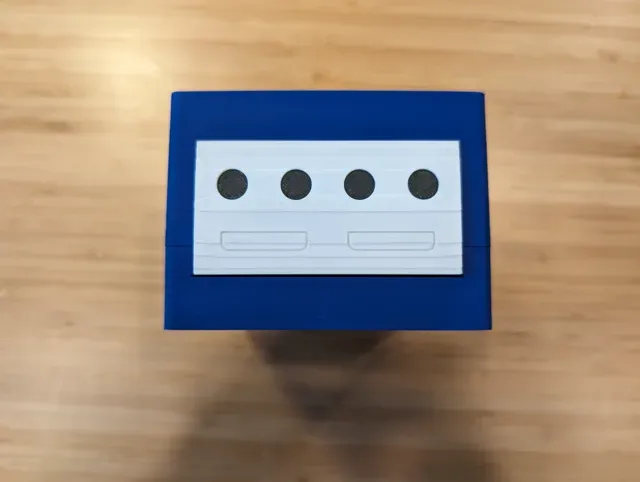

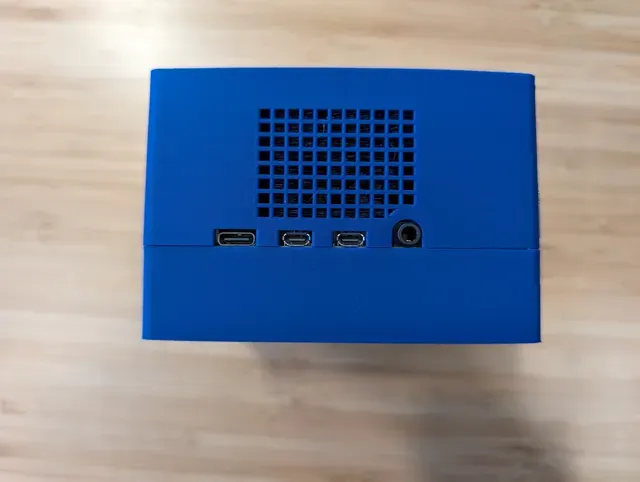

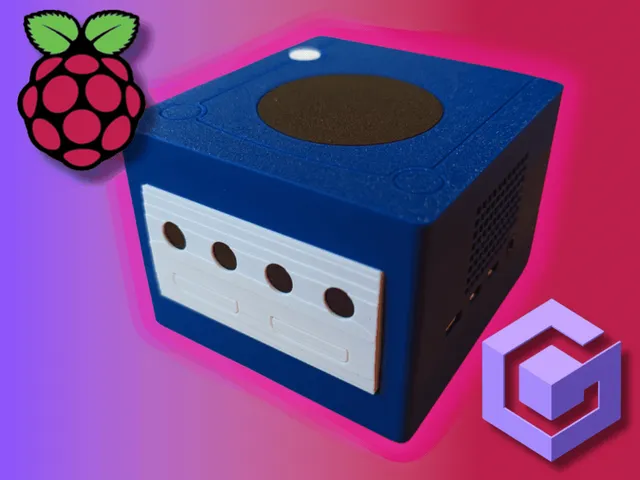

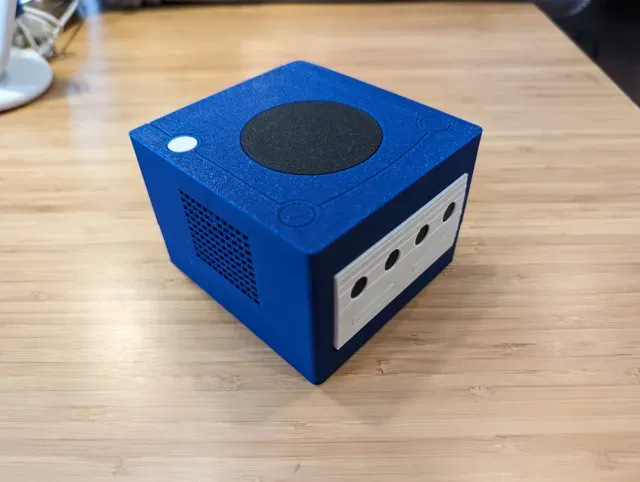

Raspberry Pi 4 Nintendo GameCube Inspired Case

Ever wish your Pi4 looked like a tiny Gamecube? Well now it can with this handy enclosure! Prepare yourself to Pi in style!!

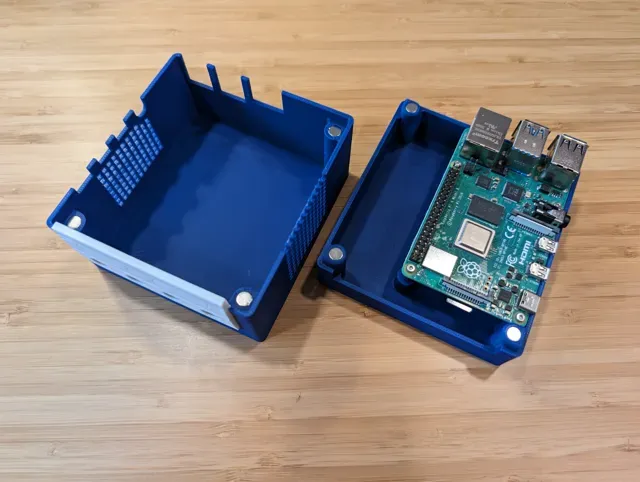

The enclosure is printed in 3 parts. It slides together and stays shut using MAGNETS. Looks great sitting on your desk!

Material

- A Raspberry Pi 4* (obvs) - The printed parts. The materials I used are as follows: - Polymaker Blue PLA* (yes I know this is not the classic GameCube purple) - Polymaker White Matte PLA* - ELEGOO Black PLA* - (Use filamentcolors.xyz to find your perfect color match!) - 4x M2 heat staking inserts* - I would recommend these soldering iron tips for heat staking* - 4x M2 x 6mm screws - I used the ones from this kit* with the included washers - 6x 2mm x 6mm magnets* Assembly

- Print the parts - Heat stake the M2 heat staking inserts* into the 4 posts on the bottom part of the enclosure - Press 3x 2mm x 6mm magnets* into the bosses in one side of the enclosure - Press 3x 2mm x 6mm magnets* (making sure the polarity is correct) into the other side of the enclosure - Install the Raspberry Pi 4* into the bottom of the case with the M2 screws (washers optional) - Snap the “front” printed part into the “top” part - Slide the "top+front" onto the “bottom+Pi” assembly Like this model?

- Buy my favorite brand of filament for your parts* - Check out my other models - Buy me a coffee* (fuel my caffeine addiction) - Read my blog - Get Arc* , my favorite browser, for free

* = Affiliate Link. I use and recommend any product linked here unless otherwise noted.

Happy Tinkering!
