BambuStudio Infill Sample Swatches

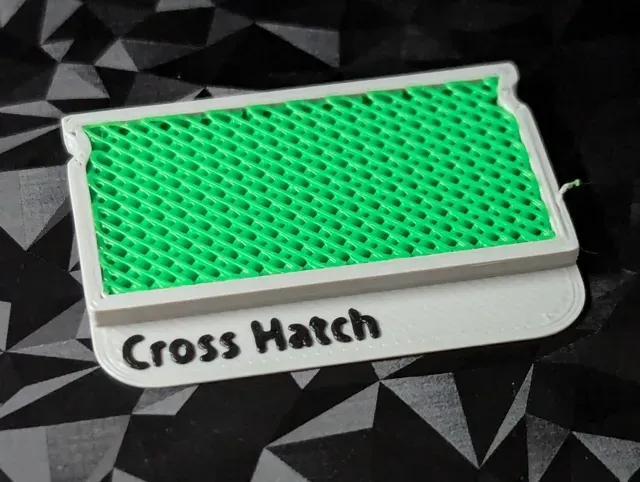

17 infill sample swatch cards for BambuStudio infills:

"Concentric", "Rectilinear", "Grid", "Line", "Cubic", "Triangles", "Tri-hexagon", "Gyroid", "Honeycomb", "Adaptive Cubic", "Aligned Rectilinear", "3D Honeycomb", "Hilbert Curve", "Archimedean Chords", "Octogram Spiral", "Support Cubic", "Cross Hatch"

Recommended slicer settings:

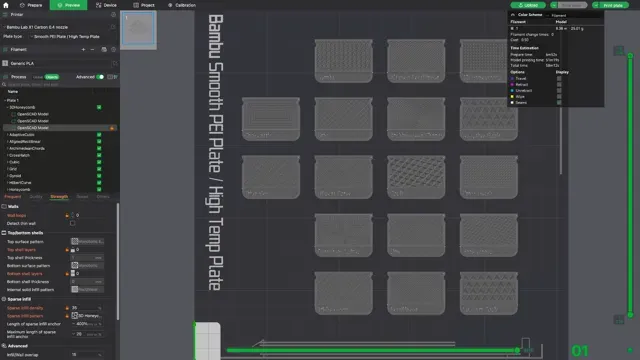

- Global - Layer height 0.2 - Wall Loops 3 - Detect thin walls off - Infill objects - Wall Loops 0 - Top shell layers 0 - Bottom shell layers 0 - Sparse Infill density 33% The included Bambu Studio .3mf files is are configured with the above swatch settings. 3 variants are included:

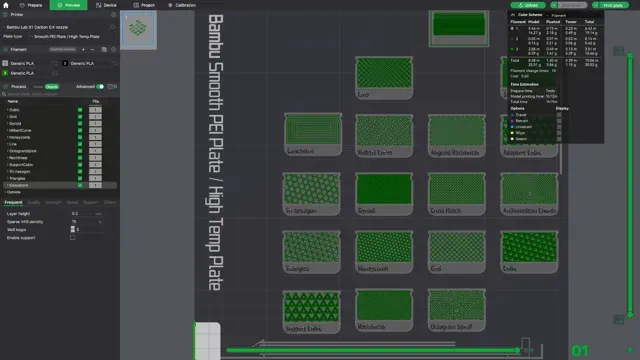

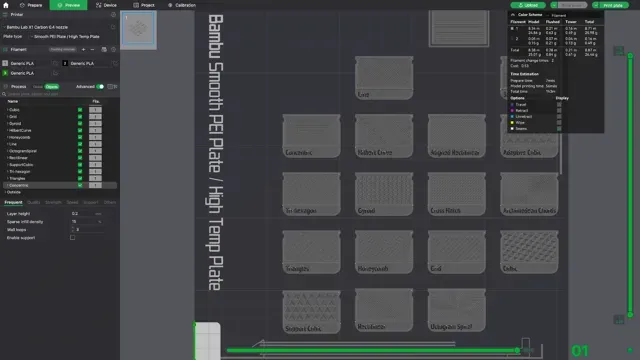

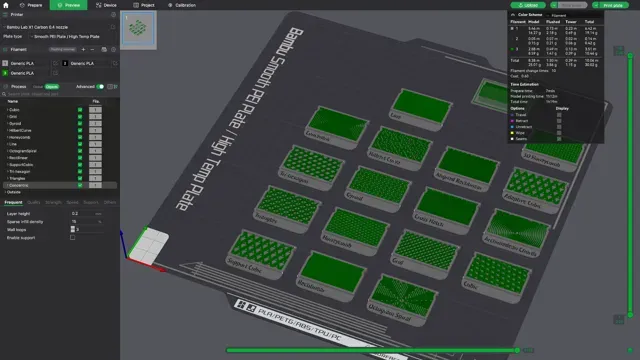

- Mono single color swatches - Two color configuration with label text in a separate color - Three color configuration with swatch, infill, and label in separate colors The individual swatch .3mf are provided in a separate folder. When loading the individual .3mf files for each swatch, load it as a multi-part object. Each swatch has three child parts, the main swatch body, the label text, and the infill. If you get an warning about “Object to small” select “No”

The Included OpenSCAD model can be use to create new custom labelled swatches.

🎁 Check out the Small Swatch Samples Organizer Box to keep you swatches in

https://makerworld.com/en/models/81707#profileId-110039

Swatch format inspired by Filament swatch / sample by Makkuro and Infill Swatches by crammers
