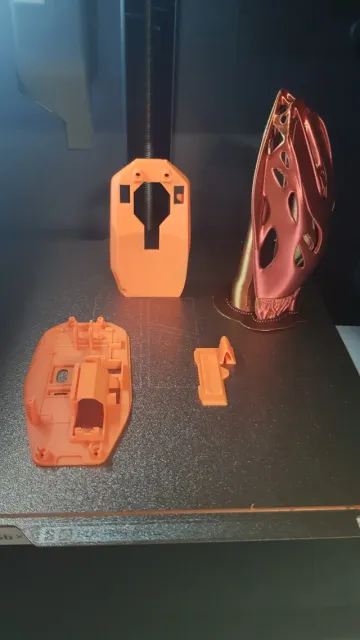

Bambu Lab Ultimate LEFT HAND mouse! — Фото 2 из 7

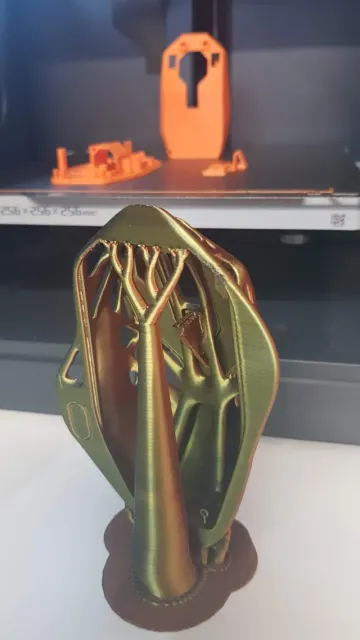

Bambu Lab Ultimate LEFT HAND mouse! — Фото 3 из 7
Bambu Lab Ultimate LEFT HAND mouse! — Фото 4 из 7

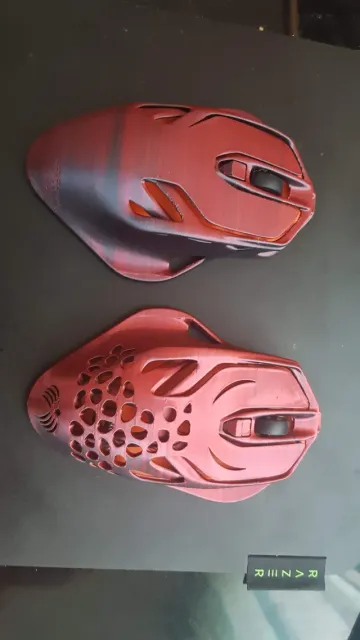

Bambu Lab Ultimate LEFT HAND mouse! — Фото 5 из 7
Bambu Lab Ultimate LEFT HAND mouse! — Фото 6 из 7
Bambu Lab Ultimate LEFT HAND mouse! — Фото 7 из 7
3D-модель · MakerWorld

Bambu Lab Ultimate LEFT HAND mouse!

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY
Можно печатать, изменять и использовать в коммерции — с указанием автора.
Форматы
STL
  • 174 Лайки
  • 1 022 Загрузки
  • 583 Напечатали
  • 338 В подборках
  • 77 Бусты
  • 100 Комментарии
  • 0 Просмотры

Автор:Sergiu

Опубликована

Скачать на MakerWorld

Описание

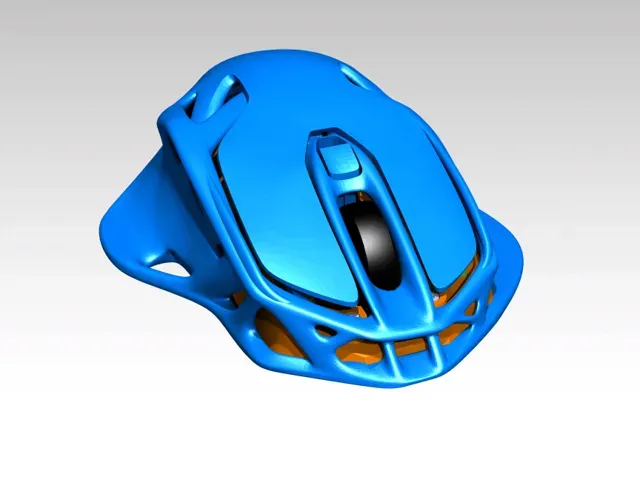

This is a mirrored and adapted version for LEFT Hand of the Ultimate Bambu Lab mouse. The Ultimate (RH) version includes all the improvements I have found or I have done for this mouse. Being quite an ergonomic design, intended for the right hand use, I assume the RH version is not optimal for those using mainly the left hand.

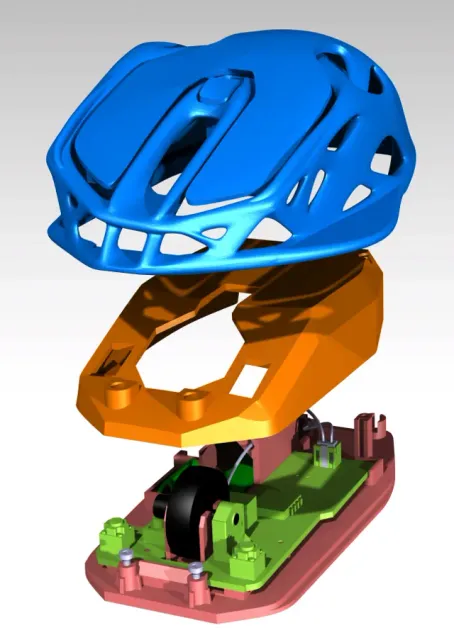

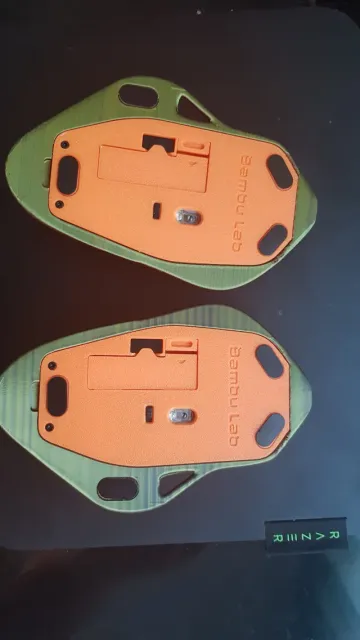

Here is where this model steps in. The main outer shell is mirrored, the lower shell is kept where it interferes with the PCB and mirrored the rest, the cover for PCB is kept but adapted to the mirrored outer shell.

Long story short - it fits properly. I did print it and assembled it exactly like the RH version (excellent instructions in the original Bambu Lab version).

The very last assembly step - the fully assembled base with the top shell requires a bit of pressure during the early displacement phase, then it slides easily in the right positions (too much to explain why - just press it a bit).

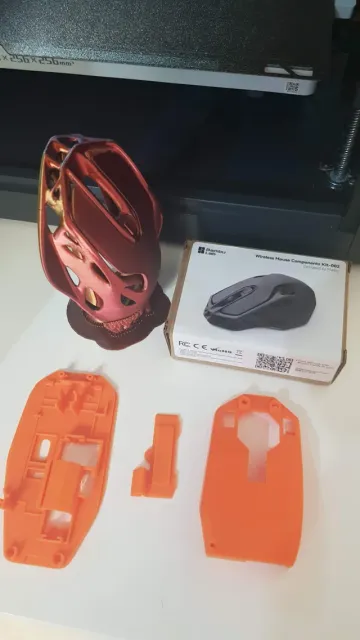

You need the 4 printed parts included in this model and the BL kit: https://eu.store.bambulab.com/products/wireless-mouse-components-kit-002

Once again - this version is designed for the LEFT HAND . If you need the right hand version please use the Ultimate models listed in the remix zone.

Руководства и профили печати

Профили печати и шаги

0.16mm layer, 2 walls, 15% infill Please use the hybrid supports as defined when printing the main outer shell. Please make sure the hot plate is properly cleaned before the print. Use wide rafts (10mm) for the outer shell if you have adhesion problems - but I have printed at least 10 mice without rafts and without trouble.

The second hot plate with base geometry and cover does not need supports, but I cannot define different print profiles between plates (it might be possible, but I do not know how).

0.16mm layer, 2 walls, 15% infill Increased number of supports, Slightly reduced speed.
