Stackable Moss Pole - Petit 70mm by MochPoch

Smaller version of the Moss Pole by MochPoch

New Bamboo moss pole system has been released. Click here 🌱

If you'd like to support my projects or obtain a commercial license, consider joining my Patreon membership:

https://www.patreon.com/MochPoch

Membership

For one-time support, you can also fuel my creativity with a cup of coffee:

https://buymeacoffee.com/MochPoch

Boost Me Thank you for the encouragement and support! 😊

Length (mm)

Width 70

Depth 38

Pot Size

This plant support pole will fit pots that are at least 70 cm in diameter. However, the smallest base available is 60cm in diameter.

Pot and Pole Medium

This plant support pole has been tested with moss, aroid mix and LECA pebbles. The base on the other hand has been tested with soil, mineral substrate, aroid mix and LECA pebbles.

Plant

It is best used for plants with finer roots like (but not limited to): Philodendron Heartleaf, Brasil, Silverstripe etc.

Let's grow this list together. Let me know which plant of yours thrive in this pole version.

Do you have a plant with a thicker root system? Try the original 118m wide version .

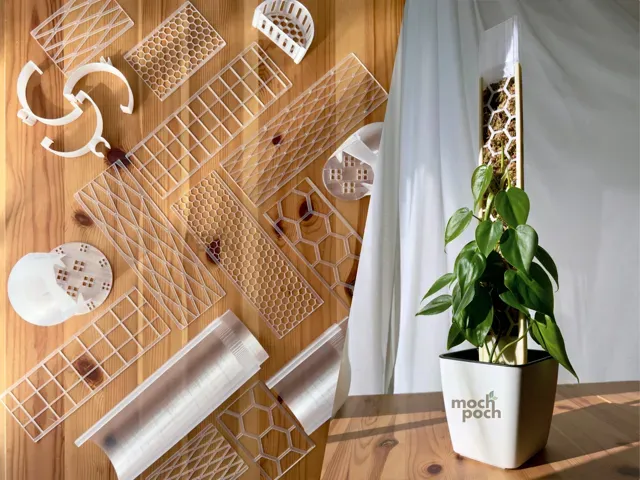

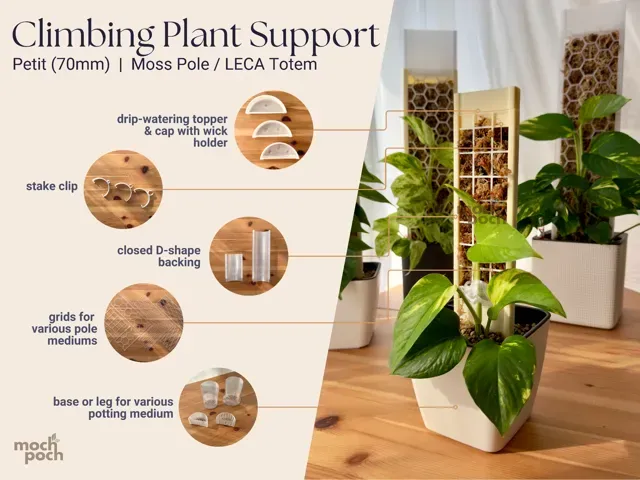

The climbing plant support is made of the following components:

- Backing - Grid - Base / Leg - Watering Attachment (Drip Watering or Wick Watering) - Stake Clip The basic combination includes: base + backing + grid

The following steps are suggested in order to prevent roots from attaching to the layer gaps. As with any other closed-back growing poles, the roots tend to attach to the backing for support.

The option you choose depends on the material you printed with:

- Applying a coat or sealant, or - Sanding the inner portion of the component

Building the pole with the Print Profiles

There are 4 print profiles available.

- Base and Backing combination - Firstly, select the base and backing combination depending on your medium and pot size. - Grid options - Secondly, choose and print the grid for your B ase and Backing Combination - Backing options - Time to stack the pole higher? Choose and print the backing size you need. Go to the Grid Options and print the matching grid. - Base options - Just in case you want to print just the base without the backing.

Building the pole with the STL files

These are the basic parameters to be set.

Parameter PLA PETG

Nozzle diameter 0.4 mm 0.4 mm

Layer Height 0.2mm 0.2mm

Print Speed Printer-default (50% is recommended) * 50% (silent mode) *

* bed adhesion is crucial for the success of this print. The brim setting on some parts help with this. Slow speed can be set after the print (for some printers) has started, instead of fiddling with the print speed for the different layer components

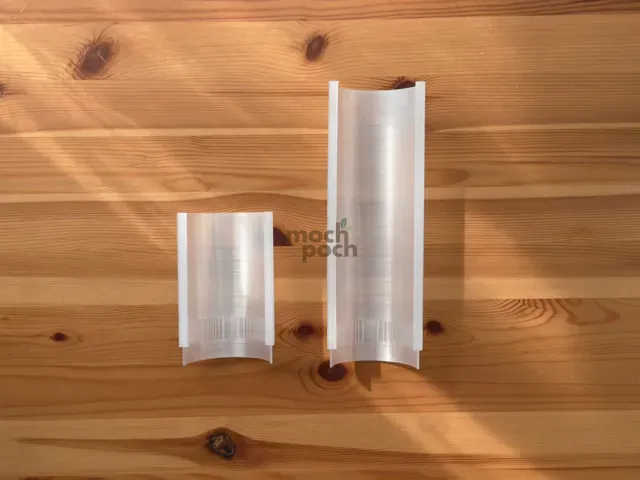

Backing

- Print top-side-down without supports, where the insert flap is at the top. (For reinforced strength on the flap, print at a 45° angle.) - Outer Brim set to 20 mm width. (Brim-object gap may be set to 0.13 to avoid the need to deburr but it might affect the bed adhesion negatively) - Set at least 3 walls Grid

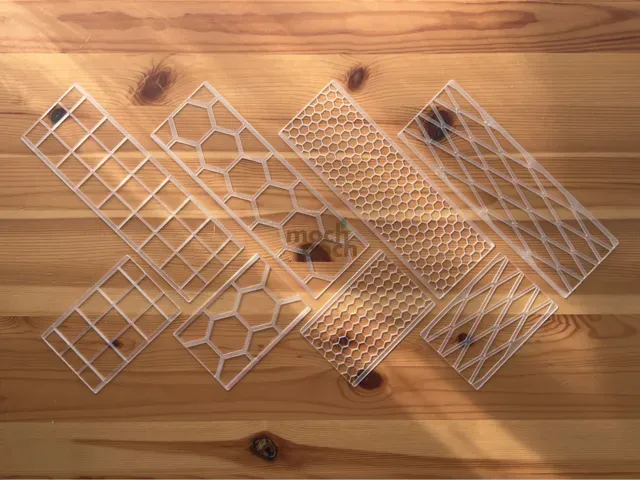

Print flat on the bed without brim and support. ** If you find the grid too loose or tight in the backing, you can increase/decrease the depth.

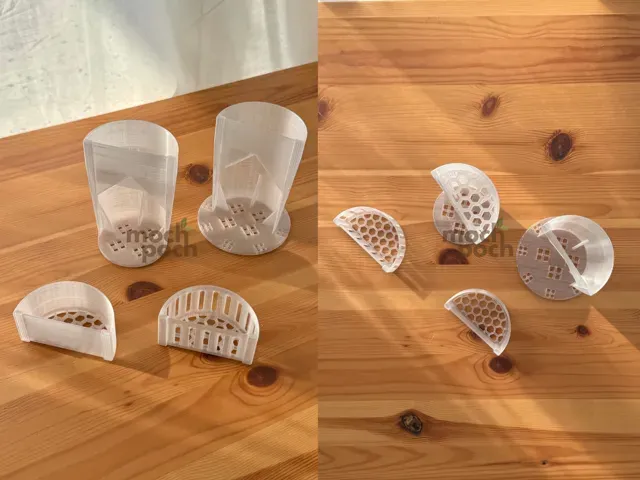

Base / Leg

- Print with the flat side on the bed without brim and support. (For reinforced strength on the flap, print at a 45° angle.) - Set at least 3 walls

Руководства и профили печати

Профили печати и шаги

Base and Backing Combinations (recommended settings, 0.2mm) NOTE: This is just the base and backing combinations. Print the chosen grid from the Grid Options .

Ensure that the bed plate is clean. When printing the pole upright, set the speed to silent .

Plate 13 onward has a backing on the 45° orientation for a sturdier print.

Choose 1 plate for your build.

Use the Grid Options print profile to select your matching grid. When it's time to stack, use the Backing Options and Grid Options print profiles.

Plate Contents:

Plates with backing on a 45° orientation

- Plate 13 : Base Option 1 with 200mm Backing at 45° - Plate 14 : Base Option 2 with 200mm Backing at 45° - Plate 15 : Round Base with Insert (60mm⌀ x 100mm) with 200mm Backing at 45° - Plate 16 : Skirt Base with Insert (60mm⌀ x 100mm) with 200mm Backing at 45° - Plate 17 : Round Base with Insert (60mm⌀ x 125mm) with 200mm Backing at 45° - Plate 18 : Skirt Base with Insert (60mm⌀ x 125mm) with 200mm Backing at 45° - Plate 19 : Base Option 1 with 100mm Backing at 45° - Plate 20 : Base Option 2 with 100mm Backing at 45° - Plate 21 : Round Base with Insert (60mm⌀ x 100mm) with 100mm Backing at 45° - Plate 22 : Skirt Base with Insert (60mm⌀ x 100mm) with 100mm Backing at 45° - Plate 23 : Round Base with Insert (60mm⌀ x 125mm) with 100mm Backing at 45° - Plate 24 : Skirt Base with Insert (60mm⌀ x 125mm) with 100mm Backing at 45°

Plates with backing flat on the bed

- Plate 1 : Base Option 1 with 200mm Backing - Plate 2 : Base Option 2 with 200mm Backing - Plate 3 : Round Base with Insert (60mm⌀ x 100mm) with 200mm Backing - Plate 4 : Skirt Base with Insert (60mm⌀ x 100mm) with 200mm Backing - Plate 5 : Round Base with Insert (60mm⌀ x 125mm) with 200mm Backing - Plate 6 : Skirt Base with Insert (60mm⌀ x 125mm) with 200mm Backing - Plate 7 : Base Option 1 with 100mm Backing - Plate 8 : Base Option 2 with 100mm Backing - Plate 9 : Round Base with Insert (60mm⌀ x 100mm) with 100mm Backing - Plate 10 : Skirt Base with Insert (60mm⌀ x 100mm) with 100mm Backing - Plate 11 : Round Base with Insert (60mm⌀ x 125mm) with 100mm Backing - Plate 12 : Skirt Base with Insert (60mm⌀ x 125mm) with 100mm Backing

Print Profile Settings:

Regular Base

- 0.2mm layer height - 4 wall loops - 15% infill - no brim Round or Skirt base

- 0.2mm layer height - 4 wall loops - 15% infill - no brim Backing ( Printing at 50% speed (silent) is recommended. )

- 0.2mm layer height - outer brim enabled at 20mm - 4 wall loops - 15% infill Backing at 45° orientation ( Printing at 50% speed (silent) is recommended. )

- 0.2mm layer height - outer brim enabled at 20mm - 4 wall loops - 15% infill - organic tree support with 8mm initial layer expansion

Additional attachments are available:

- Watering Attachment (Drip Watering or Wick Watering) - Stake Clip

Grid Options (recommended settings, 0.2mm) NOTE : This is just the grid options. Use Backing Options or Base Options for variants of the other components.

Choose 1 plate for your build.

Print Profile Settings:

- 0.2mm layer height - 4 wall loops - no brim

Additional attachments are available:

- Watering Attachment (Drip Watering or Wick Watering) - Stake Clip

Backing Options (recommended settings, 0.2mm) NOTE: This is just the backing options. Use Grid Options or Base Options for variants of the other components.

Choose 1 plate for your build. ( Printing at 50% speed (silent) is recommended. )

Plates 1 and 2 have backings on the 45° orientation for a sturdier print.

Print Profile Settings:

- 0.2mm layer, - 5 walls, - 15% infill - Outer brim at 20mm with 0.1 Brim-Object Gap - Organic Tree Support with 8mm initial layer expansion for backing at 45° orientation

Additional attachments are available:

- Watering Attachment (Drip Watering or Wick Watering) - Stake Clip

Base Options (recommended settings, 0.2mm) NOTE : This is just the base options. Use Grid Options or Backing Options for variants of the other components.

Choose 1 plate for your build. Deselect parts that are not needed.

Print Profile Settings:

- 0.2mm layer height - 5 wall loops - 15% infill - no brim and support

Additional attachments are available:

- Watering Attachment (Drip Watering or Wick Watering) - Stake Clip

For A1 Mini - All Parts (recommended settings, 0.2mm) NOTE: This print profile is for the A1 Mini and it contains all variants compatible with the printer. Please refer to the model description for more print setting details.

Print Configuration

Regular Base
