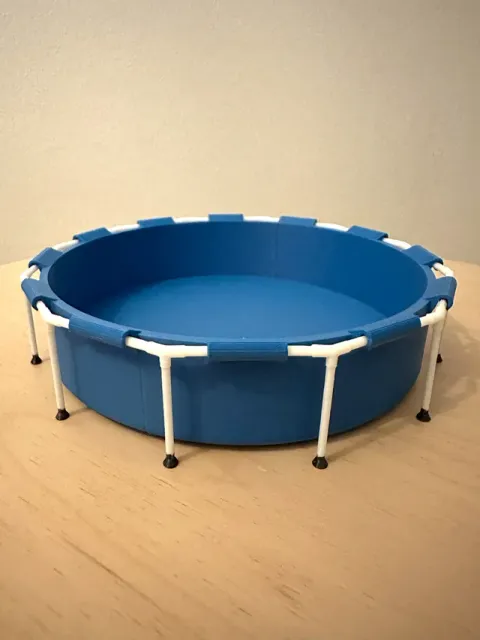

Pool Basin Swimmingpool Planschbecken Puppenhaus

Hello, I have once again constructed a small and simple 3D model. A Pool in a good scale to PL……. I uploaded 2 print profiles for Bambu Lab.

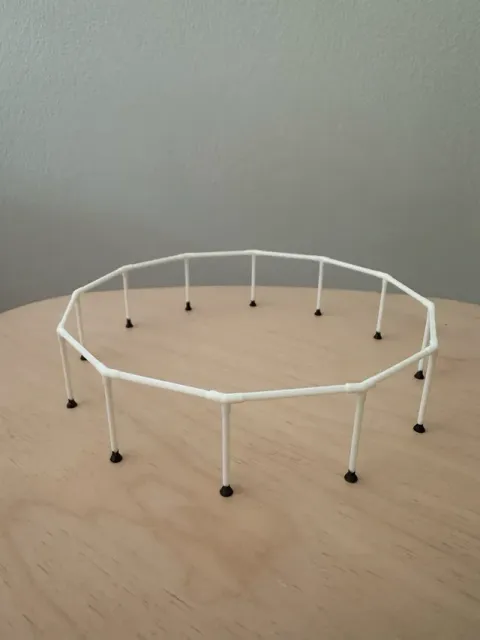

Pool Frame

The frame is printed upside down and normal support is enabled. (I printed the frame with feet down - it needed a lot more support structure and the thin legs came loose towards the end :/ )

The pool frame can also be divided as PARTS and the ends of the legs printed directly in black - but this then requires AMS and more waste.

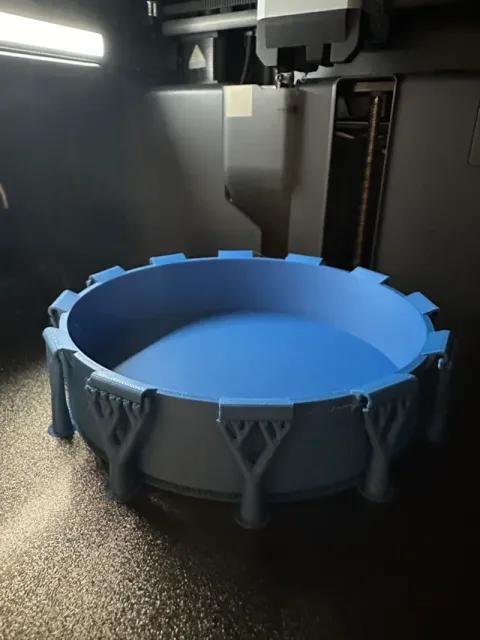

Pool Basin The pool basin is 3 mm thick and is printed with a tree support structure, 50% filling and 3 walls (semi-waterproof) and is then simply placed in the pool frame. Print with Z seam aligned. My picture with the spotty pool, the Z seam was set to random - not good quality :/

Info There are blue hooks on the pool basin and since these are printed horizontally, stability is a bit difficult, so let them cool down after printing and be careful when inserting or removing them.

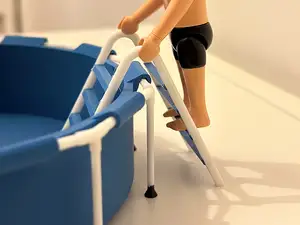

UPDATE 2 Pool ladder can you find here https://makerworld.com/de/models/585117

At the end of the pool frame legs are a kind of cone that can be painted with sharpie or paint, for example black.

The model is a simulation of a simple "intex pool".

I printed the pool with the Bambu Lab P1S, 0.4mm nozzle. Settings 3 walls, 50% fill and the pool basin with tree supports and the pool frame (ring on bottom, legs on top) with normal supports. Bambu Lab PLA filament blue & white matt in AMS.

Have fun and good luck.

Greetings
