Spool dry box

Сведения о модели

Площадка
MakerWorld
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STL3MF
  • 1 131 Лайки
  • 1 951 Загрузки
  • 842 Напечатали
  • 3 492 В подборках
  • 289 Бусты
  • 332 Комментарии
  • 0 Просмотры

Автор:Maoirae

Опубликована

Описание

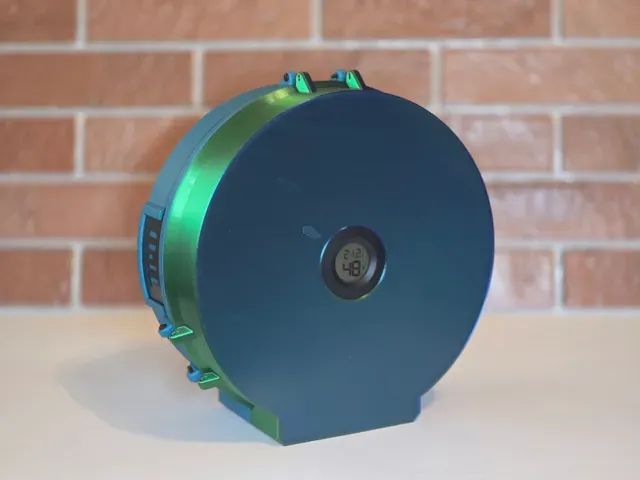

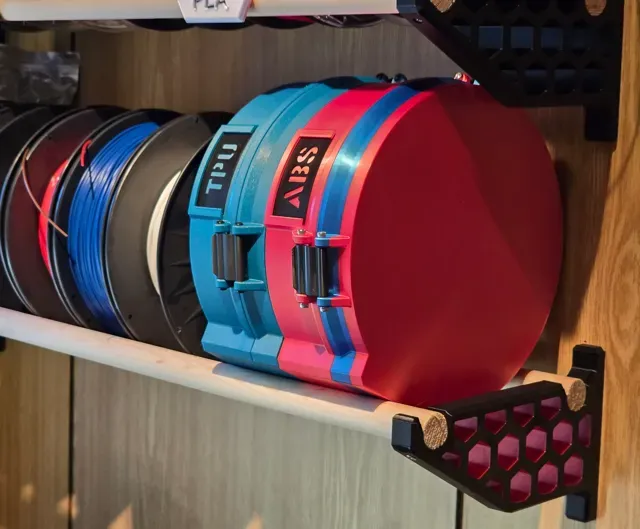

New version 2 with hole for Hygrometer. Added hole in top lid for round Hygrometer, it sits in flush so you can stack filament boxes on each other or close together. If you want to upgrade from first version, print just top lid for 85mm spools or top lid for 75mm spools and new desicant cap, all others parts are the same.

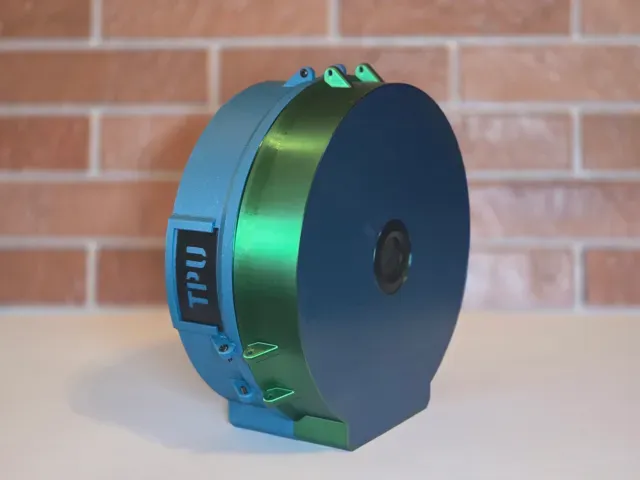

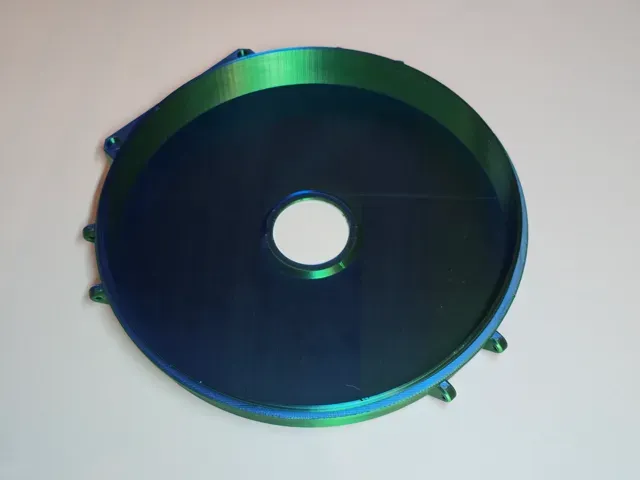

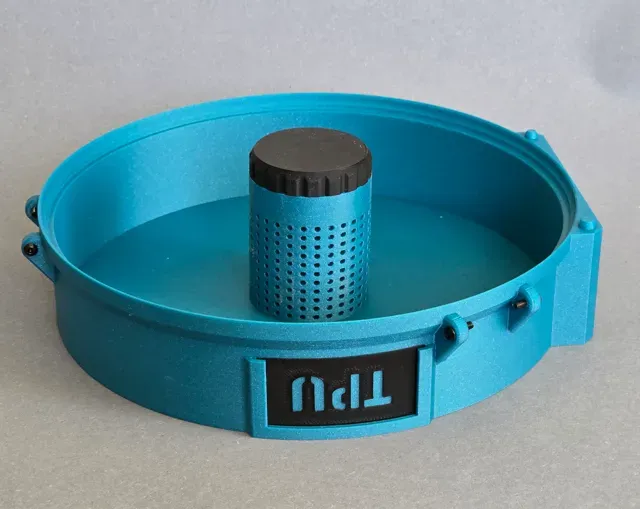

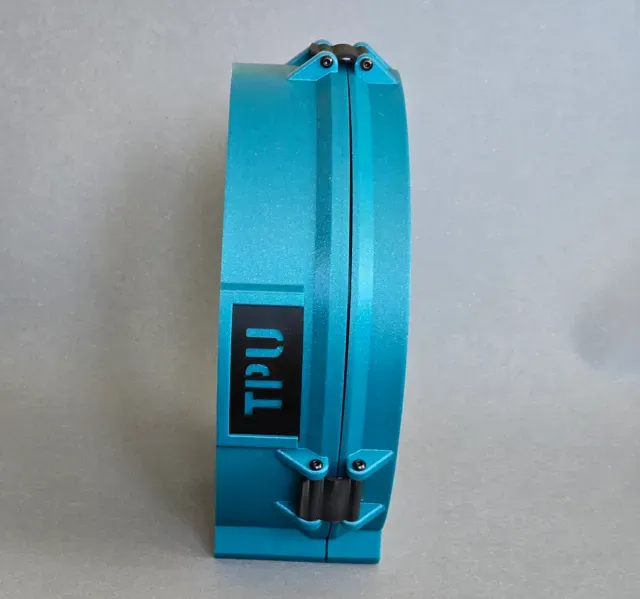

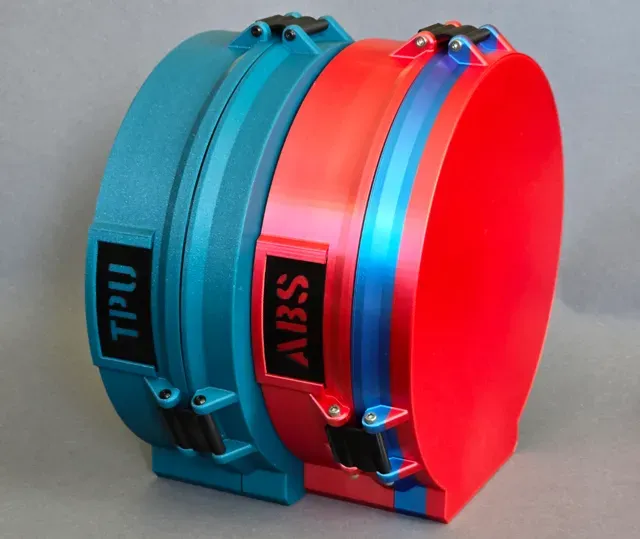

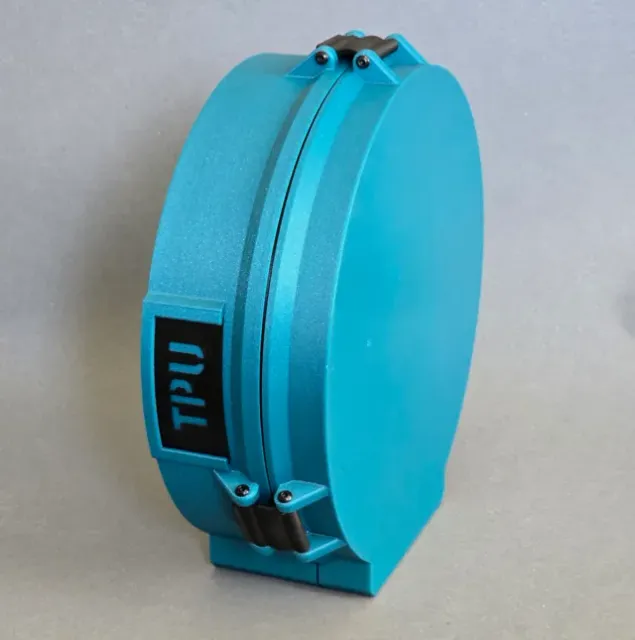

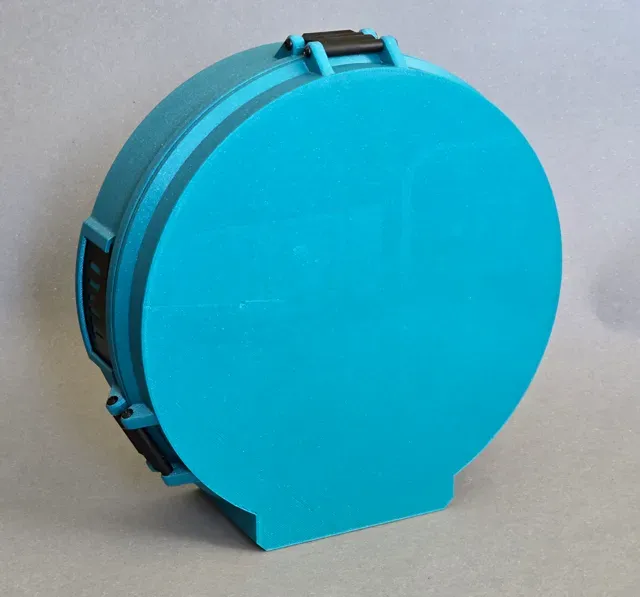

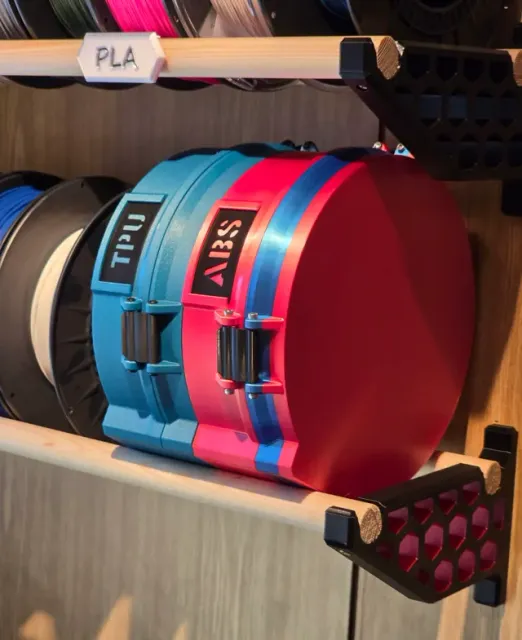

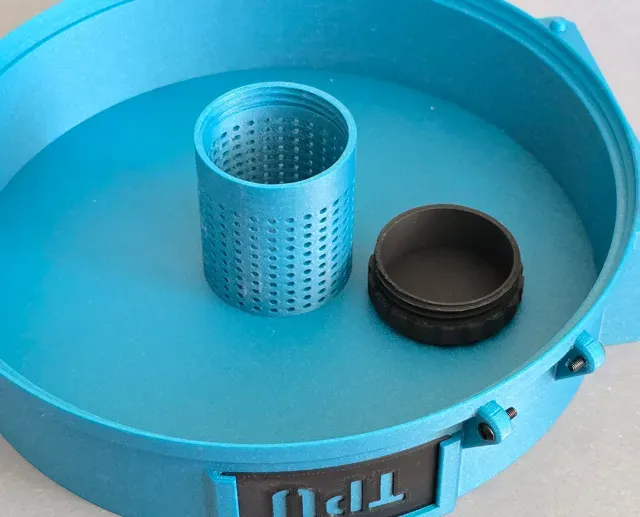

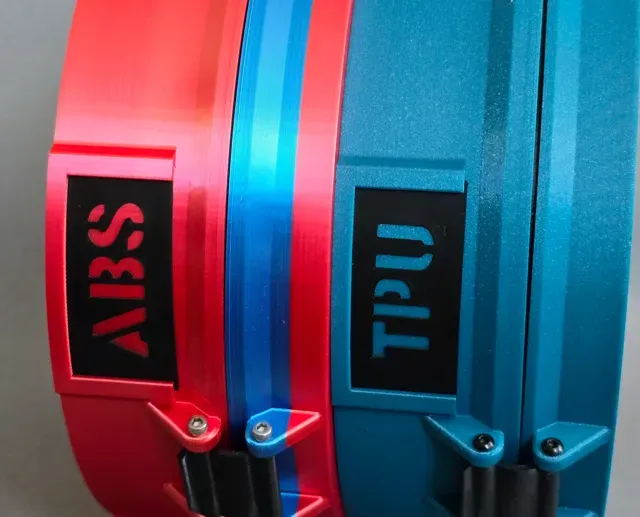

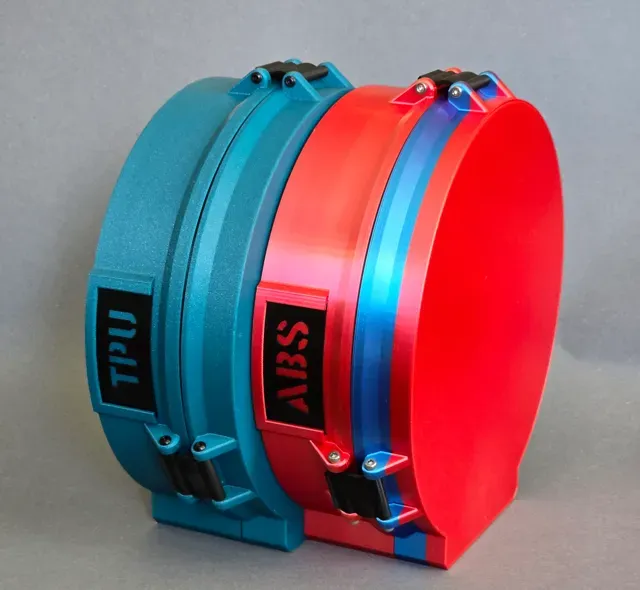

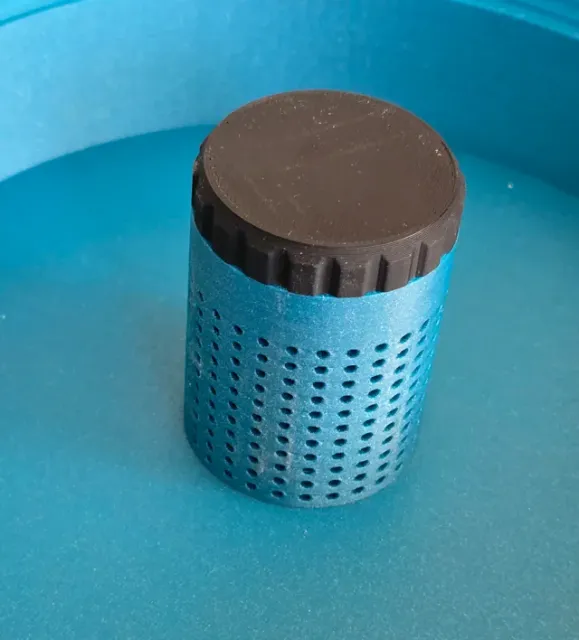

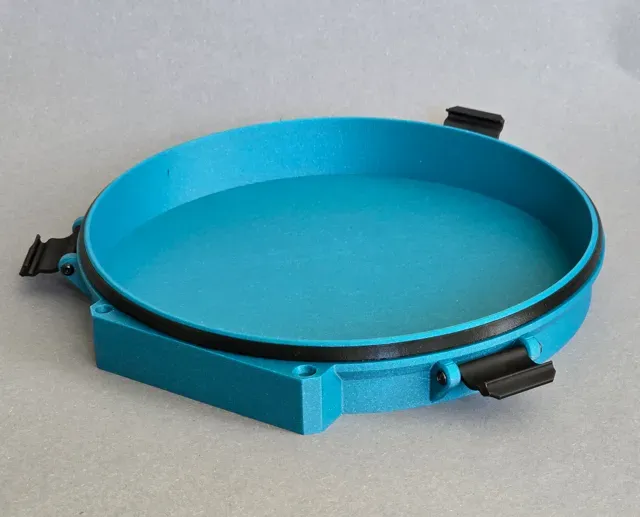

Spool box to keep your filament dry, made with flat bottom so it can stand on its own on your desk. Added desicant compartment. Need 6pcs M3x40mm screws or 12pcs some short ones. Rubber seal printed with TPU. Tags are printed in 62x30mm dimension, and you can find them here: https://makerworld.com/en/models/565708#profileId-485361

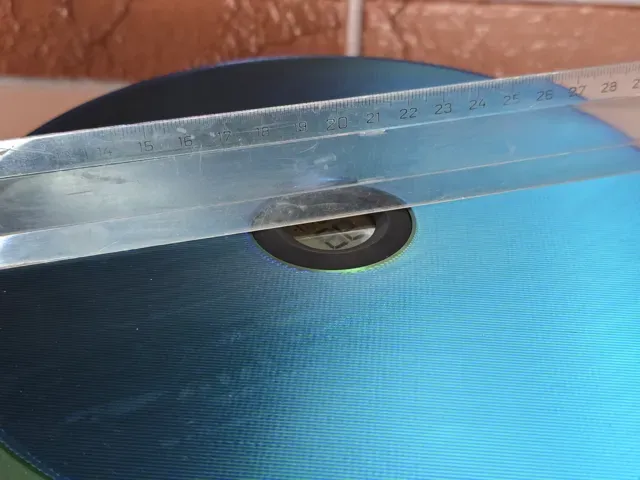

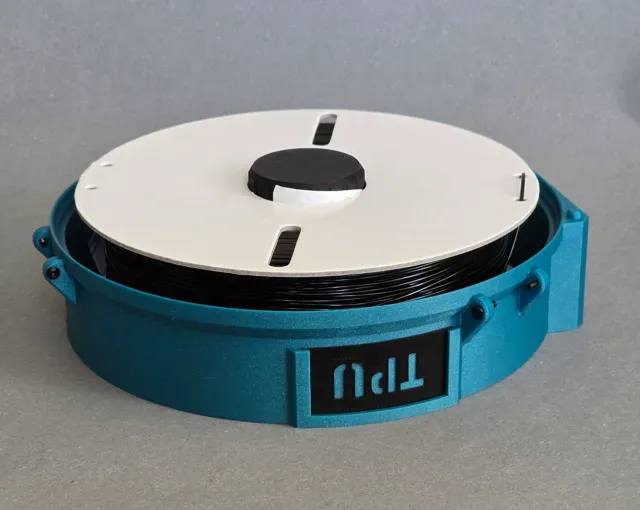

Max dimensions for spool: 210x71mm with minimum 50mm hole.

Added another lid for spools to max width 85mm.

Руководства и профили печати

Профили печати и шаги

71mm Spool - 0.24mm layer, 2 walls, 7% infill

V2 71mm Spool with Hygrometer New version with hole for hygrometer

85mm spool - 0.24mm layer, 2 walls, 7% infill

V2 85mm Spool with HYgrometer Version 2 with hole for Hygrometer

0.24mm layer, 2 walls, 7% infill Only a minor modification to the original model, just for the lid. For the price of small supports, a part is printed to replace the need for a screw. This means of course that the clips must be on the bottom part, as in the photo.

Cap with Hygrometer Cutout I sliced this using the settings from the original and did not print it. However, user Official Blendz printed it out and confirmed the fit for me. The picture of the finished product is in the photos.
