ELEGOO Plastic Spool AMS Lite Adapter

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: CC-BY-NC-SA; Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы: 3MFSTL

1 375 Лайки
12 692 Загрузки
11 542 Напечатали
3 456 В подборках
706 Бусты
1 664 Комментарии
0 Просмотры

Автор:Carlex

Опубликована 07.08.2024

Скачать на

MakerWorld

Описание

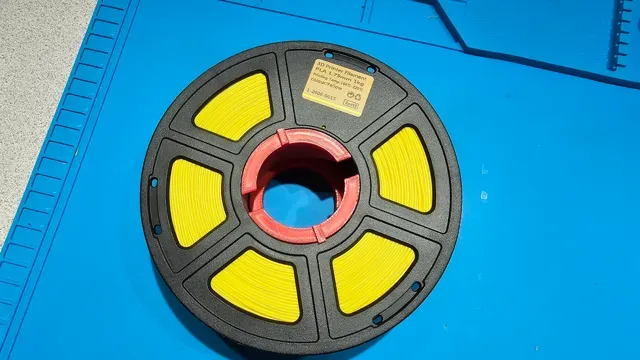

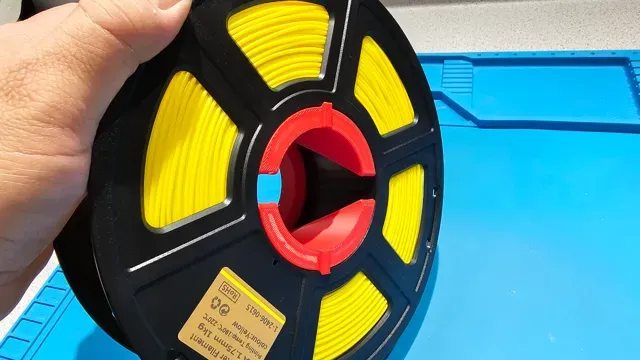

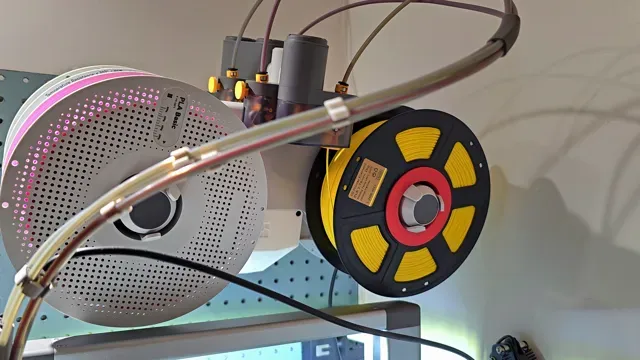

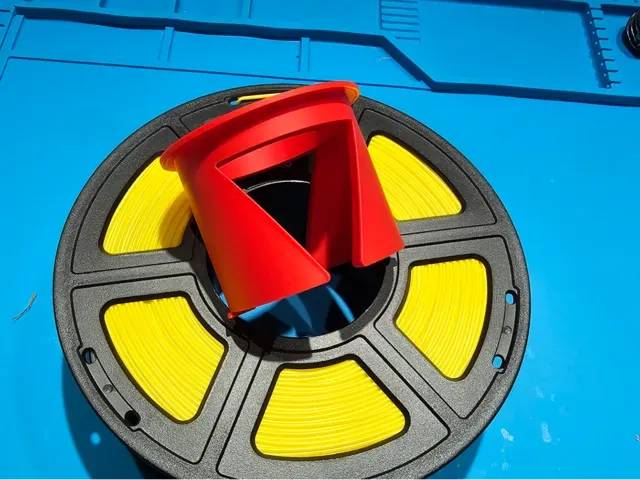

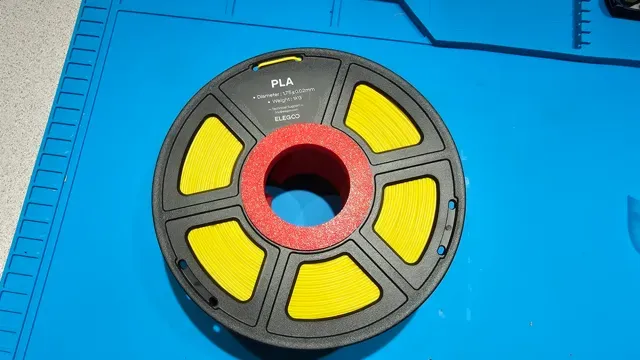

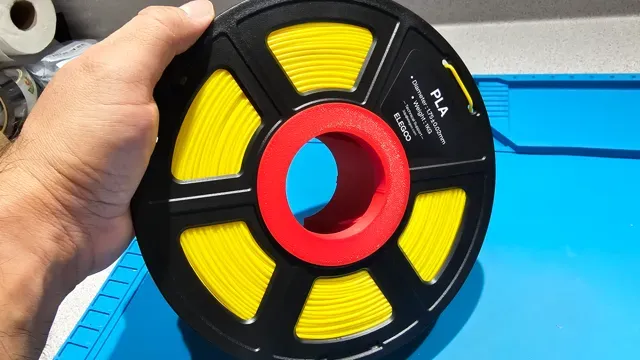

This adapter is sized to fit the new Elegoo Plastic spool. Using this adapter allows you to use it the plastic spool in your AMS Lite.

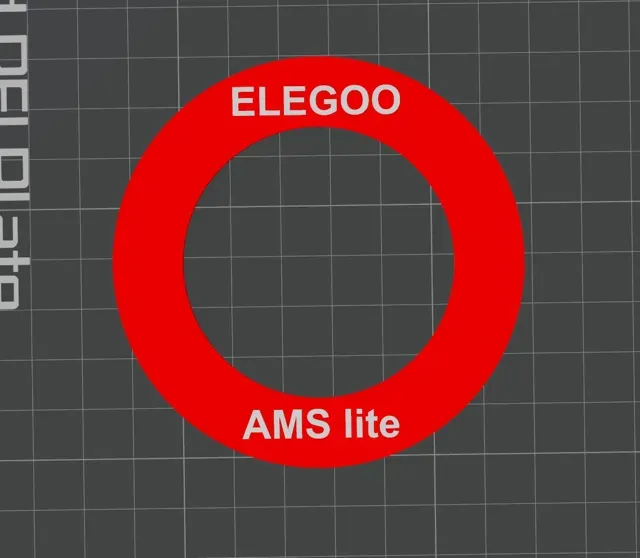

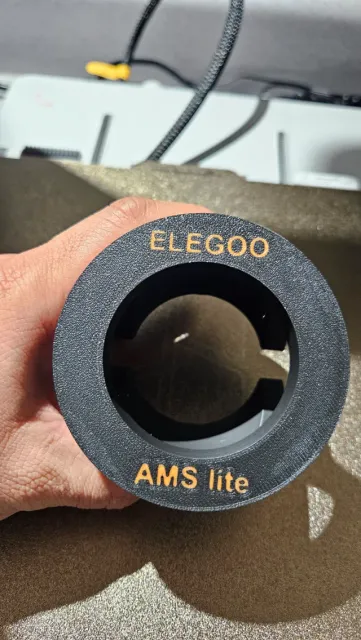

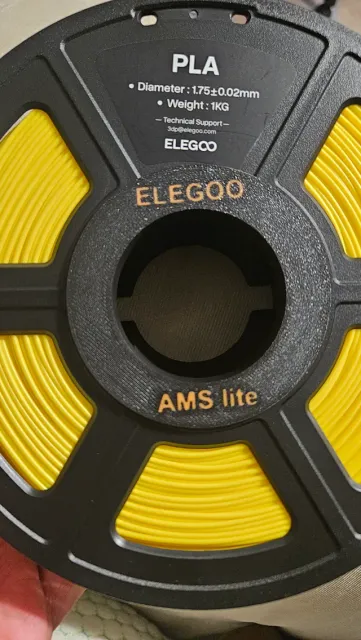

You have the option of printing the plain adapter or one with the wording ELEGOO and AMS lite. You have the option to pick which one you want to print by selecting the plate.

On A1,

-Plain adapter = 39.21g and time 1h26m

-Adapter w/ text = 41.90g and time 1h28m

-4Wall adapter = 60g and time 2h

-PETG adapter = 41g and 2h

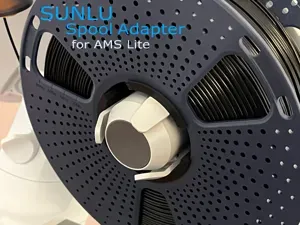

Made this remix from BradCad's Sunlu Spool adapter.

Руководства и профили печати

Профили печати и шаги

Plain Adapter - 0.2mm layer, 2 walls, 15% infill Plain adapter with no text and single color

Set at the

.Standard 0.2mm layer

.2 Walls

.15% Infill

Infill pattern set to Gyroid.

Adapter with Text - 0.2mm layer, 2 walls, 15% infill Adapter with Text - uses two colors

Set at the

.Standard 0.2mm layer

.2 Walls

.15% Infill

Infill pattern set to Gyroid.

PETG - 0.2mm layer, 2 walls, 20% infill PETG Filament - Plain adapter with no text and single color

Set at the

.Standard 0.2mm layer

.2 Walls

.20% Infill

Infill pattern set to Gyroid.

Material Saver for Smart Reinforcement / Optimized Strength I noticed others suggest increasing wall loops for added strength, but that uses significantly more filament. Instead of wasting plastic on the whole model, this profile uses a modifier to increase to 3 walls and 40% infill only at the base of the neck (the potential failure point). It makes the part quite strong and added only about ~1g of filament.
