AMS Dryer - eSUN eBOX Lite

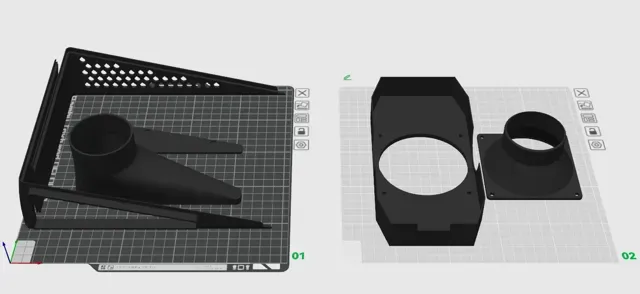

A rework of the AMS drying chock to ensure compatibility with the eSUN eBOX Lite , along with the addition of a chock cover for storage purposes.

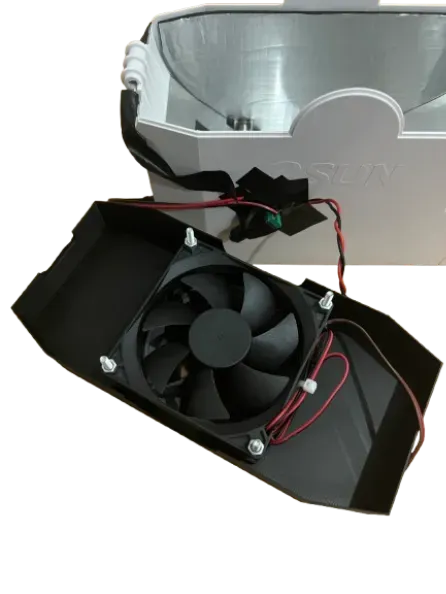

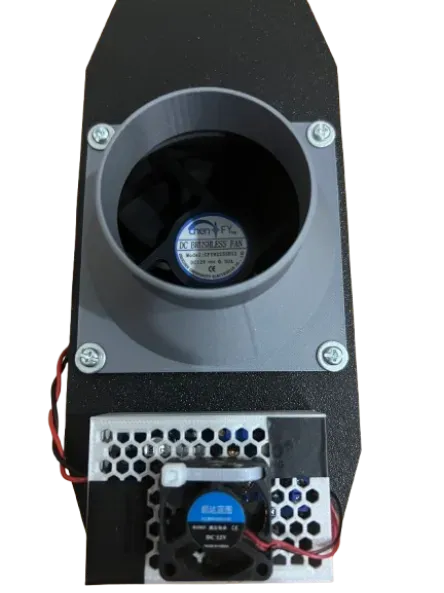

The heat from the dryer will be transferred to the AMS using a 90x90x25mm fan .

The system using a power splitter and a buck converter that steps down the dryer’s main adapter voltage from 24V to 12V for the fan.

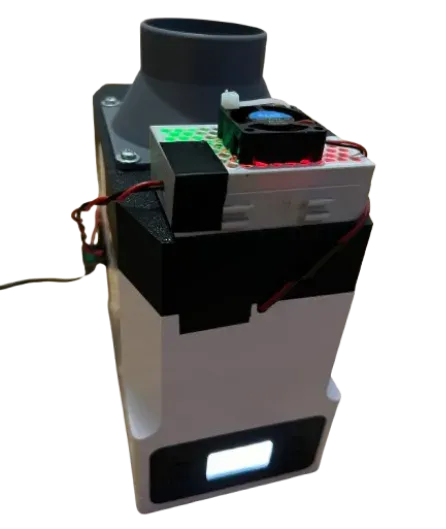

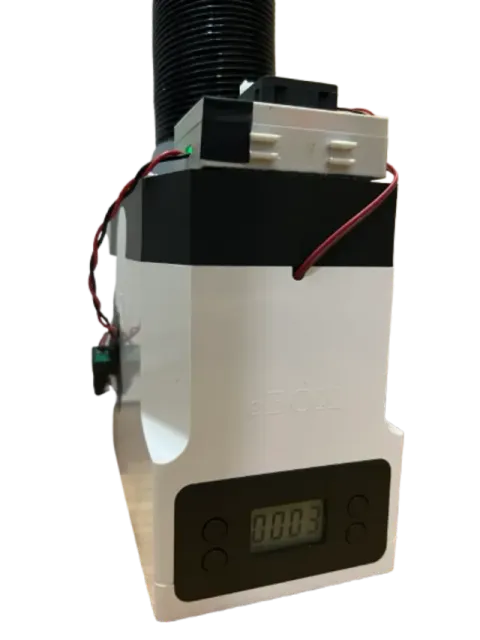

Before using the dryer:

After using the dryer:

Wiring diagram:

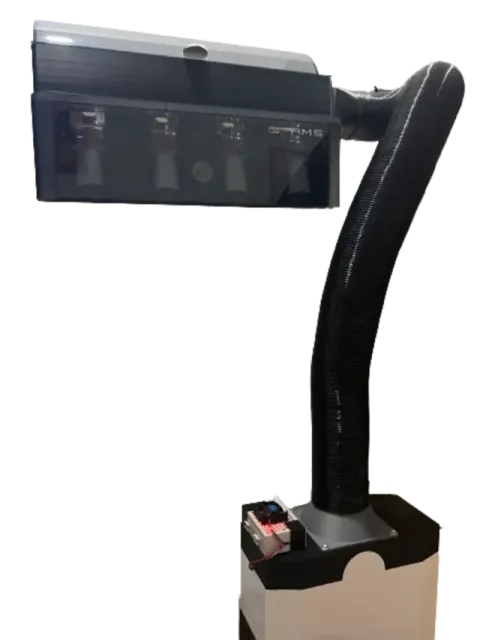

Addition part: 1 x Diesel Heater Ducting - 60mm

2 x Barrel connector - 1 male & 1 female

4 x M4 screw - 40mm & M4 hex nuts
