High Speed Propeller Launcher

Площадка: MakerWorld
Цена: Бесплатно
Лицензия: PRIVATE-USE; Только для личного использования: печатать для себя, без продажи и распространения.
Форматы: ZIPSTEP

17 647 Лайки
54 334 Загрузки
28 649 Напечатали
36 649 В подборках
11 413 Бусты
11 304 Комментарии
0 Просмотры

Автор:Lukas Hannert

Опубликована 07.09.2024

Скачать на

MakerWorld

Описание

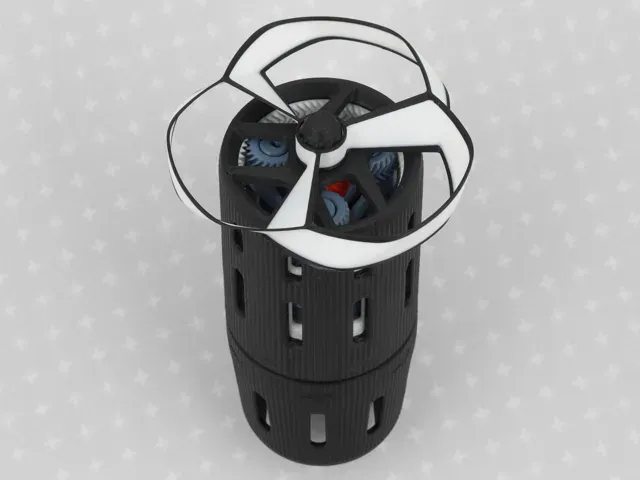

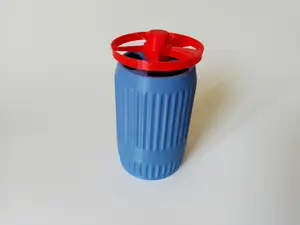

High Speed Propeller Launcher

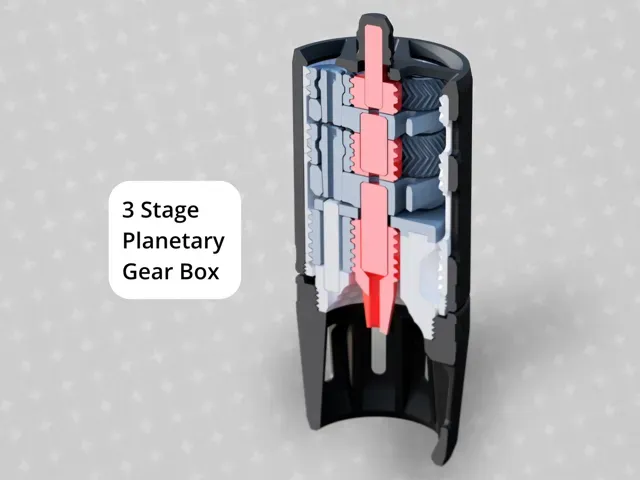

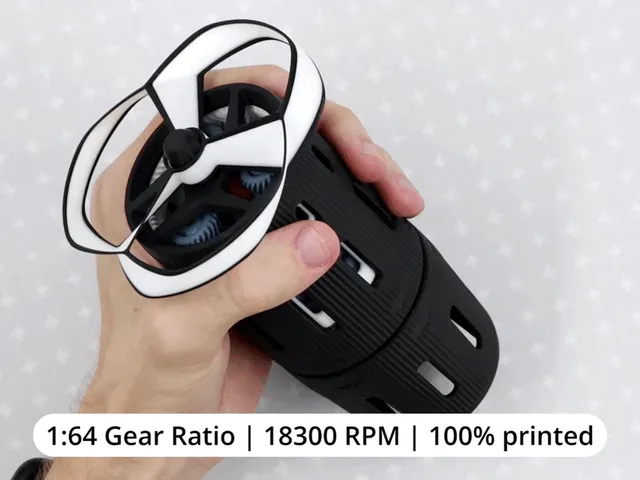

- Three stage herringbone planetary gear box with a 1:64 gear ratio.

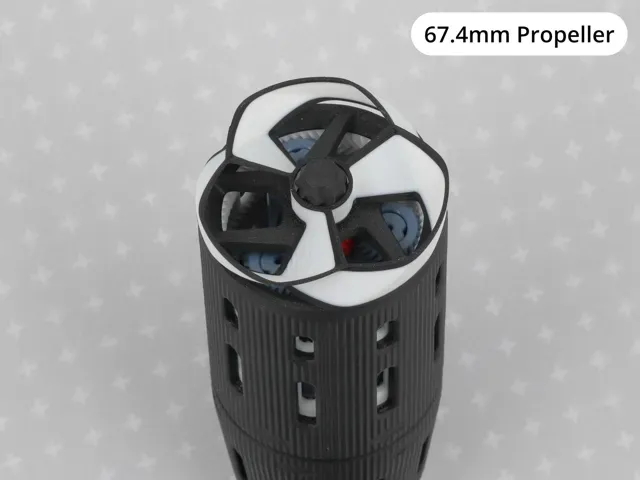

- Up to 18300 RPM with the 67.4mm propeller. - No tools required for assembly - everything is a press fit (to fully disassemble you just need a 2-3mm pin punch). - Customizable propellers - download the “Propeller Blank” file and use CAD to model your own propeller design!

Assembly

Tip: A few drops of oil will make the gears run smoother.

FAQ

- What can I do if it doesn't turn smoothly even though I added lubricant?

First check if all Gear Axles and Planetary Carriers are inserted all the way vertically. Sometimes it requires a lot of force to push them all the way in. If the issue still persists, check the teeth of the gears for any print imperfections and remove them. You can also use a power drill to spin the output shaft for a couple minutes to smoothen the flanges.

- Can I sell prints of it online?

Yes! Subscribe to the commercial license Patreon tier or scroll further up on this page and join to be a member on MakerWorld and you're good to go :)

- What are the three spinning pins at the bottom side for?

It's just for the optical design and has no further functional use.

- Can I post videos about the launcher online?

Yes, absolutely! Please just make sure to leave credit.

- Where can I find all STL files if I don't have Bambu Studio or the STEP file for the propeller blank?

Select Download STL/CAD Files from the dropdown menu of the green button. Look for the .zip files if you need STLs.

- Is there any need for support material on any parts?

No, but if using custom slicer settings I recommend to not exceed a layer height of half your nozzle diameter. This is for better overhang capabilities.

- I'm having too much fun playing with this even though I'm not a kid anymore. Is everything ok with me?

YES.

Changelog

Update 24/12/24:

Affected Profiles:

- Complete Set | Small Propeller Launcher - A1 Mini Complete Set | Small Propeller Launcher - Complete Set | Propeller Launcher - A1 Mini Complete Set | Propeller Launcher Changes:

- Improved optical design of the Upper and Lower Housing. The function is not affected. Update 16/11/24:

Affected Profiles:

- Complete Set | Small Propeller Launcher - A1 Mini Complete Set | Small Propeller Launcher Changes:

- Improved clearances on Stage 1 Planetary Carrier, Planetary Carrier Top Cap and Planetary Gears. Update 08/11/24:

Affected Profiles:

- Complete Set | Small Propeller Launcher - A1 Mini Complete Set | Small Propeller Launcher - Complete Set | Propeller Launcher - A1 Mini Complete Set | Propeller Launcher Changes:

- Added a 75% version with adjusted tolerances. It uses the same output shaft so you can use the same propellers on it. - Slight geometrical modifications to the Stage 2 and 3 Planetary Carriers. By this the likelihood of jams and excessive friction is reduced. Update 07/11/24:

Affected Profiles:

- All profiles Changes:

- Added all model data as STL files. Update 26/09/24:

Affected Profiles:

- Complete Set | Propeller Launcher - A1 Mini Complete Set | Propeller Launcher Changes:

- Added a fourth color to the design. - Divided the Internal Toothing into two separate parts to make the assembly easier. The assembly manual has been updated accordingly. - Increased clearance for press fit parts to make assembly easier. - Increased clearance for moving parts and increased flank play for gears to fix the issue of users having trouble to get it running smoothly. - Reduced Z-clearance for the Stage 1 Planetary Gears to make the Lower Housing feel less wobbly and better guided. - Equipped brims to some more parts to make this safely printable on bedslingers as well. - Enlarged and reshaped groove on the Stage 2 and 3 Planetary Axles for easier assembly and a more hidden Z-seam. - Added a second chamfer to the Stage 1 Planetary Axles to make them installable in both orientations. - Minor optical changes to the Lower Housing. - Minor optical changes to the Stage 2 and 3 Planetary Gear Axles.

Safety notice

- Only use the launcher outdoors.

- Keep a safe distance from others and avoid aiming at people, animals or fragile objects.

Руководства и профили печати

Профили печати и шаги

Complete Set | Propeller Launcher Note:

- This is an advanced level print! Precise printing is required. I recommend using a Bambu Lab Printer. - Be sure to have your K-Factor set right (or else it might not run smoothly). - Use Bambu Lab PLA Basic for the gears. High enough accuracy can't be guaranteed for any other filaments. Don't use PLA Matte! Used Filament:

- PLA Basic Blue Grey - PLA Basic Jade White - PLA Basic Red - PLA Matte Charcoal

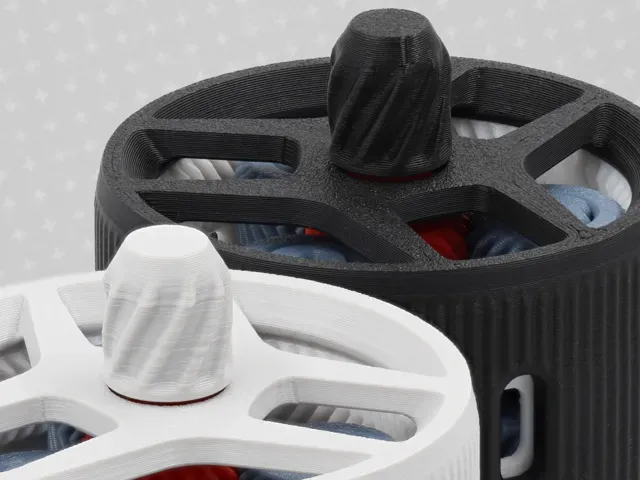

Complete Set | Small Propeller Launcher This is a 75% scale version. Its adapter has remained unchanged so you can still fit the same propellers!

Note:

- PLA Basic Blue Grey - PLA Basic Jade White - PLA Basic Light Grey - PLA Basic Red - PLA Matte Charcoal

Mod | Extended Adapter Made to shoot two propellers at once!

Used Filament:

- PLA Matte Charcoal

Propeller | The plane that works differently Flies way worse but looks cool.

- Carefully designed to make imaginary passengers vomit.

Used Filament:

- PLA Basic Jade White - PLA Matte Charcoal

Propeller | Oversized propellers Sizes:

- 130mm - 150mm - 170mm Used Filament:

- PLA Basic Jade White - PLA Matte Charcoal

A1 Mini Complete Set | Propeller Launcher Specifically made for the A1 Mini.

Note:

- PLA Basic Blue Grey - PLA Basic Jade White - PLA Basic Red - PLA Matte Charcoal

A1 Mini Complete Set | Small Propeller Launcher This is a 75% scale version. Its adapter has remained unchanged so you can still fit the same propellers!

Note:

- PLA Basic Blue Grey - PLA Basic Jade White - PLA Basic Light Grey - PLA Basic Red - PLA Matte Charcoal

Spinning Top V2 Designed for easy printability without supports, holes for saving material, and distributing the weight to the outside (SOLID Version) for better stability and spin duration.

Print this solid. The voids are there by design to keep the weight on the outside, so I chose 30 wall loops to make sure it´s all filled. You can also fill 100% infill, but I saw the print time is a bit longer, so I went with the walls in the provided print profile.

0.4mm Nozzle 0.2mm Standard Profile with No Supports, No Brim

Also check out my other Models…

[PETG] Complete Set | Propeller Launcher + Extended Adapter PETG profile for durability over repeated use. It feels smoother and has a softer touch for smaller hands.

This is a considerably long print, please ensure your filament is fully dried before attempting to avoid stringing which causes installation errors!

- Print the propellers in PLA, it seems to fly better. - NO BRIM, NO SUPPORT

Cap Spacer Should be press fit. If not, use a small amount of glue.

PLA or PETG

(Reminder to lubricate the spacer contact area too)

Spinning Top for Launcher - 0.2mm layer, 3 walls, 70% infill I had printed the “ High Speed Propeller Launcher ” model by Lucas Hannert, and I also printed the “ Toroidal Launcher ” by Brent Peterson. I think both of them are great outdoor toys, but wanted to be able to enjoy them indoors as well. KSKN modeled the " Spinning Top for Toroidal Launcher ”, and I couldn't find a spinning top for the High Speed Propeller Launcher. So… I remixed KSKN's model to fit the hub on Lucas's model, and produced this Spinning Top for High Speed Propeller Launcher . I hope you enjoy it! It needs to have supports enabled to print properly. I had success using a Bambu X1 Carbon with Creality Ender PLA filament. Hybrid tree supports are enabled. I set the infill to 70% to give the top some weight to maintain momentum and achieve a longer spin time. Feel free to experiment with more or less infill.

Portable Organizer 15x| 0.2mm layer, 2 walls, 15% infill

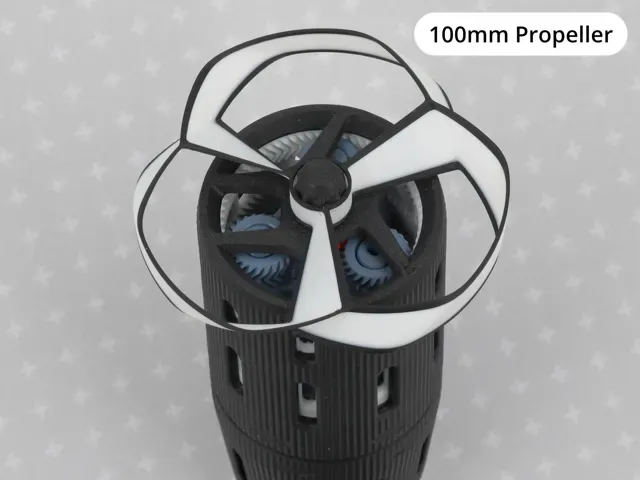

Optimized Propellor 100mm A1 Mini Optimized 100mm propellor for A1 Mini
